Pass & Seymour

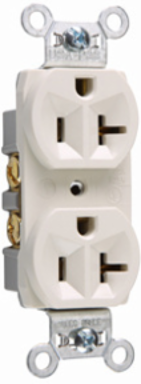

Pass & Seymour CR20LA 20A 125V Commercial Duplex Receptacle, Side Wire, Light Almond, 1.322 Inch Width, 2.635 Inch Height

20A 125V Commercial Duplex Receptacle, Side Wire, Light Almond, 1.322 Inch Width, 2.635 Inch Height
  • MPN: CR20LA
  • UPC: 785007608045
  • PPN: P-S-CR20LA

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$6.98/ EA

Description

Commercial Spec Grade Duplex Receptacle, Side Wire 20A 125V

Features

  • Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and thermoplastic back body.
  • Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact

Specifications

Specifications

Depth
0.78 in
Color
Light Almond
Width
1.322 in
Product Line
Pass & Seymour
Standard
UL 498
Mounting Type
Box
Indoor/Outdoor
Indoor
Wall Plate Included
No
Number of Receptacles
2.0
Number of Poles
Double Pole
Connection Location
Side Only
Wire Connection Type
Screw Terminals
Operating Temperature Max
60.0 °C
Operating Temperature
-40°-60°C
Height2.635 in
FinishMatte
Country of OriginMexico
Amperage20.0 A
Voltage125.0 V
Number of Wires3.0
Wire Size14 - 10 AWG
FeaturesImpact Resistant
Outlet TypeStraight Blade
Application SectorCommercial
NEMA Configuration Code5-20R
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
FeaturesSingle Piece Plated Steel Mounting Strap
