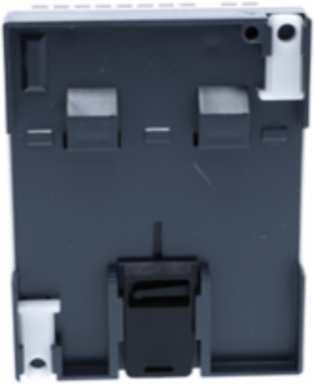

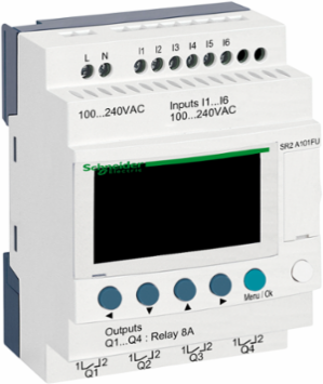

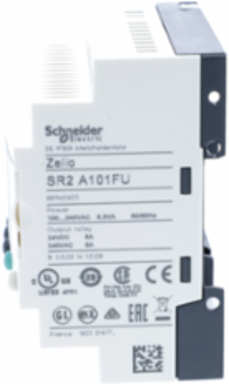

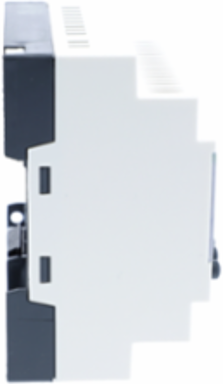

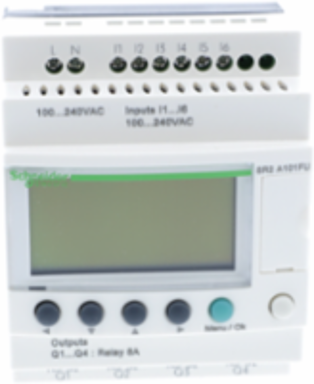

Telemecanique Sensors SR2A101FU Zelio Logic Compact Smart Relay, 10 IO, 100-240V AC, LCD Display
- MPN: SR2A101FU
- PPN: SCH-SR2A101FU
CAD
$233.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Zelio Logic SR2 compact smart relay / programmable controller uses a supply voltage of 100V to 240V alternating current. It has 10 inputs / outputs with screw-clamp terminals and has an integrated LCD display. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Zelio Logic
Product Or Component Typecompact smart relay
Complementary
- Contacts Type And Composition
- NO relay output
- Discrete Input Frequency
- 47...53 Hz || 57...63 Hz
- Output Thermal Current
- 8 A for all 4 outputs relay output
- Number Or Control Scheme Lines
- 0-240 ladder
- Clock Drift
- 12 min/year 0-55 °C || 6 s/month 25-25 °C
- Discrete Input Current
- 0.6 mA
- Response Time
- 50 ms ladder from state 0 to state 1)discrete input || 50 ms ladder from state 1 to state 0)discrete input || 50...255 ms FBD from state 0 to state 1)discrete input || 50...255 ms FBD from state 1 to state 0)discrete input || 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output
- Local Display
- with
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-1 and EN/IEC 60664-1
- Output Voltage Limits
- 5...30 V DC relay output) || 24...250 V AC
- Connections - Terminals
- screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
- Voltage State 1 Guaranteed
- >= 79 V discrete input
- Supply Voltage Limits
- 85-264 V
- Mechanical Durability
- 10000000 cycles relay output
- Tightening Torque
- 0.5 N.m
- Switching Capacity In Ma
- >= 10 mA 12 V relay output)
- Operating Rate In Hz
- 0.1 Hz at Ie)relay output || 10 Hz no load)relay output
- Cycle Time
- 6-90 ms
- [Us] Rated Supply Voltage
- 100...240 V AC
Input Impedance350 kOhm discrete input
Number Of Outputs4 relay
Discrete Input Voltage100...240 V AC
Backup Time10 years 25 °C
Power Consumption In Va7 VA without extension
Current State 1 Guaranteed>= 0.17 mA discrete input)
Clockwithout
Net Weight0.25 kg
Voltage State 0 Guaranteed<= 40 V discrete input
Electrical DurabilityAC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1 || AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1
Analogue Input Number0
Current State 0 Guaranteed<= 0.5 mA discrete input)
Overvoltage CategoryIII IEC 60664-1
Maximum Supply Current30 mA 240 V without extension) || 80 mA 100 V without extension)
Isolation Voltage1780 V
Protection Typeagainst inversion of terminals (control instructions not executed)
Discrete Input Number6
Supply Frequency50/60 Hz
Checksprogram memory on each power up
Environment
- Product Certifications
- C-Tick || CSA || GL || UL || GOST
- Disturbance Radiated/Conducted
- class B EN 55022-11 group 1
- Immunity To Microbreaks
- 10 ms
- Ip Degree Of Protection
- IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
- Ambient Air Temperature For Storage
- -40-70 °C
- Maximum Altitude Transport
- 3048 m
StandardsIEC 61000-4-6 level 3 || IEC 61000-4-11 || IEC 61000-4-3 || IEC 61000-4-12 || IEC 61000-4-4 level 3 || IEC 61000-4-5 || IEC 60068-2-6 Fc || IEC 61000-4-2 level 3 || IEC 60068-2-27 Ea
Ambient Air Temperature For Operation-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Environmental CharacteristicEMC directive IEC 61000-6-2 || EMC directive IEC 61000-6-3 || EMC directive IEC 61000-6-4 || EMC directive IEC 61131-2 zone B || low voltage directive IEC 61131-2
Pollution Degree2 IEC 61131-2
Relative Humidity95-95 % without condensation or dripping water
Operating Altitude2000 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2011013EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI2011013EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
