Schneider Electric K2F003ULH Cam Changeover Switch, 3 Poles, 20A, 45mm x 45mm, Multifixing
- MPN: K2F003ULH
- PPN: SCH-K2F003ULH
CAD
$90.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

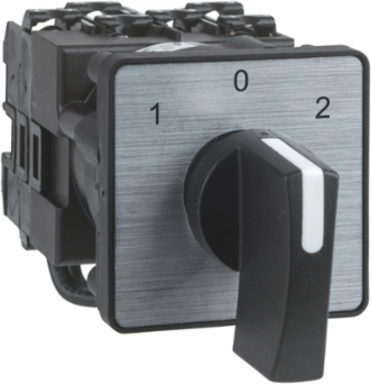

This Harmony K2 complete cam switch/selector switch has 3 poles (3P). It also has a rating of 20A, a screw clamp mounting mode and a metallic color with black marking. It has "2 - 0 - 1" marking to indicate the position of the switch. This metal head complete cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 45 degree between its switching positions.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony K
- Presentation Of Legend
- with metallic, 2 - 0 - 1 black
- Product Or Component Type
- complete cam switch
- Cam Switch Function
- changeover switch
- Type Of Operator
- black handle 35 mm
- Cam Switch Head Type
- with front plate 45 x 45 mm
- Poles Description
- 3P
- Return
- without
Fixing Modemultifixing
Ip Degree Of ProtectionIP40 conforming to IEC 60529
[Ith] Conventional Free Air Thermal Current20 A
Component NameK2
Switching Positionsright: 0° - 45° || left: 0° - 315°
Product Mountingfront mounting
Rotary Handle Padlockingwithout
Off Positionwith Off position
Complementary
- Short-Circuit Protection
- 20 A cartridge fuse gG
- Net Weight
- 0.17 kg
- Cad Overall Height
- 45 mm
- Electrical Connection
- captive screw clamp terminals flexible 2 x 1.5 mm² || captive screw clamp terminals solid 1 x 2.5 mm²
- Maximum Operating Rate
- 2.5 cyc/mn AC-21 || 2.5 cyc/mn AC-23 || 2.5 cyc/mn AC-3 || 8.333 cyc/mn AC-15
- [Ui] Rated Insulation Voltage
- 690 V 3)IEC 60947-1
- Contact Operation
- slow-break
- Cad Overall Width
- 45 mm
[Ithe] Conventional Enclosed Thermal Current16 A
[Uimp] Rated Impulse Withstand Voltage4 kV in isolating function || 6 kV IEC 947-1
Switching Angle45 °
Electrical Durability200000 cycles AC-23 || 200000 cycles AC-3 || 600000 cycles AC-15 || 600000 cycles AC-21
Short-Circuit Current10000 A
Positive Openingwith
Mechanical Durability1000000 cycles
Cad Overall Depth97 mm
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Shock Resistance
- 30 gn IEC 68-2-27
- Standards
- IEC 60947-3 power circuit || IEC 60947-5-1 control circuit || CENELEC EN 50013
- Electrical Shock Protection Class
- class II IEC 536 || class II
Vibration Resistance5 gn 10-150 Hz)IEC 68-2-6
Product CertificationsCSA 240 V 3 hp 3 phases 2 || UL 240 V 0.33 hp 1 phase 2 || CSA 240 V 1 hp 1 phase || UL 240 V 1 hp 3 phases
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP071103EN_V1
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
