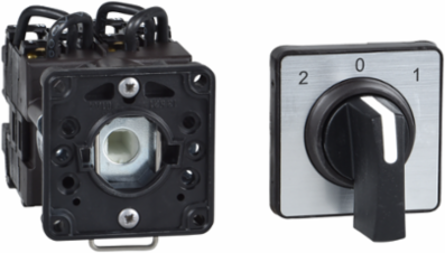

Schneider Electric K2F003UCH Harmony K Cam Changeover Switch, 3 Poles, 20A, Ø 22mm, IP65
- MPN: K2F003UCH
- PPN: SCH-K2F003UCH
CAD
$114.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Engineered for versatility and robust performance, the Harmony K Cam Changeover Switch from Schneider Electric is an essential component for automation and control applications. With a capacity of 20A and designed for three poles, this switch ensures reliable operation in various environments. Its IP65 rating guarantees protection against dust and water, making it suitable for demanding industrial settings. The 22mm diameter adds to its streamlined design, allowing for easy integration into control panels or equipment. This cam switch is a reliable choice for those seeking efficiency and durability in their control systems.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Short-Circuit Current
- 10000 A
- Poles
- 3P
- Switching Positions
- Right: 0° - 45°, Left: 0° - 315°
- Mechanical Durability
- 1,000,000 cycles
- Electrical Connection
- Captive screw clamp terminals flexible 2 x 1.5 mm², solid 1 x 2.5 mm²
- Positive Opening
- With
- Diameter
- 22 mm mounting hole diameter
- Handle Color
- Black
- Weight
- 0.19 kg
- Product Certifications
- CSA, UL
- Ambient Air Temperature for Operation
- -25 to 55 °C
- Shock Resistance
- 30 gn IEC 68-2-27
- Electrical Shock Protection Class
- Class II IEC 536
- Sustainable Offer Status
- Green Premium product
Conventional Enclosed Thermal Current16 A
Voltage690 V
Switch TypeCam changeover switch
Switching Angle45°
Electrical Durability200,000 cycles AC-23, 200,000 cycles AC-3, 600,000 cycles AC-15, 600,000 cycles AC-21
Contact OperationSlow-break
Dimensions (W x H x D)45 x 50 x 69 mm
Handle Size35 mm
MountingFront mounting
StandardsIEC 60947-3, IEC 60947-5-1, CENELEC EN 50013
IP RatingIP65 conforming to IEC 60529
Ambient Air Temperature for Storage-40 to 70 °C
Vibration Resistance5 gn 10-150 Hz IEC 68-2-6
Protective TreatmentTC
RoHS CompliancePro-active compliance
