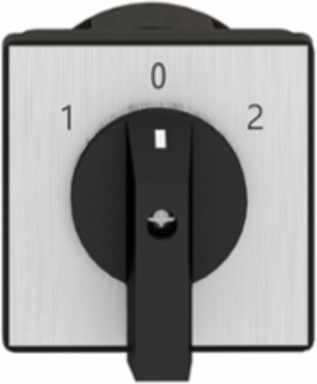

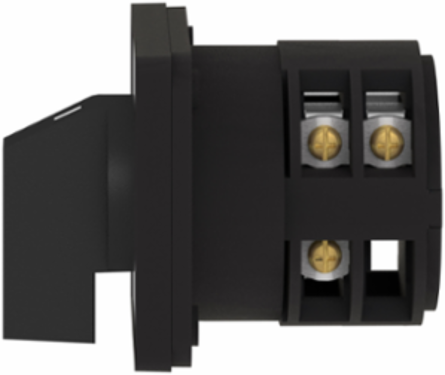

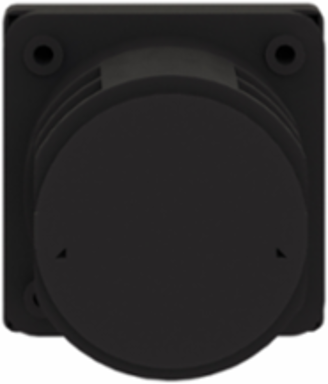

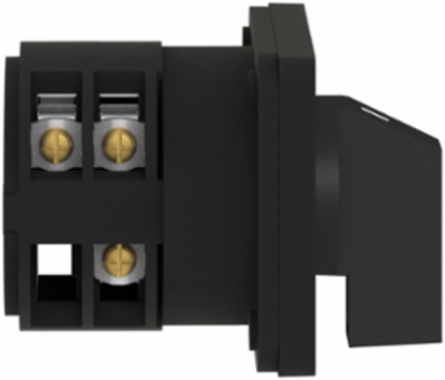

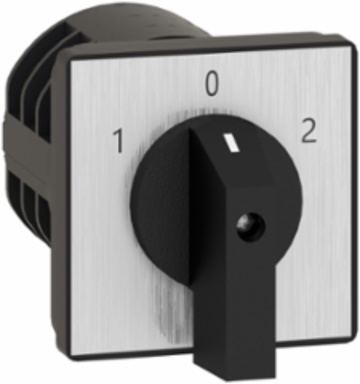

Schneider Electric K30H004UP Complete Cam Switch 4 Poles 32A 64x64mm Front Mounting
- MPN: K30H004UP
- PPN: SCH-K30H004UP
CAD
$196.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony K30 complete cam switch/selector switch has 4 poles (4P). It also has a rating of 32A, a screw clamp mounting mode and a metallic color with black marking. It has "1 - 0 - 2" marking to indicate the position of the switch. This metal head complete cam switch/selector switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 60 degree between its switching positions.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony K
- Presentation Of Legend
- with metallic, 1 - 0 - 2 black
- Product Or Component Type
- complete cam switch
- Cam Switch Function
- changeover switch
- Type Of Operator
- black handle
- Switching Positions
- left: 0° - 300° || right: 0° - 60°
- Poles Description
- 4P
- Return
- without
Fixing Mode4 holes
Ip Degree Of ProtectionIP40 conforming to IEC 60529
[Ith] Conventional Free Air Thermal Current32 A
Component NameK30
Mounting Locationfront
Cam Switch Head Typewith front plate 64 x 64 mm
Rotary Handle Padlockingwithout
Off Positionwith Off position
Complementary
- Short-Circuit Protection
- 50 A cartridge fuse gG
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN 947-1 || 6 kV IEC 947-1
- Switching Angle
- 60 °
- Short-Circuit Current
- 5000 A
- Positive Opening
- with
- Contact Operation
- slow-break
- Switching Capacity In Ma
- 11000 mA DC 120 V 2 inductive 50 ms) || 11000 mA DC 180 V 3 inductive 50 ms) || 11000 mA DC 60 V 1 inductive 50 ms) || 1200 mA DC 220 V 1 resistive 1 ms) || 1200 mA DC 440 V 2 resistive 1 ms) || 1200 mA DC 660 V 3 resistive 1 ms) || 16000 mA DC 140 V 3 inductive 50 ms) || 16000 mA DC 48 V 1 inductive 50 ms) || 16000 mA DC 95 V 2 inductive 50 ms) || 23000 mA DC 120 V 2 resistive 1 ms) || 23000 mA DC 180 V 3 resistive 1 ms) || 23000 mA DC 60 V 1 resistive 1 ms) || 25000 mA DC 30 V 1 inductive 50 ms) || 25000 mA DC 60 V 2 inductive 50 ms) || 25000 mA DC 90 V 3 inductive 50 ms) || 3200 mA DC 110 V 1 inductive 50 ms) || 3200 mA DC 220 V 2 inductive 50 ms) || 3200 mA DC 330 V 3 inductive 50 ms) || 32000 mA DC 140 V 3 resistive 1 ms) || 32000 mA DC 24 V 1 inductive 50 ms) || 32000 mA DC 24 V 1 resistive 1 ms) || 32000 mA DC 48 V 1 resistive 1 ms) || 32000 mA DC 48 V 2 inductive 50 ms) || 32000 mA DC 48 V 2 resistive 1 ms) || 32000 mA DC 70 V 3 inductive 50 ms) || 32000 mA DC 70 V 3 resistive 1 ms) || 32000 mA DC 95 V 2 resistive 1 ms) || 400 mA DC 440 V 1 resistive 1 ms) || 400 mA DC 660 V 2 resistive 1 ms) || 6500 mA DC 110 V 1 resistive 1 ms) || 6500 mA DC 220 V 2 resistive 1 ms) || 6500 mA DC 330 V 3 resistive 1 ms)
- Cad Overall Depth
- 119 mm
Net Weight0.485 kg
Cad Overall Height64 mm
Electrical Connectioncaptive screw clamp terminals flexible 2 x 4 mm² || captive screw clamp terminals solid 2 x 6 mm²
[Ui] Rated Insulation Voltage690 V 3)IEC 60947-1
Tightening Torque1.2 N.m
Mechanical Durability300000 cycles
Cad Overall Width64 mm
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Standards
- IEC 60947-3
- Overvoltage Category
- class II IEC 60536 || class II NF C 20-030
Product CertificationscULus 120 V 2 hp 1 phase || cULus 240 V 5 hp 1 phase || cULus 240 V 5 hp 3 phases || cULus 480 V 20 hp 3 phases
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
