Schneider Electric K1D024MCH Harmony K Cam Voltmeter Switch 22mm 12A 4 Positions IP65 45x45mm
Schneider Electric K1D024MCH Harmony K Cam Voltmeter Switch 22mm 12A 4 Positions IP65 45x45mm
- MPN: K1D024MCH
- PPN: SCH-K1D024MCH
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$83.37/ EA
Description

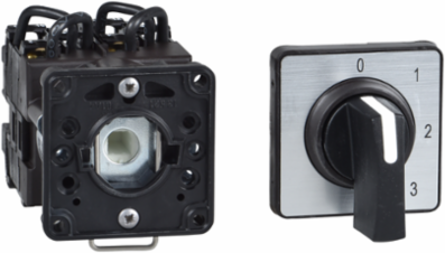

This Harmony K1 cam voltmeter switch has 3L (3P). It also has a rating of 12A, a screw clamp mounting mode and a metallic color with black marking. It has "0 - L1-L2 - L2-L3 - L1-L3" marking to indicate the position of the switch. This metal head cam voltmeter switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 45 degree between its switching positions. IP65 on its front part allows for installation in harsh (heavy) environment or outdoor.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Shock Resistance
- 30 gn IEC 68-2-27
- Standards
- IEC 60947-3 power circuit || IEC 60947-5-1 control circuit || CENELEC EN 50013
- Overvoltage Category
- class II IEC 536 || class II NF C 20-030
Vibration Resistance5 gn 10-150 Hz)IEC 68-2-6
Product CertificationsCSA 240 V 1 hp 1 phase || CSA 240 V 3 hp 3 phases 2 || UL 240 V 1 hp 3 phases || UL 240 V 0.33 hp 1 phase 2
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP071103EN_V1
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Complementary
- Short-Circuit Protection
- 16 A cartridge fuse gG
- Net Weight
- 0.16 kg
- Cad Overall Height
- 50 mm
- Electrical Connection
- captive screw clamp terminals flexible 2 x 1.5 mm² || captive screw clamp terminals solid 1 x 2.5 mm²
- Maximum Operating Rate
- 2.5 cyc/mn AC-21 || 2.5 cyc/mn AC-23 || 2.5 cyc/mn AC-3 || 8.333 cyc/mn AC-15
- [Ui] Rated Insulation Voltage
- 690 V 3)IEC 60947-1
- Contact Operation
- slow-break
- Cad Overall Width
- 45 mm
- Rated Operational Power In W
- 10500 W AC-21, 500...660 V 3 phases IEC 947-3 || 1100 W AC-3, 230 V 3 phases IEC 947-3 || 1500 W AC-23A, 230 V 3 phases IEC 947-3 || 1500 W AC-3, 400 V 1 phase IEC 947-3 || 1500 W AC-3, 400 V 3 phases IEC 947-3 || 1500 W AC-3, 500 V 3 phases IEC 947-3 || 1500 W AC-3, 690 V 3 phases IEC 947-3 || 2200 W AC-23A, 400 V 3 phases IEC 947-3 || 2200 W AC-23A, 500 V 3 phases IEC 947-3 || 2200 W AC-23A, 690 V 3 phases IEC 947-3 || 4800 W AC-21, 230 V 3 phases IEC 947-3 || 600 W AC-3, 230 V 1 phase IEC 947-3 || 8300 W AC-21, 400 V 3 phases IEC 947-3
[Ithe] Conventional Enclosed Thermal Current10 A
[Uimp] Rated Impulse Withstand Voltage4 kV in isolating function || 6 kV IEC 947-1
Switching Angle45 °
Electrical Durability1000000 cycles AC-15 || 1000000 cycles AC-21 || 500000 cycles AC-23 || 500000 cycles AC-3
Short-Circuit Current10000 A
Positive Openingwith
Mechanical Durability1000000 cycles
Cad Overall Depth59 mm
[Ie] Rated Operational Current Ac1.8 A 690 V AC-3 3 phases IEC 947-3 || 2.8 A 500 V AC-3 3 phases IEC 947-3 || 2.8 A 690 V AC-23A 3 phases IEC 947-3 || 3.3 A 400 V AC-3 3 phases IEC 947-3 || 3.8 A 500 V AC-23A 3 phases IEC 947-3 || 4.6 A 230 V AC-3 3 phases IEC 947-3 || 4.8 A 400 V AC-23A 3 phases IEC 947-3 || 5.6 A 230 V AC-23A 3 phases IEC 947-3 || 1 A 500 V AC-15 IEC 947-5-1 || 2 A 400 V AC-15 IEC 947-5-1 || 3 A 230 V AC-15 IEC 947-5-1
Specifications
- Range Of Product
- Harmony K
- Presentation Of Legend
- with metallic, 0 - L1L2 - L2L3 - L3L1 black
- Ip Degree Of Protection
- IP65 conforming to IEC 60529
- [Ith] Conventional Free Air Thermal Current
- 12 A
- Component Name
- K1
- Mounting Location
- front
- Cam Switch Head Type
- with front plate 45 x 45 mm
- Return
- without
Fixing ModeØ 22 mm hole
Type Of Measurementbetween 3 phases
Product Or Component Typecomplete cam switch
Cam Switch Functionvoltmeter switch
Type Of Operatorblack handle 35 mm
Switching Positionsright: 0° - 45° - 90° - 135°
Rotary Handle Padlockingwithout
Off Positionwith Off position
