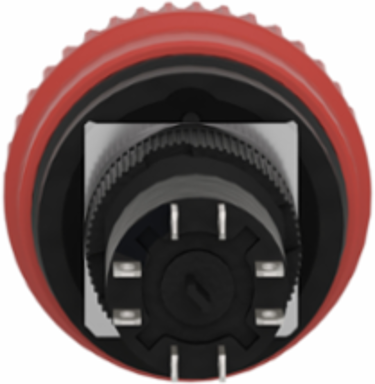

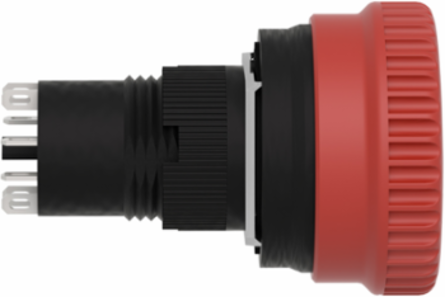

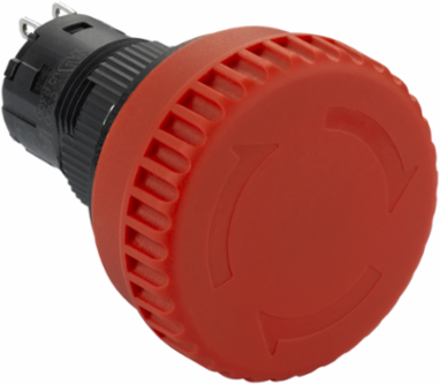

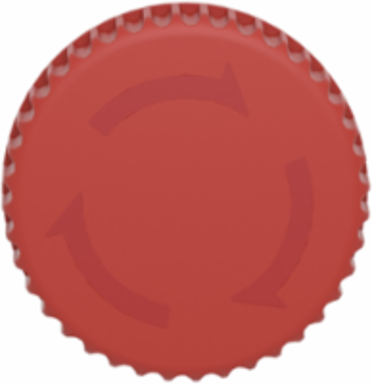

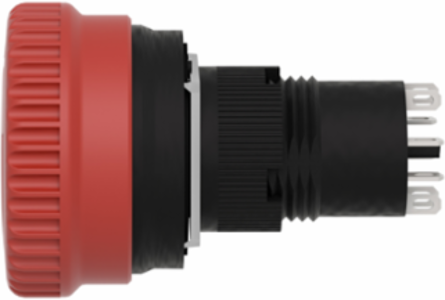

Schneider Electric XB6ETN521P Complete non illuminated mushroom head push button, Harmony XB6E, 16mm, red pushbutton 32mm, trigger turn pull to release, 2NC

Complete non illuminated mushroom head push button, Harmony XB6E, 16mm, red pushbutton 32mm, trigger turn pull to release, 2NC
Complete non illuminated mushroom head push button, Harmony XB6E, 16mm, red pushbutton 32mm, trigger turn pull to release, 2NC
Complete non illuminated mushroom head push button, Harmony XB6E, 16mm, red pushbutton 32mm, trigger turn pull to release, 2NC
Complete non illuminated mushroom head push button, Harmony XB6E, 16mm, red pushbutton 32mm, trigger turn pull to release, 2NC
Complete non illuminated mushroom head push button, Harmony XB6E, 16mm, red pushbutton 32mm, trigger turn pull to release, 2NC
  • MPN: XB6ETN521P
  • PPN: SCH-XB6ETN521P

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$75.17/ EA

    Description

    This Harmony XB6 red, complete emergency stop push button is part of the range diameter 16mm plastic, Harmony XB6 monolithic. It has a circular head shape, with a turn/pull to release mushroom, diameter 32mm, with trigger action. It features 2 NC slow break contacts and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.

    Specifications

    Complementary

    Short-Circuit Protection
    6 A fuse gG IEC 60269
    Insulation Resistance
    < 100 MOhm
    Net Weight
    0.0194 kg
    Electrical Durability
    1000000 cycles || 50000 cycles, DC-13
    [Ie] Rated Operational Current
    1.5 A 120 V, AC-12, C300 IEC 60947-5-1 || 0.3 A 120 V, AC-15, C300 IEC 60947-5-1 || 1 A 240 V, AC-12, C300 IEC 60947-5-1 || 0.3 A 240 V, AC-15, C300 IEC 60947-5-1 || 1 A 24 V, DC-12, R300 IEC 60947-5-1 || 0.7 A 24 V, DC-13, R300 IEC 60947-5-1 || 0.2 A 125 V, DC-12, R300 IEC 60947-5-1 || 0.15 A 125 V, DC-13, R300 IEC 60947-5-1
    Tightening Torque
    0.6-1 N.m
    [Ith] Conventional Free Air Thermal Current5 A
    MarkingCE
    [Uimp] Rated Impulse Withstand Voltage2.5 kV
    [Ui] Rated Insulation Voltage250 V 3)
    Mechanical Durability100000 cycles

    Offer Sustainability

    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP1710010EN
    Toxic Heavy Metal Free
    Yes
    Reach Free Of Svhc
    Yes
    China Rohs Regulation
    X
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationFree of Substances of Very High Concern above the threshold
    WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Circularity ProfileENVEOLI1710010EN

    Environment

    Product Certifications
    UR || CCC || TÜV
    Standards
    IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || GB 14048.5 || IEC 60947-5-1 || JIS C8201-1
    Vibration Resistance
    +/- 0.7 mm 10-500 Hz)
    Ambient Air Temperature For Storage
    -40-70 °C
    Ambient Air Temperature For Operation-10-55 °C
    Shock Resistance500 m/s²mechanical durability
    Ip Degree Of ProtectionIP65 IEC 60529

    Specifications

    Reset
    pull to release || turn to release
    Mounting Diameter
    16 mm
    Connections - Terminals
    solder terminal <= 0.75 mm² AWG 19
    Shape Of Signaling Unit Head
    round
    Bezel Material
    plastic
    Device Short Name
    XB6E
    Range Of ProductHarmony XB6E
    Type Of Operatortrigger action
    Product Or Component Typecomplete non-illuminated mushroom head push-button
    Contacts Type And Composition2 NC
    Operator Profilered mushroom Ø 32 mm
