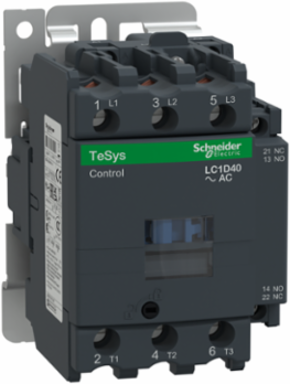

Schneider Electric LC1D40F7 TeSys Deca Contactor 3P 40A 110V AC 50/60Hz Screw Clamp Terminals
Schneider Electric LC1D40F7 TeSys Deca Contactor 3P 40A 110V AC 50/60Hz Screw Clamp Terminals
- MPN: LC1D40F7
- PPN: SCH-LC1D40F7
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$390.31/ EA
Description
Designed for efficient control in industrial applications, the Schneider Electric LC1D40F7 TeSys Deca Contactor is a robust solution for managing electrical circuits. With a rated current of 40A and compatibility with both 110V AC at 50/60Hz, this contactor is ideal for a variety of automation and control tasks. Featuring screw clamp terminals, it ensures secure and stable connections essential for reliable performance in demanding environments. This contactor exemplifies Schneider Electric's commitment to quality, making it a trusted choice for starters and contactors in automation systems.
Specifications
- Amperage
- 40 A at <= 440 V AC AC-3 for power circuit
- Maximum Horsepower
- 3 Hp at 115 V AC 60 Hz (1 phase), 5 Hp at 230/240 V AC 60 Hz (1 phase), 10 Hp at 200/208 V AC 60 Hz (3 phase), 30 Hp at 460/480 V AC 60 Hz (3 phase)
- Utilisation Category
- AC-3, AC-1, AC-4, AC-2, AC-3e
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Conventional Free Air Thermal Current
- 10 A control circuit, 60 A power circuit (at 60 °C)
- Rated Breaking Capacity
- 800 A at 440 V for power circuit conforming to IEC 60947
- Power Dissipation per Pole
- 5.4 W AC-1, 2.4 W AC-3, 2.4 W AC-3e
- Overvoltage Category
- III
- Mechanical Durability
- 6,000,000 cycles
- Inrush Power
- 140-160 VA cos phi 0.75 at 20 °C
- Heat Dissipation
- 4–5 W at 50/60 Hz for control circuit
- Maximum Operating Rate
- 3600 cycles/h at 60 °C
- Terminal Type
- Screw clamp terminals
- Tightening Torque
- Control circuit 1.7 N·m, power circuit 5 N·m
- Minimum Switching Current
- 5 mA control circuit
- Non-overlap Time
- 1.5 ms on energisation and de-energisation between NC and NO contacts
- Net Weight
- 1.4 kg (3.09 lb)
- RoHS Compliance
- Compliant, REACh SVHC free, toxic heavy metal free, mercury free, China RoHS compliant
- Warranty
- 18 months
- Fire Resistance
- 850 °C IEC 60695-2-1
- Mechanical Robustness
- Shocks 10 Gn open, 15 Gn closed; Vibrations 2 Gn open, 4 Gn closed
- Product Certifications
- CCC, CSA, GL, RINA, UL, DNV, LROS, GOST, BV
Rated Operational Voltage<= 690 V AC 25...400 Hz power circuit
Motor Power18.5 kW at 380...400 V AC 50 Hz, 22 kW at 500 V AC 50 Hz, 30 kW at 660...690 V AC 50 Hz (AC-3)
Poles3P
Pole Contact Composition3 NO
Rated Making Capacity800 A at 440 V for power circuit conforming to IEC 60947
Associated Fuse Rating10 A gG for control circuit, 80 A gG at <= 690 V for power circuit
Rated Insulation Voltage600 V CSA and UL for control and power circuit, 690 V IEC 60947-1
Rated Impulse Withstand Voltage8 kV IEC 60947
Control Circuit TypeAC 50/60 Hz
Hold-in Power Consumption13 VA 60 Hz cos phi 0.3, 15 VA 50 Hz cos phi 0.3
Operating Time4–19 ms opening, 12–26 ms closing
MountingRail, Plate
Terminal Cable Size RangeControl circuit: 1–4 mm² rigid and flexible, power circuit: 2.5–25 mm² rigid and flexible
Minimum Switching Voltage17 V control circuit
Insulation Resistance> 10 MΩ control circuit
Dimensions (HxWxD)127 mm x 75 mm x 119 mm (5.00 in x 2.95 in x 4.69 in)
Country of OriginCzech Republic
Sustainable Offer StatusGreen Premium product
Climatic WithstandIACS E10 exposure to damp heat
Flame RetardanceV1 UL 94
StandardsEN 60947-5-1, IEC 60947-5-1, EN 60947-4-1, UL 508, IEC 60947-4-1, CSA C22.2 No 14
