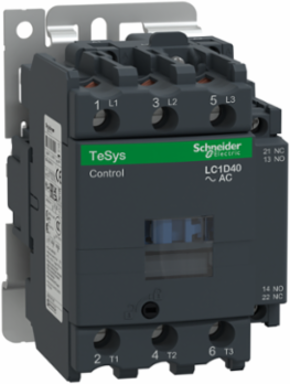

Schneider Electric LC1D40B7 TeSys Deca Contactor 3P 40A 24V AC 50/60Hz Screw Clamp Terminals
- MPN: LC1D40B7
- PPN: SCH-LC1D40B7
CAD
$413.76
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The TeSys Deca Contactor from Schneider Electric is engineered for robust performance in automation and control applications, offering reliable operation with a current handling capacity of up to 40A. Featuring a three-pole design, this contactor is compatible with 24V AC power supplies operating at 50/60Hz, making it an excellent choice for various industrial environments. Its screw clamp terminals ensure secure connections and ease of installation, matching the needs of modern electrical systems. This unit stands out for its durability and efficiency, making it an essential component for those looking to enhance their starters and contactor setups.
Features
- Engineered with a robust 40-amp inductive (AC-3) capacity and a 60-amp resistive (AC-1) rating at up to 690V, this 3-pole contactor is built to control motors up to 30 HP at 480V. It provides exceptional current management for demanding inductive loads like industrial pumps, heavy conveyors, and large ventilation systems, ensuring reliable machine cycling without premature contact wear.
- Operating on a common 24V AC 50/60 Hz control voltage, the LC1D40B7 integrates seamlessly into standard low-voltage machinery control circuits. This low-voltage coil design enhances safety at the operator control panel and matches standard industrial automation layouts, allowing for direct interfacing with safety relays and step-down control transformers.
- Outfitted with integrated, high-reliability auxiliary contacts (one normally open and one normally closed), this unit eliminates the need for expensive add-on modules. The mirroring contacts are ideal for feeding real-time status feedback into PLCs, triggering panel indicator lights, or hardwiring mechanical interlocks to prevent conflicting equipment states
- As a core component of the world-class TeSys Deca ecosystem, the LC1D40B7 mounts flawlessly alongside LRD340 thermal overload relays or GV3 manual motor starters. This modular compatibility allows panel builders to snap components together using standard DIN rail or mounting plates, minimizing enclosure footprint and drastically cutting down on point-to-point field wiring time.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Czechia, France, United States |
|---|
| Depth | 119 mm |
|---|
Complementary Attributes
| Control Circuit Type | AC 50/60 Hz, AC 50/60 Hz |
|---|---|
| Maximum Horse Power Rating | 10 hp at 230/240 V AC 60 Hz for 3 phase motors3 hp at 115 V AC 60 Hz for 1 phase motors5 hp at 230/240 V AC 60 Hz for 1 phase motors, 10 hp at 200/208 V AC 60 Hz for 3 phase motors30 hp at 460/480 V AC 60 Hz for 3 phase motors, 30 hp at 575/600 V AC 60 Hz for 3 phase motors |
| Maximum Motor Phase Current | 40 A |
| Minimum Switching Current | 5 mA for control circuit |
| Rated Breaking Capacity | 800 A at 440 V for power circuit conforming to IEC 60947 |
| Control Circuit Voltage Limits | 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz1...1.1 Uc (60-70 °C):operational AC 50/60 Hz |
|---|---|
| Irms Rated Making Capacity | 800 A at 440 V for power circuit conforming to IEC 60947140 A AC for control circuit conforming to IEC 60947-5-1 |
| Maximum Operating Rate | 3600 cyc/h at 60 °C |
| Minimum Switching Voltage | 17 V for control circuit |
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Associated Fuse Rating | 10 A gG for control circuit conforming to IEC 60947-5-180 A gG at <= 690 V coordination type 1 for power circuit, 80 A gG at <= 690 V coordination type 2 for power circuit |
| Inrush Power In Va | 140-140 VA cos phi 0.75 (at 20 °C), 160-160 VA cos phi 0.75 (at 20 °C) |
| Mechanical Robustness | shocks contactor opened 10 Gn for 11 ms)shocks contactor closed 15 Gn for 11 ms)vibrations contactor opened 2 Gn, 5...300 Hz), vibrations contactor closed 4 Gn, 5...300 Hz) |
| Mounting Support | rail, plate |
| Tightening Torque | control circuit 1.7 N.m screw clamp terminal flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminal Philips No 2power circuit 5 N.m screw terminal flat Ø 6 to Ø 8 mm, control circuit 1.7 N.m screw clamp terminal pozidriv No 2 |
| Control Circuit Voltage | 24 V |
| [Ie] Rated Operational Current | 40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 40 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| [Ui] Rated Insulation Voltage | power circuit 600 V ULpower circuit 690 V IEC 60947-1control circuit 600 V CSA, control circuit 600 V UL, power circuit 600 V CSAcontrol circuit 690 V IEC 60947-1 |
| Non-overlap Time | 1.5 ms on de-energisation between NC and NO contacts, 1.5 ms on energisation between NC and NO contacts |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 3.328416174215296, 3 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 9 kg CO2 eq., 8.921945858891672 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Compatibility Code | LC1D |
| Fire Resistance | 850 °C IEC 60695-2-1 |
| Heat Dissipation | 4-5 W at 50/60 Hz for control circuit |
| Number Of Poles | 3P |
| Overvoltage Category | III |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | TeSys |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 52 kg CO2 eq. |
| Inf Motor Phase Current | 40 A |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(3NO), a control circuit voltage 230V AC, a power circuit voltage 690V and a rated operational current 80A |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 595.68 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; FR |
| Height Nominal | 127 mm |
| [Ith] Conventional Free Air Thermal Current | 10 A (at 60 °C) for control circuit60 A (at 60 °C) for power circuit |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV IEC 60947 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490065 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Contactor Application | motor control, resistive load |
| Insulation Resistance | > 10 MOhm for control circuit, > 10 MOhm for control circuit> 10 MOhm for control circuit, > 10 MOhm for control circuit |
| Motor Power Kw | 22 kW at 500 V AC 50 Hz (AC-3e), 30 kW at 660...690 V AC 50 Hz (AC-3e), 22 kW at 1000 V AC 50 Hz (AC-3e), 22 kW at 415 V AC 50 Hz (AC-3e), 22 kW at 440 V AC 50 Hz (AC-3e), 11 kW at 220...230 V AC 50 Hz (AC-3e)18.5 kW at 380...400 V AC 50 Hz (AC-3)22 kW at 500 V AC 50 Hz (AC-3)30 kW at 660...690 V AC 50 Hz (AC-3), 22 kW at 1000 V AC 50 Hz (AC-3), 22 kW at 415 V AC 50 Hz (AC-3), 22 kW at 440 V AC 50 Hz (AC-3)11 kW at 220...230 V AC 50 Hz (AC-3), 9 kW at 400 V AC 50 Hz (AC-4), 18.5 kW at 380...400 V AC 50 Hz (AC-3e) |
| Power Dissipation Per Pole | 5.4 W AC-12.4 W AC-3, 2.4 W AC-3e |
| Utilisation Category | AC-3, AC-4, AC-2, AC-1, AC-3e |
| Certificate Agency | GL, BV, DNV, LROS (Lloyds register of shipping), RINA, UL, CCC, CSA, GOST, UKCA, CB |
| [Uc] Control Circuit Voltage | 24 V, 24 V AC 50/60 Hz |
| Connections - Terminals | control circuit: 2 1-4 mm² - cable stiffness: flexible without cable endcontrol circuit: 2 1-2.5 mm² - cable stiffness: flexible with cable endpower circuit: 2 2.5-16 mm² - cable stiffness: rigidpower circuit: 1 2.5-25 mm² - cable stiffness: flexible without cable endpower circuit: 2 2.5-16 mm² - cable stiffness: flexible without cable endpower circuit: 1 2.5-25 mm² - cable stiffness: flexible with cable endpower circuit: 2 2.5-10 mm² - cable stiffness: flexible with cable endscrew clamp terminals, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: rigid, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: rigidcontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable endpower circuit: screw clamp terminals 1 2.5-25 mm² - cable stiffness: rigid |
| Carbon Footprint Of The Distribution Phase [A4] | 0.1760063361869087, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.3 kg CO2 eq., 0.2523595925959343 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 40 kg CO2 eq., 39.799710144927516 |
| Local Publishable Date | 2026-07-07 |
| Stocking Flag | N |
| Device Type | LV equipment - LV contactor |
| Traceability | No |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1926 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Coil Technology | without built-in bidirectional peak limiting diode suppressor |
| Device Short Name | LC1D |
| Flame Retardance | V1 conforming to UL 94 |
| Mechanical Durability | 6 Mcycles |
| Operating Time | 4...19 ms opening12...26 ms closing |
| Pole Contact Composition | 3 NO |
| Product Or Component Type | contactor |
| Range Of Product | TeSys Deca |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP1102005EN |
| Pep Verification Date | 2025-11-20 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; CZ |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; FR |
| Recyclability Potential In % | 76 |
| Width Nominal | 75 mm |
| [Ue] Rated Operational Voltage | power circuit <= 690 V AC 25...400 Hz |
| Hold-in Power Consumption In Va | 13-13 VA 60 Hz cos phi 0.3 (at 20 °C)15-15 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Package Weight(Lbs) | 1.445 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Climatic Withstand | IACS E10 exposure to damp heat |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1102005EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ip Degree Of Protection | IP2X IEC 60529, IP2X VDE 0106 |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 52.47843810681733 |
| Environmental Disclosure | ENVPEP1102005EN |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-11-20 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | contactor |
|---|
| Range Of Product | TeSys Deca |
|---|
ETIM
| ETIM 8 | EC000066 |
|---|
| ETIM 9 | EC000066 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
