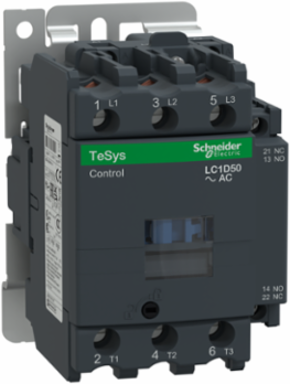

Schneider Electric LC1D50M7 TeSys Deca Contactor 3P 50A 220V AC with Screw Clamp Terminals
Schneider Electric LC1D50M7 TeSys Deca Contactor 3P 50A 220V AC with Screw Clamp Terminals
- MPN: LC1D50M7
- PPN: SCH-LC1D50M7
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$402.71/ EA
Description
The Schneider Electric LC1D50M7 TeSys Deca Contactor is engineered for seamless control in automation and industrial applications, providing reliable operation for electrical circuits. With a three-pole configuration and a current rating of 50A, this contactor enhances efficiency in power management. Designed to operate at 220V AC, it is equipped with screw clamp terminals, ensuring secure connections and facilitating installation. This contactor is an essential component for those looking to optimize their starters and contactors in various industrial settings.
Specifications
- Rated Operational Current
- 50 A at <=440 V AC AC-3 for power circuit
- Maximum Horsepower Rating
- 40 Hp at 460/480 V AC 60 Hz 3 phase motors
- Pole Contact Composition
- 3 NO
- Conventional Free Air Thermal Current
- 80 A at 60 °C power circuit, 10 A at 60 °C control circuit
- Associated Fuse Rating
- 10 A gG control circuit, 100 A gG power circuit
- Power Circuit Voltage
- <=690 V AC 25...400 Hz
- Power Dissipation per Pole
- 3.7 W AC-3, 9.6 W AC-1, 3.7 W AC-3e
- Maximum Operating Rate
- 3600 cycles/hour at 60 °C
- Hold-in Power Consumption
- 13 VA 60 Hz cos phi 0.3 at 20 °C
- Overvoltage Category
- III
- Safety Reliability Level
- B10d = 1,369,863 cycles nominal load
- Control Circuit Type
- AC 50/60 Hz
- Auxiliary Contacts Type
- Mechanically linked IEC 60947-5-1
- Minimum Switching Current
- 5 mA for control circuit
- Connections - Terminals
- Screw clamp terminals 1-4 mm² for control circuit, screw terminals 2.5-25 mm² for power circuit; rigid and flexible cable compatible
- Height
- 127 mm (5.00 in)
- Depth
- 119 mm (4.69 in)
- Material
- Flame retardant V1 UL 94
- Mechanical Robustness
- Shocks 10 Gn opened, 15 Gn closed; Vibrations 2 Gn opened, 4 Gn closed (5...300 Hz)
- IP Degree of Protection
- IP2X IEC 60529, IP2X VDE 0106
- Operating Altitude
- 0...3000 m (0...9842 ft)
Motor Power22 kW at 380...400 V AC 50 Hz (AC-3)
Poles3P
Rated Breaking Capacity900 A at 440 V for power circuit conforming to IEC 60947
Irms Rated Making Capacity900 A at 440 V for power circuit
Control Circuit Voltage220 V AC 50/60 Hz
Control Circuit Voltage Limits0.3...0.6 Uc drop-out AC 50/60 Hz; 0.8...1.1 Uc operational AC 50/60 Hz -40...70 °C
Operating Time4...19 ms opening, 12...26 ms closing
Inrush Power140 VA cos phi 0.75 at 20 °C
Rated Insulation Voltage600 V CSA/UL control circuit, 690 V IEC 60947-1 power circuit
Rated Impulse Withstand Voltage8 kV IEC 60947
Mechanical Durability6,000,000 cycles
Auxiliary Contact Composition1 NO + 1 NC
Minimum Switching Voltage17 V for control circuit
Insulation Resistance> 10 MOhm for control circuit
Tightening TorqueControl circuit 1.7 N.m, power circuit 5 N.m
Width75 mm (2.95 in)
Net Weight1.4 kg (3.09 lb)
Fire Resistance850 °C IEC 60695-2-1
ComplianceREACH SVHC Free, RoHS Compliant, PVC Free, Toxic heavy metal free, Mercury Free, China RoHS, UL, BV, GL, RINA, CSA, LROS, GOST, DNV, CCC, UKCA
Climatic WithstandIACS E10 exposure to damp heat
Country of OriginCzech Republic
