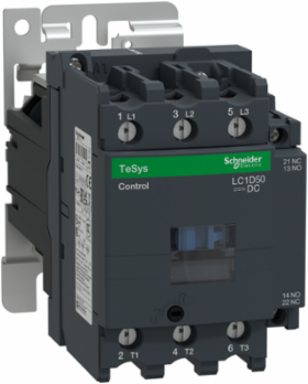

Schneider Electric LC1D50BD TeSys Deca Contactor 3 Pole 50A 24V DC Coil IP2X
- MPN: LC1D50BD
- PPN: SCH-LC1D50BD
CAD
$533.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 50A/690V AC-3/3e (22kW@400V). They can be used to create motor starters for almost any type of application. It provides a 24V DC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (75mm width), DIN-rail mounting or screw fixing. Contactor is rated for 15HP at 200 to 208VAC, 15HP at 240VAC, 40HP at 480VAC and 40HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). When used with a 480VAC up to 110A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 110A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 1.87 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France, United States
Depth176 mm
Complementary Attributes
- Control Circuit Type
- DC wide range, DC wide range
- Maximum Horse Power Rating
- 15 hp at 230/240 V AC 60 Hz for 3 phase motors, 7.5 hp at 230/240 V AC 60 Hz for 1 phase motors, 15 hp at 200/208 V AC 60 Hz for 3 phase motors40 hp at 460/480 V AC 60 Hz for 3 phase motors, 40 hp at 575/600 V AC 60 Hz for 3 phase motors3 hp at 115 V AC 60 Hz for 1 phase motors
- Maximum Motor Phase Current
- 50 A
- Minimum Switching Current
- 5 mA for control circuit
- Rated Breaking Capacity
- 900 A at 440 V for power circuit conforming to IEC 60947
Irms Rated Making Capacity900 A at 440 V for power circuit conforming to IEC 60947900 A at 440 V DC for power circuit conforming to IEC 60947, 250 A DC for control circuit conforming to IEC 60947-5-1
Control Circuit Voltage Limits0.75...1.25 Uc (-40-60 °C):operational DC1...1.25 Uc (60-70 °C):operational DC0.1...0.3 Uc (-40-70 °C):drop-out DC
Maximum Operating Rate3600 cyc/h at 60 °C
Minimum Switching Voltage17 V for control circuit
Rated Operational Power In W48 W 24 V DC-13 3000000 cycles - control circuit96 W 24 V DC-13 1000000 cycles - control circuit14 W 24 V DC-13 10000000 cycles - control circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Insulation Resistance
- > 10 MOhm for control circuit, > 10 MOhm for control circuit> 10 MOhm for control circuit, > 10 MOhm for control circuit
- Motor Power Kw
- 25 kW at 415 V AC 50 Hz (AC-3e), 30 kW at 440 V AC 50 Hz (AC-3e), 30 kW at 500 V AC 50 Hz (AC-3e), 33 kW at 660...690 V AC 50 Hz (AC-3e), 15 kW at 220...230 V AC 50 Hz (AC-3e), 30 kW at 1000 V AC 50 Hz (AC-3e), 22 kW at 380...400 V AC 50 Hz (AC-3)25 kW at 415 V AC 50 Hz (AC-3)30 kW at 440 V AC 50 Hz (AC-3), 30 kW at 500 V AC 50 Hz (AC-3)33 kW at 660...690 V AC 50 Hz (AC-3)15 kW at 220...230 V AC 50 Hz (AC-3), 11 kW at 400 V AC 50 Hz (AC-4), 30 kW at 1000 V AC 50 Hz (AC-3), 22 kW at 380...400 V AC 50 Hz (AC-3e)
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminal Philips No 2power circuit 5 N.m screw terminal flat Ø 6 to Ø 8 mm, control circuit 1.7 N.m screw clamp terminal pozidriv No 2, control circuit 1.7 N.m screw clamp terminal flat Ø 6 mm
- Control Circuit Voltage
- 24 V
- [Ie] Rated Operational Current
- 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit50 A (at <60 °C) at <= 440 V AC AC-3e for power circuit, 50 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- Connections - Terminals
- control circuit: 2 1-4 mm² - cable stiffness: flexible without cable endcontrol circuit: 2 1-2.5 mm² - cable stiffness: flexible with cable end, power circuit: 2 2.5-16 mm² - cable stiffness: rigid without cable endpower circuit: 1 2.5-25 mm² - cable stiffness: flexible without cable endpower circuit: 2 2.5-16 mm² - cable stiffness: flexible without cable endpower circuit: 1 2.5-25 mm² - cable stiffness: flexible with cable endpower circuit: 2 2.5-10 mm² - cable stiffness: flexible with cable end, control circuit: 2 1-4 mm² - cable stiffness: rigid, control circuit: 1 1-4 mm² - cable stiffness: rigidscrew clamp terminalscontrol circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: rigid without cable endcontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable endpower circuit: screw clamp terminals 1 2.5-25 mm² - cable stiffness: rigid
- Carbon Footprint Of The Distribution Phase [A4]
- 0.2725576806360515, 0.3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.4 kg CO2 eq., 0.3907958470947523
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 60 kg CO2 eq., 59.553242753623174
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1926
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Associated Fuse Rating
- 100 A gG at <= 690 V coordination type 1 for power circuit100 A gG at <= 690 V coordination type 2 for power circuit conforming to IEC 60947-5-110 A gG for control circuit conforming to IEC 60947-5-1
- Compatibility Code
- LC1D
- Device Short Name
- LC1D
- Flame Retardance
- V1 conforming to UL 94
- Mechanical Durability
- 10 Mcycles
- Number Of Poles
- 3P
- Overvoltage Category
- III
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- TeSys
- Returnability
- Yes
- Software Version
- v5.9.4
- Time Constant
- 34 ms
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1102005EN
- Pep Verification Date
- 2025-11-20
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CZ
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 76
- Width Nominal
- 85 mm
- [Uc] Control Circuit Voltage
- 24 V24 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536410045
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Mechanical Robustnessshocks contactor closed 15 Gn for 11 ms), vibrations contactor opened 2 Gn, 5...300 Hz), vibrations contactor closed 4 Gn, 5...300 Hz), shocks contactor opened 10 Gn for 11 ms)
Power Dissipation Per Pole9.6 W AC-13.7 W AC-3e, 3.7 W AC-3
Utilisation CategoryAC-2, AC-4, AC-3, AC-3e
Certificate AgencyCSA, DNV, RINA, BV, CCC, UL, GOST, GL, UKCA
[Ui] Rated Insulation Voltagepower circuit 690 V IEC 60947-1, control circuit 600 V CSAcontrol circuit 600 V ULpower circuit 600 V CSA, power circuit 600 V UL IEC 60947-1, control circuit 690 V IEC 60947-1power circuit 1000 V CSA IEC 60947-4-1
Non-overlap Time1.5 ms on energisation between NC and NO contacts, 1.5 ms on de-energisation between NC and NO contacts
Carbon Footprint Of The End-of-life Phase [C1 To C4]5.154276898714952, 5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]14 kg CO2 eq., 13.816234817123652
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Coil Technologybuilt-in bidirectional peak limiting diode suppressor
Contactor Applicationresistive load
Fire Resistance850 °C IEC 60695-2-1
Inrush Power In W19-19 W 20 °C)
Mounting Supportplate
Operating Time50 ±15 % ms closing20 ±20 % ms opening
Pole Contact Composition3 NO
Product Or Component Typecontactor
Range Of ProductTeSys Deca
Safety Reliability LevelB10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
Sustainable PackagingYes
Total Lifecycle Carbon Footprint79 kg CO2 eq.
Inf Motor Phase Current50 A
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionSwitch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(3NO), a control circuit voltage 230V AC, a power circuit voltage 690V and a rated operational current 80A
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh891.33
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal127 mm
[Ith] Conventional Free Air Thermal Current80 A (at 60 °C) for power circuit10 A (at 60 °C) for control circuit
[Ue] Rated Operational Voltagepower circuit <= 690 V AC 25...400 Hz
Hold-in Power Consumption In W7.4-7.4 W 20 °C
Package Weight(Lbs)2.169 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Climatic Withstand
- IACS E10 exposure to damp heat
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1102005EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ip Degree Of ProtectionIP2X VDE 0106, IP2X IEC 60529
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint79.18710799719258
Environmental DisclosureENVPEP1102005EN
Operating Altitude0...9842.52 ft (0...3000 m)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-11-20
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
