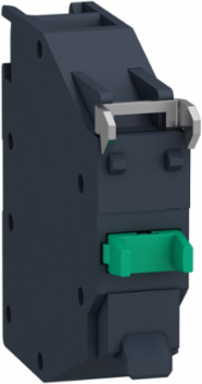

Schneider Electric ZBE101GEX Harmony XB4 ATEX D Contact Block, 1NO, Gas Protected, Screw Clamp Terminals
- MPN: ZBE101GEX
- PPN: SCH-ZBE101GEX
CAD
$58.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for safety and reliability in hazardous environments, the ZBE101GEX Harmony XB4 D Contact Block from Schneider Electric is designed to meet ATEX regulations for gas protection. Featuring a normally open (1NO) configuration, this contact block utilizes screw clamp terminals for secure and easy wiring, ensuring dependable connectivity. Ideal for various automation and control applications, it delivers consistent performance while adhering to stringent safety standards, making it an essential component for any secure industrial setup.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Physical Attributes
- Cad Overall Depth
- 42.4 mm
- Cad Overall Width
- 38 mm
Cad Overall Height10 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0023538076709282937, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.012678043357420789, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 23 %
- Contact Block Type
- single
- Contacts Type And Composition
- 1 NO
- Device Short Name
- ZBE
- Marking
- Ex db eb IIC Gb
- Mounting Of Block
- front mounting
- Operating Travel
- 1.657 mm engagement point)4.622 mm changing state point)4.452 mm total travel)
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Returnability
- Yes
- Software Version
- v6.2.5-6
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Pushbutton contact blocks are an important electrical component used in a variety of applications. They provide a way to control, monitor and switch electrical circuits on and off. This contact block consumes 0.002 W with 35% utilisation rate and the product has a life of 10 years and adhering to international standards IEC 60947-1 & IEC 60947-5-4.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Certificate Agency
- cULus
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Connections - Terminals
- screw clamp terminals, 2 x 1.5 mm² without cable endscrew clamp terminals, 1 x 2.5 mm² with cable end
- Package Weight(Lbs)
- 44.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.032689160644802664
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.1 kg CO2 eq., 0.11161200667037242
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Average Percentage Of Recycled Metal Content13 %
Compatibility CodeZBE
Contact Operationstandard
Contacts Usagegas protected contact
Environmental Characteristichazardous location class I division 2
Mechanical Durability1000000 cycles
Operating Force3.962 N
Positive Openingwithout
Product Or Component Typecontact block
Range Of ProductHarmony XB4
Sale Per Indivisible Quantity1
Sustainable PackagingNo
Total Lifecycle Carbon Footprint0.2 kg CO2 eq.
Pep CodeENVPEP2304014_V1
Pep Verification Date2024-06-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Recyclability Potential In %98
[Ie] Rated Operational Current1.9 A 380 V, AC, A600 IEC 60947-5-13 A 240 V, AC, A600 IEC 60947-5-16 A 120 V, AC, A600 IEC 60947-5-10.27 A 250 V, DC, Q300 IEC 60947-5-10.55 A 125 V, DC, Q300 IEC 60947-5-12.87 A 24 V, DC, Q300 IEC 60947-5-1
[Ui] Rated Insulation Voltage415 V
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509035
Environment Attributes Main
- Ambient Air Temperature For Operation
- -50-75 °C, -50-75 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 13 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.1593330183435242
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-09
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-50-70 °C, -50-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2304014_V1
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2304014_V1
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contact block
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
