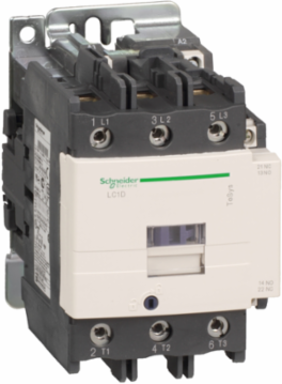

Schneider Electric LC1D95E7 TeSys Deca Non-Reversing Contactor 95A 60HP 480VAC 3-Pole 48VAC Coil
Schneider Electric LC1D95E7 TeSys Deca Non-Reversing Contactor 95A 60HP 480VAC 3-Pole 48VAC Coil
- MPN: LC1D95E7
- PPN: SCH-LC1D95E7
- UNSPSC: 39121529
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$676.86/ EA
Description
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 95A/1000V AC-3/AC-3e (45kW@400V). They can be used to create motor starters for almost any type of application. It provides a 48V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts, power connections by screw terminals and control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Contactor is rated for 25HP at 200 to 208VAC, 30HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor is supplied with a 48 VAC 50/60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 5.12 inches deep. It weighs 3.55 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Features
- Long durability with high operating rate
- Reliable performance under high environment
- Multi sdandards certified makes it possible to wide application
- Easy installation and maintenance with compact design
- Multiple and flexible mounting methods depending on exact need
Specifications
Conformance Attributes
- Product Certifications
- CCC, UL, CB Scheme, CSA, CE, UKCA, Marine, EAC
StandardsEN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, CSA C22.2 No 14, UL 60947-4-1, IEC 60335-2-40:Annex JJ, UL 60335-2-40:Annex JJ, IEC 60335-1:Clause 30.2
Complementary Attributes
- Control Circuit Voltage Limits
- 0.8...1.1 Uc (-40-55 °C):operational AC 50 Hz, 0.85...1.1 Uc (-40-55 °C):operational AC 60 Hz, 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 1...1.1 Uc (55-70 °C):operational AC 50/60 Hz
- Maximum Horse Power Rating
- 30 hp at 230/240 V AC 60 Hz for 3 phase motors, 7.5 hp at 120 V AC 60 Hz for 1 phase motors, 15 hp at 230/240 V AC 60 Hz for 1 phase motors, 30 hp at 200/208 V AC 60 Hz for 3 phase motors, 60 hp at 460/480 V AC 60 Hz for 3 phase motors, 60 hp at 575/600 V AC 60 Hz for 3 phase motors
- Maximum Motor Phase Current
- 95 A
- Minimum Switching Current
- 5 mA for signalling circuit
- Rated Breaking Capacity
- 1100 A at 440 V for power circuit conforming to IEC 60947
IRMS Rated Making Capacity1100 A at 440 V AC for power circuit conforming to IEC 60947, 140 A AC for signalling circuit conforming to IEC 60947-5-1, 250 A DC for signalling circuit conforming to IEC 60947-5-1
Control Circuit TypeAC 50/60 Hz standard
Maximum Operating Rate3600 cyc/h at 60 °C
Minimum Switching Voltage17 V for signalling circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-1, 200 A gG at <= 690 V coordination type 1 for power circuit, 160 A gG at <= 690 V coordination type 2 for power circuit
- Electrical Durability
- 1.2 Mcycles 95 A AC-3, 1.3 Mcycles 125 A AC-1, 1.2 Mcycles 95 A AC-3e
- Inrush Power In VA
- 245-245 VA 60 Hz cos phi 0.75 (at 20 °C), 245-245 VA 50 Hz cos phi 0.75 (at 20 °C)
- Mechanical Robustness
- vibrations contactor open 2 Gn, 5...300 Hz), shocks contactor open 8 Gn for 11 ms), vibrations contactor closed 3 Gn, 5...300 Hz), shocks contactor closed 10 Gn for 11 ms)
- Mounting Support
- rail, plate
- Operating Time
- 20...35 ms closing, 6...20 ms opening
- Safety Reliability Level
- B10d = 1.3 Mcycles contactor with nominal load EN/ISO 13849-1, B10d = 20 Mcycles contactor with mechanical load EN/ISO 13849-1
- Utilisation Category
- AC-3, AC-3e, AC-4, AC-1
- Ie Rated Operational Current2
- 95 A (at <60 °C) at <= 440 V AC-3 for power circuit, 125 A (at <60 °C) at <= 1000 V AC-1 for power circuit, 95 A (at <60 °C) at <= 440 V AC-3e for power circuit
- Uc Control Circuit Voltage2
- 48 V, 48 V AC 50/60 Hz
- Carbon Footprint Of The Distribution Phase A4
- 0.2186857202937272, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.3 kg CO2 eq., 0.31355370764190865
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 90 kg CO2 eq., 90.13463768115939
- Connections Terminals3
- control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end, power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end, power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 4-50 mm² - cable stiffness: solid without cable end, power circuit: connector 2 4-25 mm² - cable stiffness: solid without cable end
- Ie Rated Operational Current5
- 95 A (at <60 °C) at <= 440 V AC-3 for power circuit, 125 A (at <60 °C) at <= 1000 V AC-1 for power circuit, 95 A (at <60 °C) at <= 440 V AC-3e for power circuit
- Ui Rated Insulation Voltage5
- power circuit 1000 V IEC 60947-4-1, power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1, signalling circuit 600 V CSA, signalling circuit 600 V UL
- Local Publishable Date
- 2025-02-26
- Serviceability
- No
- Field Service Division
- PPIBS
- Legacy WEEE Scope
- In
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Average Impedance
- 0.8 mOhm - Ith 125 A 50 Hz for power circuit
- Compatibility Code
- LC1D
- Device Short Name
- LC1D
- Flame Retardance
- V1 conforming to UL 94
- Mechanical Durability
- 4 Mcycles
- Package Weight Lbs
- 1.559 kg
- Poles Description
- 3P
- Product Or Component Type
- contactor
- Range
- TeSys
- Returnability
- No
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Uimp Rated Impulse Withstand Voltage2
- 8 kV IEC 60947
- Stocking Flag
- Y
- Pep Code
- ENVPEP1102005EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Production mix; Low voltage; FR
- Uc Control Circuit Voltage5
- 48 V AC 50/60 Hz
- Uimp Rated Impulse Withstand Voltage5
- 8 kV IEC 60947
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Contactor Applicationmotor control, resistive load
Hold In Power Consumption In VA26-26 VA 60 Hz cos phi 0.3 (at 20 °C), 26-26 VA 50 Hz cos phi 0.3 (at 20 °C)
Insulation Resistance> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Motor Power KW45 kW at 380...400 V AC 50 Hz (AC-3e), 45 kW at 415...440 V AC 50 Hz (AC-3e), 55 kW at 500 V AC 50 Hz (AC-3e), 45 kW at 660...690 V AC 50 Hz (AC-3e), 25 kW at 220...230 V AC 50 Hz (AC-3), 45 kW at 380...400 V AC 50 Hz (AC-3), 45 kW at 415...440 V AC 50 Hz (AC-3), 55 kW at 500 V AC 50 Hz (AC-3), 45 kW at 660...690 V AC 50 Hz (AC-3), 15 kW at 400 V AC 50 Hz (AC-4), 25 kW at 220...230 V AC 50 Hz (AC-3e)
Non Overlap Time1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Power Dissipation Per Pole12.5 W AC-1, 7.2 W AC-3, 7.2 W AC-3e
Tightening Torquecontrol circuit 1.2 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.2 N.m screw clamp terminals Philips No 2, power circuit 12 N.m connector flat Ø 6 to Ø 8 mm, power circuit 12 N.m connector hexagonal 4 mm, control circuit 1.2 N.m screw clamp terminals pozidriv No 2
Icw Rated Short Time Withstand Current21100 A 40 °C - 1 s for power circuit, 800 A 40 °C - 10 s for power circuit, 400 A 40 °C - 1 min for power circuit, 135 A 40 °C - 10 min for power circuit, 140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit
Ith Conventional Free Air Thermal Current210 A (at 60 °C) for signalling circuit, 125 A (at 60 °C) for power circuit
Ui Rated Insulation Voltage2power circuit 1000 V IEC 60947-4-1, power circuit 600 V CSA, power circuit 600 V UL, signalling circuit 690 V IEC 60947-1
Carbon Footprint Of The End Of Life Phase C1 To C44.135516392561003, 4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A311 kg CO2 eq., 11.08540862132033
Connections Terminalsscrew clamp terminals, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end
Icw Rated Short Time Withstand Current51100 A 40 °C - 1 s for power circuit, 800 A 40 °C - 10 s for power circuit, 400 A 40 °C - 1 min for power circuit, 135 A 40 °C - 10 min for power circuit, 140 A - 100 ms for signalling circuit, 120 A - 500 ms for signalling circuit, 100 A - 1 s for signalling circuit
Ith Conventional Free Air Thermal Current510 A (at 60 °C) for signalling circuit, 125 A (at 60 °C) for power circuit
Local Data StatusPublishable
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorN
Function OptionStandard
Coil Technologywithout built-in suppressor module
Contact CompatibilityM11
Fire Resistance850 °C IEC 60695-2-1
Heat Dissipation6-10 W at 50/60 Hz
Overvoltage CategoryIII
Pole Contact Composition3 NO
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTHIEC 60068-2-30
Range Of ProductTeSys Deca
Signalling Circuit Frequency25...400 Hz
Total Lifecycle Carbon Footprint106 kg CO2 eq.
Ue Rated Operational Voltage2power circuit <= 690 V AC 25...400 Hz
Medium DescIEC contactor, TeSys Deca, nonreversing, 95A, 60HP at 480VAC, 3 phase, 3 pole, 3 NO, 48VAC 50/60Hz coil, open style
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionSwitch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(3NO), a control circuit voltage 230V AC, a power circuit voltage 690V and a rated operational current 80A
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; CZ
Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; FR
Global Commercial StatusCommercialised
Ue Rated Operational Voltage5power circuit <= 690 V AC 25...400 Hz
Environment Attributes Main
- Take Back
- Nej, No
- EU ROHS Directive
- Compliant , Compliant
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Climatic Withstand
- IACS E10 exposure to damp heat
- IP Degree Of Protection
- IP20 front face IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP1102005EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Permissible Ambient Air Temperature Around The Device-40-60 °C, -40-60 °C, 60-70 °C with derating
Reach Free SHVCYes
Toxic Heavy Metal FreeYes
Carbon Footprint105.88780212297635
Environmental DisclosureENVPEP1102005EN
Operating Altitude0...9842.52 ft (0...3000 m)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Deca
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 130 mm
