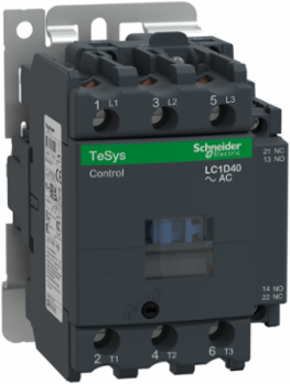

Schneider Electric LC1D40T6 TeSys Deca Contactor 3P 40A 480V AC 60Hz Screw Clamp Terminals
- MPN: LC1D40T6
- PPN: SCH-LC1D40T6
CAD
$397.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric LC1D40T6 TeSys Deca Contactor is engineered to handle demanding automation and control tasks with efficiency and reliability. Designed for use in 3-phase systems, this contactor provides robust performance at 40A and 480V AC, making it suitable for a variety of industrial applications. Equipped with screw clamp terminals, installation and maintenance become straightforward and secure. This device embodies the quality and innovation synonymous with Schneider Electric, ensuring dependable operation in NEMA starters and contactor systems.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 60 A AC-1, 40 A AC-3, 40 A AC-3e at ≤440 V AC power circuit
- Motor Power
- 18.5 kW at 380-400 V AC, 22 kW at 415-440 V AC, 11 kW at 220-230 V AC, 22 kW at 500, 660-690, 1000 V AC
- Rated Breaking Capacity
- 800 A at 440 V power circuit
- Control Circuit Voltage
- 480 V AC 60 Hz
- Impulse Withstand Voltage
- 6 kV IEC 60947
- Mechanical Durability
- 6,000,000 cycles
- Operating Temperature Range
- -40 to 70 °C at Uc; -5 to 60 °C permissible ambient air temperature
- Mounting
- Rail, Plate
- Terminal Cable Size Range
- Power circuit: 2.5–35 mm²; Control circuit: 1–4 mm²
- Height
- 127 mm (5.00 in)
- Depth
- 119 mm (4.69 in)
- Standards
- UL 508, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, CSA C22.2 No 14
- RoHS Compliance
- Compliant (including EU, China, and proactive declarations)
- Warranty
- 18 months
Maximum Horsepower Rating30 Hp at 460-480 V AC 60 Hz 3-phase motors
Voltage≤690 V AC power circuit, 480 V AC control circuit 60 Hz
Conventional Free Air Thermal Current60 A power circuit, 10 A control circuit at 60 °C
Insulation Voltage600 V CSA/UL control and power circuit, 690 V IEC 60947-1
Overvoltage CategoryIII
Mechanical Robustness10 Gn open, 15 Gn closed shocks; 2 Gn open, 4 Gn closed vibrations
IP Degree of ProtectionIP2X IEC 60529
Terminal TypeScrew Clamp Terminals
Tightening TorqueControl circuit 1.7 N·m; Power circuit 5 N·m
Width75 mm (2.95 in)
Net Weight1.4 kg (3.09 lb)
ComplianceLloyds Register, DNV, CSA, BV, GOST, CCC, RINA, UL, GL, UKCA
PVC FreeYes
