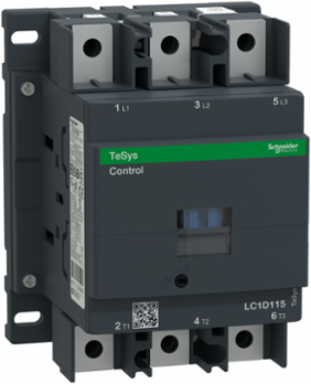

Schneider Electric LC1D1156FE7 TeSys Deca 3P Contactor, 115A, 440V, 115V AC coil, Bidirectional Diode
- MPN: LC1D1156FE7
- PPN: SCH-LC1D1156FE7
CAD
$1171.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The TeSys Deca 3P Contactor from Schneider Electric is engineered to handle demanding industrial applications with a robust design that ensures reliable performance. Featuring a 115A capacity and a 440V rating, this contactor is capable of managing heavy loads while maintaining efficiency and safety. Its 115V AC coil allows for seamless integration into various control circuits, while the inclusion of a bidirectional diode enhances its operational capabilities, providing additional protection and reliability. Ideal for automation and control systems, this contactor is a vital component for effective motor control and power distribution in your industrial setup.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 200 A AC-1, 115 A AC-3, 115 A AC-3e at <= 440 V AC for power circuit
- Maximum Horsepower Rating
- 30 Hp at 200/208 V AC, 40 Hp at 230/240 V AC, 75 Hp at 460/480 V AC, 100 Hp at 575/600 V AC
- Irms Rated Making Capacity
- 1260 A at 440 V for power circuit conforming to IEC 60947
- Rated Short-Time Withstand Current
- 250 A (10 min), 550 A (1 min), 950 A (10 s), 1100 A (1 s) at 40 °C for power circuit
- Rated Insulation Voltage
- 1000 V IEC 60947-4-1 power circuit, 690 V IEC 60947-1 signalling circuit, 600 V CSA and UL
- Pollution Degree
- 3
- Safety Reliability Level
- B10d = 684,932 cycles with nominal load, 10,000,000 cycles mechanical load EN/ISO 13849-1
- Electrical Durability
- 0.8-0.95 million cycles depending on current and AC category
- Control Circuit Voltage Limits
- 0.3-1.15 Uc depending on temperature (-40 to 70 °C)
- Coil Technology
- Built-in bidirectional peak limiting diode suppressor
- Hold-In Power Consumption
- 2-18 VA (50/60 Hz) cos phi 0.3 at 20 °C
- Operating Time
- 6-20 ms opening, 20-50 ms closing
- Pole Contact Composition
- 3 NO
- Auxiliary Contacts Type
- Mechanically linked 1 NO + 1 NC IEC 60947-5-1
- Minimum Switching Voltage
- 17 V for signalling circuit
- Insulation Resistance
- > 10 MOhm for signalling circuit
- Mounting
- Support plate, Rail
- Tightening Torque
- Control circuit 1.2 N·m; Power circuit 12 N·m
- Fire Resistance
- 850 °C IEC 60695-2-1
- IP Degree of Protection
- IP20 front face IEC 60529
- Climatic Withstand
- IACS E10, IEC 60947-1 Annex Q category D exposure to damp heat
- Operating Altitude
- 0 to 3000 m (0 to 9843 ft)
- Net Weight
- 2.5 kg (5.51 lb)
- RoHS Compliance
- Yes, with exemptions
- Warranty
- 18 months
Motor Power30 kW at 220-230 V AC, 55 kW at 380-400 V AC, 59 kW at 415-440 V AC, 75 kW at 500 V AC, 80 kW at 660-690 V AC, 65 kW at 1000 V AC (AC-3)
Rated Breaking Capacity1100 A at 440 V for power circuit conforming to IEC 60947
Conventional Free Air Thermal Current200 A at 60 °C for power circuit
Associated Fuse Rating250 A gG at <= 690 V type 1, 200 A gG at <= 690 V type 2 for power circuit; 10 A gG for signalling circuit
Overvoltage CategoryIII
Rated Impulse Withstand Voltage8 kV IEC 60947
Mechanical Durability8 million cycles
Control Circuit Voltage115 V AC 50/60 Hz
Control Circuit TypeAC 50/60 Hz
Inrush Power280-350 VA (50/60 Hz) cos phi 0.8 at 20 °C
Heat Dissipation3-8 W at 50/60 Hz
Maximum Operating Rate2400 cycles/hour at 60 °C (140 °F)
Auxiliary Contact Composition1 NO + 1 NC
Signalling Circuit Frequency25-400 Hz
Minimum Switching Current5 mA for signalling circuit
Non-Overlap Time1.5 ms on energisation and de-energisation between NC and NO contact
Connections - TerminalsControl circuit: lugs-ring terminals Ø 8 mm; Power circuit: lugs-ring terminals Ø 25 mm; Bars 5x25 mm busbar
Mechanical RobustnessVibrations open 2 Gn, closed 4 Gn (5-300 Hz); Shocks closed 15 Gn, open 6 Gn (11 ms)
Flame RetardanceV1 UL 94
Protective TreatmentTH IEC 60068-2-30
Permissible Ambient Temperature-40 to 60 °C; 60 to 70 °C with derating
Dimensions (HxWxD)158 mm x 120 mm x 136 mm (6.22 in x 4.72 in x 5.35 in)
Country of OriginCzech Republic
PVC FreeYes
Product CertificationsCSA, RINA, UL, CCC, GOST, DNV, BV, GL, Lloyd's Register of Shipping, UKCA, CE
