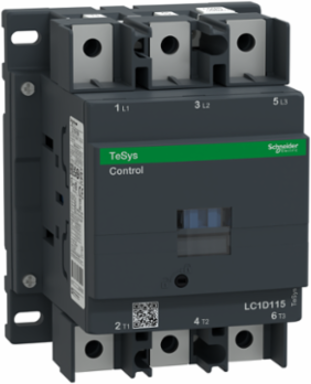

Schneider Electric LC1D1156G7 TeSys Deca Contactor 3NO 115A 120V AC 440V
Schneider Electric LC1D1156G7 TeSys Deca Contactor 3NO 115A 120V AC 440V
- MPN: LC1D1156G7
- PPN: SCH-LC1D1156G7
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1105.14/ EA
Description
The TeSys Deca Contactor from Schneider Electric is designed to provide reliable performance in demanding automation and control applications. Featuring three normally open (3NO) contacts and a robust current rating of 115A, this contactor is well-suited for various industrial uses where high-load switching is required. With a voltage compatibility of 120V AC and a maximum operating voltage of 440V, it seamlessly integrates into existing electrical systems. This product is a vital component for enhancing control circuit functionalities and ensuring efficient operation within starter and contactor setups.
Specifications
- Rated Operational Current
- 200 A AC-1 at <= 440 V, 115 A AC-3 at <= 440 V, 115 A AC-3e at <= 440 V (at <60 °C)
- Motor Power
- 30 kW at 220-230 V, 55 kW at 380-400 V, 59 kW at 415-440 V, 75 kW at 500 V, 80 kW at 660-690 V, 65 kW at 1000 V AC-3
- Thermal Current
- 200 A at 60 °C
- Breaking Capacity
- 1100 A at 440 V for power circuit conforming to IEC 60947
- Associated Fuse Rating
- 250 A gG type 1, 200 A gG type 2 at <= 690 V for power circuit
- Power Dissipation per Pole
- 24 W AC-1, 7.9 W AC-3/AC-3e
- Overvoltage Category
- III
- Rated Impulse Withstand Voltage
- 8 kV IEC 60947
- Electrical Durability
- 0.8 million cycles at 200 A AC-1 <= 440 V, 0.95 million cycles at 115 A AC-3/AC-3e <= 440 V
- Coil Technology
- Built-in bidirectional peak limiting diode suppressor
- Inrush Power
- 280-350 VA 50/60 Hz cos φ 0.8 (at 20 °C)
- Heat Dissipation
- 3-8 W at 50/60 Hz
- Maximum Operating Rate
- 2400 cycles/hour at 60 °C
- Tightening Torque
- Control circuit 1.2 N.m; Power circuit 12 N.m
- Auxiliary Contacts Type
- Mechanically linked 1 NO + 1 NC IEC 60947-5-1
- Minimum Switching Voltage
- 17 V for signalling circuit
- Insulation Resistance
- > 10 MOhm for signalling circuit
- Mounting
- Support plate, rail
- Product Certifications
- DNV, UL, CSA, LROS, GOST, GL, BV, CCC, RINA, UKCA, CE
- Protective Treatment
- TH IEC 60068-2-30
- Ambient Temperature Range
- -40 to 60 °C, 60 to 70 °C with derating
- Fire Resistance
- 850 °C IEC 60695-2-1
- Mechanical Robustness
- Vibration: 2 Gn open, 4 Gn closed; Shock: 6 Gn open, 15 Gn closed
- Net Weight
- 2.5 kg (5.51 lb)
- RoHS Compliance
- Compliant with Exemptions
Maximum Horsepower Rating30 Hp at 200/208 V, 40 Hp at 230/240 V, 75 Hp at 460/480 V, 100 Hp at 575/600 V AC 50/60 Hz for 3 phase motors
Amperage115 A
Making Capacity1260 A at 440 V for power circuit
Rated Short-time Withstand Current250 A - 10 min, 550 A - 1 min, 950 A - 10 s, 1100 A - 1 s at 40 °C for power circuit
Average Impedance0.6 mOhm - Ith 200 A 50 Hz for power circuit
Rated Insulation Voltage600 V CSA/UL, 1000 V IEC 60947-4-1 for power circuit
Pollution Degree3
Mechanical Durability8 million cycles
Control Circuit TypeAC 50/60 Hz
Control Circuit Voltage Limits0.3-0.5 Uc drop-out, 0.8-1.15 Uc operational AC 50/60 Hz from -40 to 70 °C
Hold-in Power Consumption2-18 VA 50/60 Hz cos φ 0.3 (at 20 °C)
Operating Time6-20 ms opening, 20-50 ms closing
Connection TerminalsControl circuit: lugs-ring terminals Ø 8 mm; Power circuit: lugs-ring terminals Ø 25 mm and bars 5 x 25 mm busbar cross section
Auxiliary Contact Composition1 NO + 1 NC
Signalling Circuit Frequency25-400 Hz
Minimum Switching Current5 mA for signalling circuit
Non-overlap Time1.5 ms between NC and NO contacts on energisation and de-energisation
StandardsCSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
IP Degree of ProtectionIP20 front face IEC 60529
Climatic WithstandIACS E10, IEC 60947-1 Annex Q category D exposure to damp heat
Operating Altitude0 to 3000 m (0 to 9842.52 ft)
Flame RetardanceV1 UL 94
Dimensions (HxWxD)6.22 in x 4.72 in x 5.35 in (158 mm x 120 mm x 136 mm)
Country of OriginCzech Republic (CZ)
