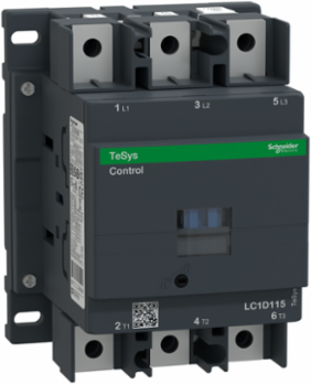

Schneider Electric LC1D1156MD TeSys Deca Contactor 3P 115A 220V DC Coil IP20
- MPN: LC1D1156MD
- PPN: SCH-LC1D1156MD
CAD
$1171.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Built for robust industrial applications, the TeSys Deca Contactor from Schneider Electric features a three-pole design with a 115A current rating and a 220V DC coil. This contactor is specially designed for reliable control in automation and control systems, ensuring optimal performance for demanding environments. With an IP20 protection rating, it is suitable for use in various starter and contactor configurations, offering durability and efficiency that industrial operations rely on. Whether utilized in motor control or other automation solutions, this contactor is an essential component for effective power management.
Documentation & Downloads
Specifications
Additional
- Amperage
- 115 A (at <60 °C) at <= 440 V AC AC-3 power circuit
- Rated Making Capacity (Irms)
- 1260 A at 440 V power circuit IEC 60947
- Voltage
- <= 1000 V AC, <= 300 V DC power circuit
- Maximum Horse Power Rating
- 30 Hp at 200/208 V AC, 40 Hp at 230/240 V AC, 75 Hp at 460/480 V AC, 100 Hp at 575/600 V AC
- Coil Voltage
- 220 V DC
- Average Impedance
- 0.6 mOhm at 200 A 50 Hz power circuit
- Rated Insulation Voltage (Ui)
- 600 V CSA/UL power circuit, 1000 V IEC 60947-4-1
- Pollution Degree
- 3
- Safety Reliability Level
- B10d = 684,932 cycles nominal load, 10,000,000 cycles mechanical load
- Electrical Durability
- 0.8 Mcycles AC-1 200 A <= 440 V, 0.95 Mcycles AC-3 115 A <= 440 V, 0.95 Mcycles AC-3e 115 A <= 440 V
- Coil Technology
- With integral suppression device
- Inrush Power
- 270-365 W at 20 °C
- Operating Time
- 20-35 ms closing, 40-75 ms opening
- Maximum Operating Rate
- 1200 cycles/hour at 60 °C
- Tightening Torque
- Control circuit 1.2 N.m, Power circuit 12 N.m
- Auxiliary Contacts Type
- Mechanically linked, IEC 60947-5-1
- Minimum Switching Voltage (Signalling)
- 17 V
- Insulation Resistance (Signalling)
- > 10 MOhm
- Mounting
- Support plate, Rail
- Width
- 120 mm (4.72 in)
- Net Weight
- 2.5 kg (5.51 lb)
- Protective Treatment
- TH IEC 60068-2-30
- Permissible Ambient Temperature
- -40 to 60 °C, 60 to 70 °C with derating
- Fire Resistance
- 850 °C IEC 60695-2-1
- Mechanical Robustness
- Vibrations open 2 Gn, closed 4 Gn; Shocks closed 15 Gn, open 6 Gn
- Mercury Free
- Yes
- Product Certifications
- GL, LROS, DNV, UL, RINA, GOST, BV, CCC, CSA, UKCA, CE
Rated Breaking Capacity1100 A at 440 V power circuit IEC 60947
Rated Short-Time Withstand Current (Icw)250 A - 10 min, 550 A - 1 min, 950 A - 10 s, 1100 A - 1 s at 40 °C power circuit
Motor Power30 kW at 220...230 V AC 50/60 Hz (AC-3), 55 kW at 380...400 V AC (AC-3), 59 kW at 415...440 V AC (AC-3), 75 kW at 500 V AC (AC-3), 80 kW at 660...690 V AC (AC-3), 65 kW at 1000 V AC (AC-3), 18.5 kW at 400 V AC (AC-4)
Poles3P
Conventional Free Air Thermal Current (Ith)200 A at 60 °C power circuit
Power Dissipation per Pole24 W (AC-1), 7.9 W (AC-3, AC-3e)
Overvoltage CategoryIII
Rated Impulse Withstand Voltage (Uimp)8 kV IEC 60947
Mechanical Durability8 Mcycles
Control Circuit TypeDC standard
Control Circuit Voltage Limits0.75-1.2 Uc (-40 to 55 °C), 0.15-0.4 Uc (-40 to 70 °C dropout), 1-1.2 Uc (55 to 70 °C) operational DC
Hold-in Power Consumption2.4-5.1 W at 20 °C
Time Constant25 ms
Terminal ConnectionsControl circuit: lugs-ring terminals (8 mm), Power circuit: lugs-ring terminals (25 mm), bars (5x25 mm)
Auxiliary Contact Composition1 NO + 1 NC
Signalling Circuit Frequency25-400 Hz
Minimum Switching Current (Signalling)5 mA
Non-overlap Time Between NC and NO Contacts1.5 ms
Height158 mm (6.22 in)
Depth136 mm (5.35 in)
Protective CoverWith
Climatic WithstandIACS E10, IEC 60947-1 Annex Q category D exposure to damp heat
Operating Altitude0 to 3000 m (0 to 9842.52 ft)
Flame RetardanceV1 UL 94
RoHSCompliant with exemptions
PVC FreeYes
