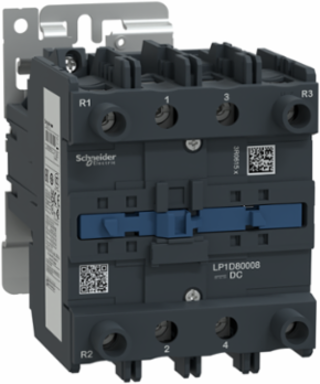

Schneider Electric LP1D80008BW TeSys Deca Contactor, 4P, 440V, 125A, 24V DC Coil
- MPN: LP1D80008BW
- PPN: SCH-LP1D80008BW
CAD
$1052.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric TeSys Deca Contactor is a high-performance solution, designed to handle demanding automation and control applications. With its four-pole configuration and a robust current rating of 125A, it operates efficiently at 440V, making it well-suited for various industrial environments. The integrated 24V DC coil ensures reliable control, enabling seamless operation and integration within starter assemblies. This contactor is an ideal choice for those who require a dependable device for managing electrical loads, providing both durability and efficiency in one compact unit.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
- Control Circuit Voltage
- 24 V DC
- Irms Rated Making Capacity
- 1100 A at 440 V for power circuit conforming to IEC 60947
- Average Impedance
- 0.8 mOhm at 125 A 50 Hz for power circuit
- Poles
- 4P (2 NO + 2 NC)
- Overvoltage Category
- III
- Rated Insulation Voltage
- 600 V CSA, 600 V UL, 1000 V IEC 60947-4-1 for power circuit
- Safety Reliability Level
- B10d = 1,369,863 cycles nominal load, 20,000,000 cycles mechanical load
- Electrical Durability
- 0.8 Mcycles at 125 A AC-1 <= 440 V
- Control Circuit Voltage Limits
- 0.1...0.3 Uc drop-out DC, 0.75...1.2 Uc operational DC (-40...55 °C)
- Hold-in Power Consumption
- 22 W at 20 °C
- Time Constant
- 75 ms
- Terminal Wire Size Range
- 1...4 mm² (control circuit), 4...50 mm² (power circuit)
- Mounting Support
- Rail, Plate
- Net Weight
- 2.91 kg (6.42 lb)
- Mechanical Robustness
- Vibrations 2-3 Gn, Shocks 8-10 Gn
- Ambient Temperature Range
- -40...60 °C operating, 60...70 °C with derating
- Product Certifications
- UL, CSA, CCC, EAC, UKCA, CB, DNV-GL, RINA, BV, LROS
- RoHS Compliance
- Compliant
- Reach Free Of Svhc
- Yes
- Mercury Free
- Yes
- Range Of Product
- TeSys Deca
- Control Circuit Type
- DC wide range
- Compatibility Code
- LP1D
Rated Operational Voltage<= 690 V AC 25...400 Hz for power circuit
Rated Breaking Capacity1100 A at 440 V for power circuit conforming to IEC 60947
Rated Short-Time Withstand Current135 A - 10 min, 320 A - 1 min, 640 A - 10 s, 990 A - 1 s at 40 °C for power circuit
Power Dissipation Per Pole12.5 W AC-1
Utilisation CategoryAC-1
Pollution Degree3
Rated Impulse Withstand Voltage8 kV IEC 60947
Mechanical Durability4 Mcycles
Coil TechnologyWithout built-in suppressor module
Inrush Power22 W at 20 °C
Operating Time6...20 ms opening, 20...35 ms closing
Maximum Operating Rate3600 cycles/hour at 60 °C
Tightening Torque1.2 N.m (control circuit), 12 N.m (power circuit)
DimensionsHeight 127 mm (5.00 in), Width 96 mm (3.78 in), Depth 196 mm (7.72 in)
Flame RetardanceV1 UL 94
Operating Altitude0...3000 m
Fire Resistance850 °C IEC 60695-2-1
StandardsCSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508
PVC FreeYes
Toxic Heavy Metal FreeYes
Safety Standard ComplianceProp 65 Compliant
Product TypeContactor
Contactor ApplicationResistive load
