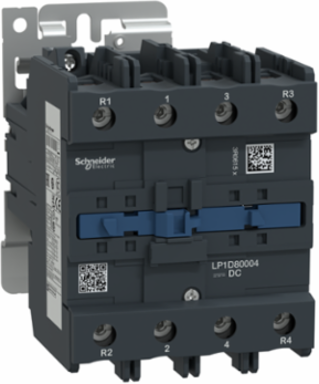

Schneider Electric LP1D80004ED TeSys Deca 4P Contactor 125A 48V DC Coil IP20
Schneider Electric LP1D80004ED TeSys Deca 4P Contactor 125A 48V DC Coil IP20
- MPN: LP1D80004ED
- PPN: SCH-LP1D80004ED
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$993.05/ EA
Description
The TeSys Deca 4P Contactor from Schneider Electric is engineered for robust performance in automation and control applications, carrying a 125A capacity. This particular model features a 48V DC coil and is designed to operate within an IP20 rating, ensuring optimal protection in dry indoor environments. With its durable construction and reliability, this contactor is a formidable choice for those looking to enhance their control systems while maintaining high standards of efficiency and safety in their operations.
Specifications
- Rated Operational Voltage
- <= 690 V AC, <= 300 V DC, 25-400 Hz
- Rated Making Capacity
- 1100 A at 440 V
- Rated Short-Time Withstand Current
- 135 A - 10 min, 320 A - 1 min, 640 A - 10 s, 990 A - 1 s (40 °C)
- Average Impedance
- 0.8 mOhm at 125 A 50 Hz
- Rated Insulation Voltage
- 600 V CSA, 600 V UL, 1000 V IEC 60947-4-1
- Pollution Degree
- 3
- Safety Reliability Level
- B10d = 1,369,863 cycles nominal load, 20,000,000 cycles mechanical load EN/ISO 13849-1
- Electrical Durability
- 0.8 million cycles at 125 A AC-1 <= 440 V
- Control Circuit Type
- DC standard
- Control Circuit Voltage Limits
- 0.1...0.3 Uc drop-out DC, -40...70 °C
- Hold-in Power Consumption
- 22 W at 20 °C
- Maximum Operating Rate
- 3600 cycles/hour at 60 °C
- Tightening Torque
- Control circuit 1.2 N·m, Power circuit 12 N·m
- Dimensions (HxWxD)
- 5.00 in x 3.78 in x 7.13 in (127 mm x 96 mm x 181 mm)
- Poles
- 4P (4 NO)
- Fire Resistance
- 850 °C IEC 60695-2-1
- Mechanical Robustness
- Vibrations: 2 Gn open, 3 Gn closed; Shocks: 8 Gn open, 10 Gn closed for 11 ms
- Product Certifications
- BV, CCC, CSA, DNV, EAC, GL, LROS, UL, UKCA
- Permissible Ambient Temperature
- -40 to 70 °C (-40 to 158 °F) with derating
- Toxic Heavy Metal Free
- Yes
- RoHS Compliance
- Compliant
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP110205EN
- Sustainable Offer Status
- Green Premium product
- Type
- Contactor
- Device Short Name
- LP1D
- Utilisation Category
- AC-1, AC-3, AC-3e, AC-4
Rated Operational Current125 A AC-1, 80 A AC-3, 80 A AC-3e at <= 440 V, 55 A AC-4 at <= 400 V
Rated Breaking Capacity1100 A at 440 V conforming to IEC 60947
Associated Fuse Rating200 A gG type 1, 160 A gG type 2 at <= 690 V
Power Dissipation per Pole12.5 W AC-1
Overvoltage CategoryIII
Rated Impulse Withstand Voltage8 kV IEC 60947
Mechanical Durability4 million cycles
Control Circuit Voltage48 V DC
Coil TechnologyWithout built-in suppressor module
Inrush Power22 W at 20 °C
Operating Time6...20 ms opening, 20...35 ms closing
Terminal Connection SizeControl circuit: 1...4 mm² flexible and solid, Power circuit: 4...50 mm² flexible and solid
Mounting SupportRail, Plate
Net Weight5.92 lb (2.685 kg)
MaterialNot specified
Flame RetardanceV1 conforming to UL 94
Country of OriginFrance
IP Degree of ProtectionIP20 front face IEC 60529
Operating Altitude0 to 9843 ft (0 to 3000 m)
China RoHS RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
PVC FreeYes
Reach Free Of SVHCYes
WEEE ComplianceProduct disposal per EU WEEE regulations
Warranty18 months
RangeTeSys Deca
Compatibility CodeLP1D
Contact CompatibilityM4
