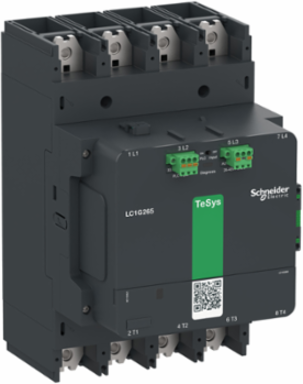

Schneider Electric LC1G3304EHEA Contactor, high power, TeSys Giga, advanced version, AC-1, <= 440V, 440A, 4 pole/NO, 48-130VAC/DC coil
Schneider Electric LC1G3304EHEA Contactor, high power, TeSys Giga, advanced version, AC-1, <= 440V, 440A, 4 pole/NO, 48-130VAC/DC coil
- MPN: LC1G3304EHEA
- PPN: SCH-LC1G3304EHEA
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4806.37/ EA
Description
Contactor, high power, TeSys Giga, advanced version, AC-1, <= 440V, 440A, 4 pole/NO, 48-130VAC/DC coil
Specifications
Physical Attributes
- Color
- dark grey
Conformance Attributes
- Product Certifications
- CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL
StandardsEN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1, UL 60335-1, UL 60335-2-40:Annex JJ
Complementary Attributes
- Control Circuit Voltage Limits
- operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
- Maximum Operating Rate
- 600 cyc/h AC-3, 600 cyc/h AC-3e, 300 cyc/h AC-1
- Ie Rated Operational Current
- 330 A (at <60 °C) at <= 440 V AC-3, 440 A (at <40 °C) at <= 1000 V AC-1
- Ue Rated Operational Voltage
- <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
- Maximum Motor Phase Current
- 330 A
- Ui Rated Insulation Voltage
- 1000 V
Maximum Horse Power Rating100 hp at 200/208 V 60 Hz, 125 hp at 230/240 V 60 Hz, 250 hp at 460/480 V 60 Hz, 300 hp at 575/600 V 60 Hz
Icw Rated Short Time Withstand Current2.65 kA - 10 s, 1.8 kA - 30 s, 1.3 kA - 1 min, 0.9 kA - 3 min, 0.75 kA - 10 min
Uc Control Circuit Voltage48...130 V, 48...130 V AC 50/60 Hz, 48...130 V DC
Irms Rated Making Capacity3830 A at 440 V
Rated Breaking Capacity2940 A at 440 V
Uimp Rated Impulse Withstand Voltage8 kV
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 400 A aM at <= 440 V for motor, 250 A aM at <= 690 V for motor, 500 A gG at <= 690 V, 600 A UL Type L at <= 600 V
- Operating Time
- 40...70 ms closing, 15...50 ms opening
- Safety Reliability Level
- B10d = 400000 cycles contactor with nominal load EN/ISO 13849-1, B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
- Connections Terminals
- control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end, power circuit: bar 2 - busbar cross section: 32 x 10 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end
- Ie Rated Operational Current
- 330 A (at <60 °C) at <= 440 V AC-3, 440 A (at <40 °C) at <= 1000 V AC-1
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 21.65236058920404, 22 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 2 753 kg CO2 eq., 2752.92
- Local Publishable Date
- 2025-12-27
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Use Carbon Footprint
- 2752.92
- Legacy Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2105013
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2121
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Coil Technology
- built-in bidirectional peak limiting
- Connection Pitch
- 45 mm
- Device Short Name
- LC1G
- Halogen Free Status
- Halogen free plastic parts product
- Hold In Power Consumption In W
- 9.0-9.0 W
- Inrush Power In W
- 360 W
- Mounting Support
- plate
- Overvoltage Category
- III
- Poles Description
- 4P
- Product Or Component Type
- contactor
- Range
- TeSys
- Returnability
- No
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 2 834 kg CO2 eq.
- Ith Conventional Free Air Thermal Current
- 440 A (at 40 °C)
- Warranty In Months
- 18
- Rated Thermal Current Hv
- 440 A
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(NO), a control circuit voltage 100V-250V AC/DC, a power circuit voltage 1000V AC and a rated operational current 225A.
- Functional Unit Unit
- Unit
- Reference Lifetime In Y2
- 20
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; CN
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; CN
- Recyclability Potential In 2
- 55
- Height Nominal
- 290 mm
- Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 2
- 2752.5
- Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 2
- 44520
- Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 2
- 2.2035
- Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 2
- 7.362
- Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 2
- 49227
- Water Use M3 Eq Operational Energy Use B6 2
- 121.437
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Power Dissipation Per Pole30 W AC-1 - Ith 440 A, 16 W AC-3 - Ith 330 A
Utilisation CategoryAC-3, AC-3e, AC-1, AC-5a, AC-5b, AC-6a, AC-6b, DC-1, DC-3, DC-5
Icw Rated Short Time Withstand Current2.65 kA - 10 s, 1.8 kA - 30 s, 1.3 kA - 1 min, 0.9 kA - 3 min, 0.75 kA - 10 min
Carbon Footprint Of The Distribution Phase A42.9566352686409862, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A357 kg CO2 eq., 56.56845126254338
Local Data StatusPublishable
Global Commercial StatusCommercialised
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityYes
Average Life Duration20 year(s)
Weee ScopeIn
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Impedance0.000144 Ohm
Compatibility CodeLC1G
Contactor Applicationpower switching
Electrical Durability300 cycles AC-1 400 V
Hold In Power Consumption In Va11.7-11.7 VA
Inrush Power In Va430-430 VA
Mechanical Durability8 Mcycles
Number Of Modules Per Plc Per Pc1
Pole Contact Composition4 NO
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTH
Range Of ProductTeSys Giga
Software Versionv5.9.4
Tightening Torque35 N.m
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rated Thermal Current Ith440 A
Control Circuit Voltage48...130 V
Pep CodeENVPEP2105013EN
Pep Verification Date2025-06-17
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit Quantity1
Product Weight In G210158
Energy Consumption On Product Lifetime In Kwh3153.6
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; CN
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; CN
Offer Owner Code190788
Width Nominal185 mm
Climate Change Total Kg Co2 Eq Operational Energy Use B6 22752.92
Ecotoxicity Fresh Water Ctue Operational Energy Use B6 251915
Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 2479.49
Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 224.9519
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 244520
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc, -40-70 °C at Uc
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -25-60 °C
- Circularity Profile
- ENVEOLI2105013
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-17
- Psr Version
- PSR-0005-ed2-2016 03 29
Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
Take BackNej
Recycled Metal Content At Cr Level0 %
Carbon Footprint2834.0974471203886
Ambient Air Temperature For Storage-60-80 °C
Environmental DisclosureENVPEP2105013EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2105013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Giga
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
