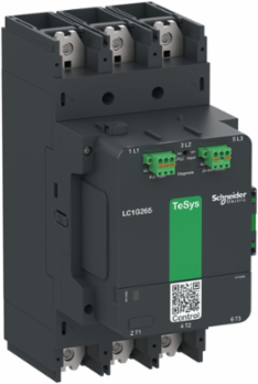

Schneider Electric LC1G500EHEA Contactor, high power, TeSys Giga, advanced version, AC-3, <= 440V, 500A, 3 pole/NO, 48-130VAC/DC coil

Contactor, high power, TeSys Giga, advanced version, AC-3, <= 440V, 500A, 3 pole/NO, 48-130VAC/DC coil
  • MPN: LC1G500EHEA
  • PPN: SCH-LC1G500EHEA
  • UNSPSC: 39121529

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Specifications

Physical Attributes

Color
dark grey

Conformance Attributes

Standards
EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, JIS C8201-5-1, IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, UL 60335-1, UL 60335-2-40:Annex JJ

Complementary Attributes

Control Circuit Voltage Limits
operational: 0.8 Uc Min...1.1 Uc Max (at <60 °C), drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
Maximum Operating Rate
600 cyc/h AC-3, 600 cyc/h AC-3e, 300 cyc/h AC-1, 150 cyc/h AC-4
IE Rated Operational Current
700 A (at <40 °C) at <= 1000 V AC-1, 500 A (at <60 °C) at <= 440 V AC-3
UE Rated Operational Voltage
<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Maximum Motor Phase Current
500 A
UI Rated Insulation Voltage
1000 V
Maximum Horse Power Rating150 hp at 200/208 V 60 Hz, 200 hp at 230/240 V 60 Hz, 400 hp at 460/480 V 60 Hz, 450 hp at 575/600 V 60 Hz
ICW Rated Short Time Withstand Current4.0 kA - 10 s, 2.8 kA - 30 s, 2.2 kA - 1 min, 1.5 kA - 3 min, 1.2 kA - 10 min
UC Control Circuit Voltage48...130 V AC 50/60 Hz, 48...130 V DC
IRMS Rated Making Capacity5090 A at 440 V
Rated Breaking Capacity4600 A at 440 V
UIMP Rated Impulse Withstand Voltage8 kV

Important Information Attributes

Persona Type Ids
EU, OM, OM8, PB
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Associated Fuse Rating
500 A aM at <= 440 V for motor, 400 A aM at <= 690 V for motor, 800 A gG at <= 690 V, 600 A UL Type L at <= 600 V
Electrical Durability
300 cycles AC-1 400 V, 500 cycles AC-3 400 V, 500 cycles AC-3e 400 V, 150 cycles AC-4 400 V
Motor Power KW
147 kW at 230 V AC 50/60 Hz (AC-3e), 250 kW at 400 V AC 50/60 Hz (AC-3e), 250 kW at 415 V AC 50/60 Hz (AC-3e), 280 kW at 440 V AC 50/60 Hz (AC-3e), 315 kW at 500 V AC 50/60 Hz (AC-3e), 355 kW at 690 V AC 50/60 Hz (AC-3e), 335 kW at 1000 V AC 50/60 Hz (AC-3e), 160 kW at 230 V AC 50/60 Hz (AC-3), 250 kW at 400 V AC 50/60 Hz (AC-3), 250 kW at 415 V AC 50/60 Hz (AC-3), 315 kW at 440 V AC 50/60 Hz (AC-3), 355 kW at 500 V AC 50/60 Hz (AC-3), 355 kW at 690 V AC 50/60 Hz (AC-3), 335 kW at 1000 V AC 50/60 Hz (AC-3), 150 kW at 230 V AC 50/60 Hz (AC-4), 250 kW at 400 V AC 50/60 Hz (AC-4), 250 kW at 415 V AC 50/60 Hz (AC-4), 295 kW at 440 V AC 50/60 Hz (AC-4), 295 kW at 500 V AC 50/60 Hz (AC-4), 355 kW at 690 V AC 50/60 Hz (AC-4), 280 kW at 1000 V AC 50/60 Hz (AC-4)
Power Dissipation Per Pole
40 W AC-1 - Ith 700 A, 20 W AC-3 - Ith 500 A
ICW Rated Short Time Withstand Current
4.0 kA - 10 s, 2.8 kA - 30 s, 2.2 kA - 1 min, 1.5 kA - 3 min, 1.2 kA - 10 min
Carbon Footprint Of The Distribution Phase A4
2.5947836279662004, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3
50 kg CO2 eq., 49.645248012927915
Connections Terminals
power circuit: bar 2 - busbar cross section: 32 x 10 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end
Local Data Status
Publishable
Device Type
LV equipment - LV contactor
Traceability
Yes
Average Life Duration
20 year(s)
Legacy WEEE Scope
In
EOLI Availability Display
Yes
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
ROHS EUR Status
Compliant with Exemptions
ROHS EUR Full Compliance Status Id
COMPLIANT_WITH_EXEMPTIONS
Green Premium Status For Reporting
Green Premium product
Without Single Use Plastic
Yes
Return Indicator
Y
Function Option Id
STANDARD
Average Impedance
0.00008 Ohm
Compatibility Code
LC1G
Halogen Free Status
Halogen free plastic parts product
Hold In Power Consumption In W
8.3-8.3 W
Inrush Power In W
360 W
Package Weight Lbs
9.169 kg
Product Or Component Type
contactor
Range
TeSys
Returnability
Yes
Tightening Torque
35 N.m
Variant
advanced
ITH Conventional Free Air Thermal Current
700 A (at 40 °C)
Pep Code
ENVPEP2105013EN
PCR Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional Unit Description
Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 3P(NO), a control circuit voltage 100V-250V AC/DC, a power circuit voltage 1000V AC and a rated operational current 225A.
Product Kit Identifier
N
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Contactor Applicationpower switching, motor control
Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor open, vibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Operating Time40...70 ms closing, 15...50 ms opening
Safety Reliability LevelB10d = 400000 cycles contactor with nominal load EN/ISO 13849-1, B10d = 3000000 cycles contactor with mechanical load EN/ISO 13849-1
IE Rated Operational Current700 A (at <40 °C) at <= 1000 V AC-1, 500 A (at <60 °C) at <= 440 V AC-3
Carbon Footprint Of The End Of Life Phase C1 To C419.002408365882673, 19 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B61 606 kg CO2 eq., 1605.8699999999997
AuxiliariesLAG8N113P, LAG8N113, LAG8N203P, LAG8N203
Local Publishable Date2025-07-09
ServiceabilityNo
Field Service DivisionPPIBS
WEEE ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2105013
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
WD Status1 - GSC certified
Function OptionStandard
Coil Technologybuilt-in bidirectional peak limiting
Device Short NameLC1G
Hold In Power Consumption In VA11.7-11.7 VA
Inrush Power In VA450-450 VA
Mechanical Durability8 Mcycles
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Range Of ProductTeSys Giga
Sustainable PackagingYes
Total Lifecycle Carbon Footprint1 677 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Relationship TypeCompatible relationship
Pep Verification Date2025-06-17
PSR VersionPSR-0005-ed2-2016 03 29
Rated Thermal Current Ith700 A
Functional Unit UnitUnit
Product ManagerSHUREN ZHANG

Environment Attributes Main

EU ROHS Directive
Compliant By Exemption?, Compliant with Exemptions
Permissible Ambient Air Temperature Around The Device
-40-70 °C at Uc, -40-70 °C at Uc
Take Back
No
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Circularity Profile
ENVEOLI2105013
Halogen Content Performance
Halogen free plastic parts product
Packaging Without Single Use Plastic
Yes
Pep Code
ENVPEP2105013EN
PCR Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
IP Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
ROHS Exemption InformationYes
Halogene PerformanceHalogen free plastic parts product
China ROHS RegulationProduct out of China RoHS scope. Substance declaration for your information.
Carbon Footprint1677.1124400067765
Environmental DisclosureENVPEP2105013EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-06-17
PSR VersionPSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Type
contactor
Range Of ProductTeSys Giga
