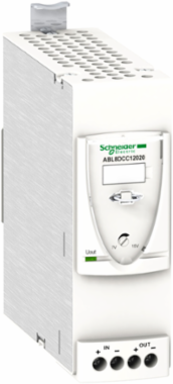

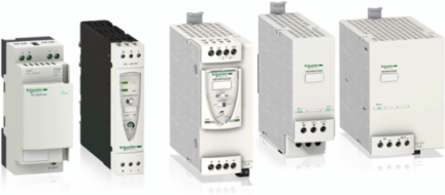

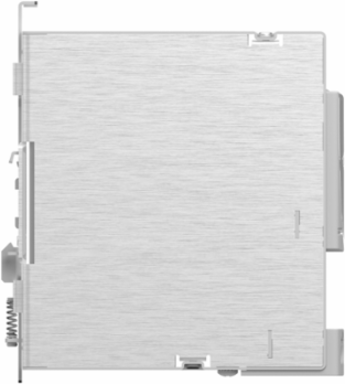

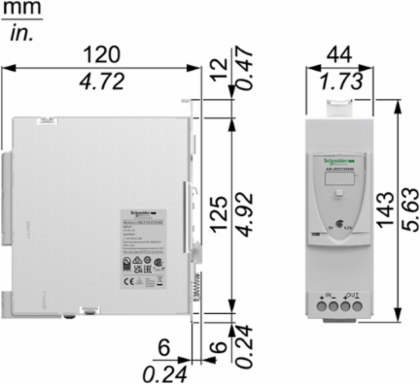

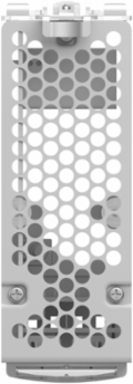

Schneider Electric ABL8DCC12020 Converter Module 24W, 24-28.8V DC, 12V DC, 2A for Automation

  • MPN: ABL8DCC12020
  • PPN: SCH-ABL8DCC12020
  • UNSPSC: 39121004

CAD

$188.12

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

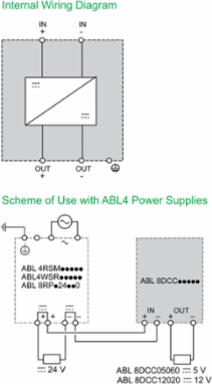

This ABL8 converter module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 2A at 12V DC and a rated power output of 24W. This converter module is designed for automation and instrumentation circuits requiring extra low voltage (ELV / SELV). It finely adjusts the output voltage with a rotary trimmer, to take into account the voltage at the end of your auxiliary control circuit. It has LED diagnostics indicator available in the front for troubleshooting instantly. It weighs 0,300kg. It is a functionnal module for power supply for industrial use, rail mounting. It is certified by RCM, EAC, CCSAus, UL. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Features

  • Wide output voltage adjustment

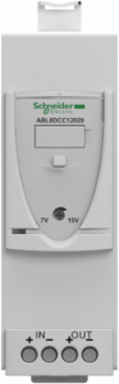

  • Instant fault diagnosis thanks to front side LED indicators
  • Adjust the output voltage with a rotary trimmer
  • No additional protection required on input side

Documentation & Downloads

Specifications

Key Specifications

Country of OriginPhilippines
Weight601 g

Complementary Attributes

Rated Power In W24 W

Important Information Attributes

Persona Type IdsEU, OM, OM8
Dielectric Strength500 V between input and ground, 500 V between input and output, 500 V between output and ground

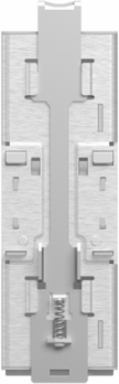

Fixing Modeby clips 35 mm symmetrical DIN rail horizontal, by clips 35 mm symmetrical DIN rail vertical
Residual Ripple<= 100 mV, <= 100 mV
Certificate AgencyRCM, EAC, cCSAus, UL
Carbon Footprint Of The End Of Life Phase C1 To C41 kg CO2 eq., 1.1211007620132456
Carbon Footprint Of The Manufacturing Phase A1 To A316 kg CO2 eq., 16.21572549816528
Local Data StatusPublishable
Return IndicatorY
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI120913EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1909
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Compatibility CodeABL8D
Line And Load Regulation1...3 %
Mtbf Reliability1583182 H at 24 V DC with UTE C80-810 calculation method
Power Dissipation In W4 W
Product Or Component Typeconverter module
ReturnabilityYes
Sustainable PackagingNo
Vibration Resistance2 gn (f= 11.9-150 Hz) conforming to IEC 61131-23.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2
Database Version2024-01
Nbr. Of Units In Pkg.1
Warranty In Months18
Functional Unit DescriptionTo protect and ensure service continuity of an electrical system in industrial atmosphere 34% of the time for 10 years.
Functional Unit Unitunit
Recyclability Potential In %40
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Environmental CharacteristicEMC conforming to EN 50081-1, EMC conforming to IEC 61000-6-3, EMC conforming to IEC 61000-6-2safety conforming to IEC 60950-1, safety conforming to IEC 61204
Name Of Testinduced electromagnetic field conforming to IEC 61000-4-6 level 3radiated electromagnetic field conforming to IEC 61000-4-3 level 3rapid transient conforming to IEC 61000-4-4 level 3, surge conforming to IEC 61000-4-5 level 2conducted/radiated emissions conforming to EN 55022 Class Belectrostatic discharges conforming to IEC 61000-4-2emission conforming to IEC 61000-6-3

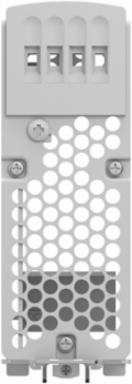

Connections Terminalsfor input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 4 mm² 24 AWG...10 AWG, for output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 4 mm² 24 AWG...10 AWG
Carbon Footprint Of The Distribution Phase A40.316019407650434, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.1784444577733102, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B654 kg CO2 eq., 53.98915550693463
Local Publishable Date2026-07-08
Device TypePLC System - PLC Component
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Efficiency82 %
Local Signalling1 LED (green) for output voltage (> 6 V)
Overvoltage Categoryclass 3
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductPhaseo Universal
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint72 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Sourceextrapolated product
Customs Code8504409510
Packaging Weight In G60.1
Functional Unit Quantity1
Reference Lifetime In Y10

Environment Attributes Main

Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Relative Humidity0-90 % during operation, 0-95 % during storage
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI120913EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP061201EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint71.82044563253689
Environmental DisclosureENVPEP061201EN
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-10-31
Psr VersionPSR-0005-ed3.1-EN-2023 12 08

General Attributes

Product Or Component Typeconverter module
Range Of ProductPhaseo Universal

ETIM

ETIM 8EC002540
ETIM 10EC002540
ETIM 9EC002540

Output Attributes

Output Protection Typeagainst overload, protection technology: automatic resetagainst overvoltage, protection technology: tripping if U > 7.8 V, automatic reset, against short-circuits, protection technology: automatic reset
Output Voltage Limits7...15 V
Output Voltage12 V DC
Power Supply Output Current2 A

Contractual Warranty Attributes

Warranty Period18 months
Warranty18 months

Input Attributes

Efficiency82 %
Input Voltage24...28.8 V DC
Input Protection Typeagainst reverse polarity
Input Voltage Limits22...30 V
Converter Module 24W, 24-28.8V DC, 12V DC, 2A for Automation
