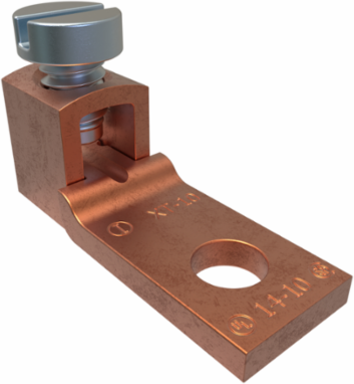

Ilsco XT-10 Copper Mechanical Lug, Conductor Range 10-14, 1 Port, 1 Hole, #6 Bolt Size, UL, CSA

Copper Mechanical Lug, Conductor Range 10-14, 1 Port, 1 Hole, #6 Bolt Size, UL, CSA
  • MPN: XT-10
  • UPC: 0783669958195
  • PPN: ILC-XT-10

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$6.35/ EA

Specifications

Voltage

Voltage Rating
35 kV

Dimensions

Dimension G (IN)
0.188
Drive Type Main
Slotted
Mounting Bolt/Stud Size (mm)
152.4
Tang Length (IN)
0.483
Tang Offset (IN)
0.05
Tang Thickness (IN)
0.072
Tang Width (IN)
0.313
Weight BX (LB)
2.32
Dimension G (mm)4.7752
Height BX (IN)2.25
Mounting Hole Diameter (IN)0.156
Tang Length (mm)12.2682
Tang Offset (mm)1.27
Tang Thickness (mm)1.8288
Tang Width (mm)7.9502
Width BX (IN)5

Testing Standards

CSA File Number
LR-29601
Prop65 Compliance
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
UL / CULUS Specification
UL 486A/B Listed
CSA StandardC22.2 No. 65-03
UL Control Number453G
UL File NumberE6207

Additional Class Attributes

Connection
Mechanical
Mounting Hole Type
Thru
Number of Mounting Holes
1
Number of Ports / Wireways
1
Contains DE-OX®No
Number of Conductors1
Number of Poles1

Material and Finish

Conductor Material
Copper
Wire Binding Hardware Finish
Zinc Clear Trivalent Chromate
MaterialCopper
Wire Binding Hardware MaterialSteel

Conductor Ranges

Conductor Range CU Solid (Primary, run, main, line)
10 Sol - 14 Sol
Conductor Range CU Stranded (Primary, run, main, line)10 Str - 14 Str

Additional Technical Specifications

Conductor Type
Stranded, Solid

General

Bag Quantity
1
Direct Burial
No
NEMA Code
S-588-3
Carton Quantity DescriptionSTD PACK QTY 100
Dual RatedNo
UPC Code78366995819

Specifications

Height
0.448 in
Weight
0.014 lbs
Length0.875 in
Width0.313 in

Bolt and Screw Sizes

Mounting Bolt/Stud Size
#6
Wire Binding Screw Size
1/4
Number of Wire Binding Screws per Port1
Wire Binding Torque20

Color

Color
Copper

Environment and Temperature

Temperature Rating
90°C
