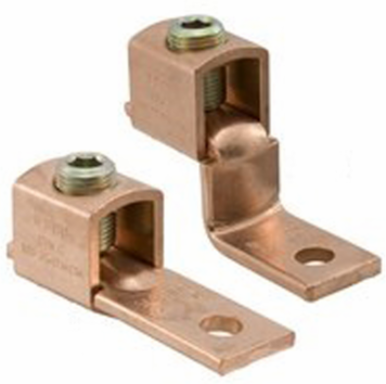

ILSCO SLU-35 Copper Mechanical Lug Offset, Conductor Range 6-14, 1 Port, 1 Hole, #10in Bolt Size, UL, CSA
ILSCO SLU-35 Copper Mechanical Lug Offset, Conductor Range 6-14, 1 Port, 1 Hole, #10in Bolt Size, UL, CSA
- MPN: SLU-35
- UPC: 783669829464
- PPN: ILC-SLU-35
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$2.94/ EA
Description
Copper Mechanical Lug Offset, Conductor Range 6-14, 1 Port, 1 Hole, #10in Bolt Size, UL, CSA
Specifications
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Dimension G (IN)
- 0.219
- Drive Type Main
- Slotted
- Mounting Bolt/Stud Size (mm)
- 254
- Mounting Hole Diameter (mm)
- 5.1562
- Tang Length (mm)
- 12.7
- Tang Offset (mm)
- 10.922
- Tang Thickness (mm)
- 1.8288
- Tang Width (mm)
- 9.525
- Width BX (IN)
- 5
Dimension G (mm)5.5626
Height BX (IN)2.25
Mounting Hole Diameter (IN)0.203
Tang Length (IN)0.5
Tang Offset (IN)0.43
Tang Thickness (IN)0.072
Tang Width (IN)0.375
Weight BX (LB)3.2
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL Control Number
- 453G
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
ROHS IndicatorIND
UL / CULUS SpecificationUL 486A/B Listed
Additional Class Attributes
- Collar Style
- V-Bottom
- Contains DE-OX®
- No
- Number of Conductors
- 2, 1
- Number of Poles
- 1
ConnectionMechanical
Mounting Hole TypeThru
Number of Mounting Holes1
Number of Ports / Wireways1
Material and Finish
- Conductor Material
- Copper
- Wire Binding Hardware Finish
- Zinc Clear Trivalent Chromate
MaterialCopper
Wire Binding Hardware MaterialSteel
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Wire Combinations
- (1) 10 Sol/Str and (1) 12 Sol/Str, (2) 10 Sol/Str, (2) 12 Sol/Str, (2) 14 Sol/Str, (1) 12 Sol/Str and (1) 14 Sol/Str
Conductor Range CU Stranded (Primary, run, main, line)6 Str - 14 Str
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 100
Dual RatedNo
UPC Code78366982946
Specifications
- Height
- 0.927 in
- Weight
- 0.025 lbs
Length1.188 in
Width0.375 in
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- #10
- Wire Binding Screw Size
- 1/4
Number of Wire Binding Screws per Port1
Wire Binding Torque2 AWG = 40, 4 - 6 AWG = 35, 10 - 18 AWG = 20, 8 AWG = 25
Color
- Color
- Copper
Environment and Temperature
- Temperature Rating
- 90°C
Downloads
