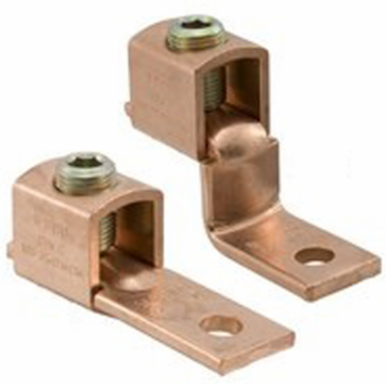

ILSCO SLU-225 Copper Mechanical Lug Offset, Conductor Range 4/0-2, 1 Port, 1 Hole, 5/16in Bolt Size, UL, CSA
- MPN: SLU-225
- UPC: 783669833751
- PPN: ILC-SLU-225
CAD
$14.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Mechanical Lug Offset, Conductor Range 4/0-2, 1 Port, 1 Hole, 5/16in Bolt Size, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 1.683 in | 42.7482 mm
- Weight
- 0.213 lbs
Length2.594 in | 65.8876 mm
Width1 in
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Dimension G (IN)
- 0.5
- Drive Size Main
- 7/32
- Height BX (IN)
- 2
- Length (mm)
- 65.8876
- Mounting Hole Diameter (mm)
- 8.7376
- Tang Length (mm)
- 30.1752
- Tang Offset (mm)
- 20.193
- Tang Thickness (mm)
- 3.175
- Tang Width (mm)
- 25.4
- Width BX (IN)
- 6.1875
Dimension G (mm)12.7
Drive Type MainInternal Hex
Height (mm)42.7482
Mounting Hole Diameter (IN)0.344
Tang Length (IN)1.188
Tang Offset (IN)0.795
Tang Thickness (IN)0.125
Tang Width (IN)1
Weight BX (LB)6.2495
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL Control Number
- 453G
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
ROHS IndicatorIND
UL / CULUS SpecificationUL 486A/B Listed
Additional Class Attributes
- Collar Style
- V-Bottom
- Contains DE-OX®
- No
- Number of Conductors
- 1
- Number of Poles
- 1
ConnectionMechanical
Mounting Hole TypeThru
Number of Mounting Holes1
Number of Ports / Wireways1
Material and Finish
- Conductor Material
- Copper
- Wire Binding Hardware Finish
- Zinc Clear Trivalent Chromate
MaterialCopper
Wire Binding Hardware MaterialSteel
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 4/0 Str - 2 Str
Additional Technical Specifications
- Conductor Type
- Stranded
General
- Bag Quantity
- 1
- Direct Burial
- No
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 25
Dual RatedNo
UPC Code78366983375
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 5/16
- Wire Binding Screw Size
- 5/8
Number of Wire Binding Screws per Port1
Wire Binding Torque150
Color
- Color
- Copper
Environment and Temperature
- Temperature Rating
- 90°C
