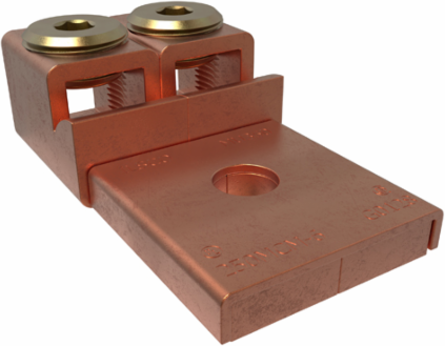

ILSCO MU-250 Copper Mechanical Lug, Conductor Range 250-6, 2 Ports, 1 Hole, 3/8in Bolt Size, UL, CSA
- MPN: MU-250
- UPC: 783669681833
- PPN: ILC-MU-250
CAD
$193.07
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Mechanical Lug, Conductor Range 250-6, 2 Ports, 1 Hole, 3/8in Bolt Size, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 0.875 in | 22.225 mm |
|---|---|
| Weight | 0.574 lbs |
| Length | 2.954 in | 75.0316 mm |
|---|---|
| Width | 1.625 in | 41.275 mm |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Dimension G (IN) | 0.891 |
|---|---|
| Drive Size Main | 1/4 |
| Height BX (IN) | 2.25 |
| Length (mm) | 75.0316 |
| Mounting Hole Diameter (IN) | 0.406 |
| Tang Length (IN) | 1.579 |
| Tang Thickness (IN) | 0.313 |
| Tang Width (IN) | 1.512 |
| Weight BX (LB) | 4.3471 |
| Width (mm) | 41.275 |
| Dimension G (mm) | 22.6314 |
|---|---|
| Drive Type Main | Internal Hex |
| Height (mm) | 22.225 |
| Mounting Bolt/Stud Size (mm) | 965.2 |
| Mounting Hole Diameter (mm) | 10.3124 |
| Tang Length (mm) | 40.1066 |
| Tang Thickness (mm) | 7.9502 |
| Tang Width (mm) | 38.4048 |
| Width BX (IN) | 5 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| UL Control Number | 453G |
| UL File Number | E6207 |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| ROHS Indicator | IND |
| UL / CULUS Specification | UL 486A/B Listed |
Additional Class Attributes
| Collar Style | Square |
|---|---|
| Contains DE-OX® | No |
| Number of Conductors | 2 |
| Number of Poles | 1 |
| Connection | Mechanical |
|---|---|
| Mounting Hole Type | Thru |
| Number of Mounting Holes | 1 |
| Number of Ports / Wireways | 2 |
Material and Finish
| Conductor Material | Copper |
|---|---|
| Wire Binding Hardware Finish | Bright Dip |
| Material | Copper |
|---|---|
| Wire Binding Hardware Material | Brass |
Conductor Ranges
| Conductor Range CU Stranded (Primary, run, main, line) | 250 kcmil - 6 Str |
|---|
Additional Technical Specifications
| Conductor Type | Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | No |
| NEMA Code | S-588-3 |
| Carton Quantity Description | STD PACK QTY 6 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366968183 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | 3/8 |
|---|---|
| Wire Binding Screw Size | 13/16 |
| Number of Wire Binding Screws per Port | 1 |
|---|---|
| Wire Binding Torque | 200 |
Color
| Color | Copper |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
