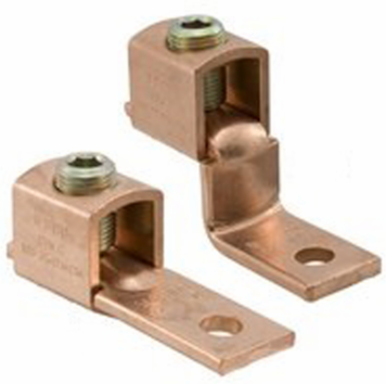

ILSCO SLU-175 Copper Mechanical Lug Offset, Conductor Range 3/0-4, 1 Port, 1 Hole, 3/8in Bolt Size, UL, CSA
- MPN: SLU-175
- UPC: 783669832792
- PPN: ILC-SLU-175
CAD
$12.22
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Mechanical Lug Offset, Conductor Range 3/0-4, 1 Port, 1 Hole, 3/8in Bolt Size, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 1.376 in | 34.9504 mm |
|---|---|
| Weight | 0.143 lbs |
| Length | 2.188 in |
|---|---|
| Width | 0.75 in |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Dimension G (IN) | 0.438 |
|---|---|
| Drive Size Main | 3/16 |
| Height BX (IN) | 2 |
| Mounting Bolt/Stud Size (mm) | 965.2 |
| Mounting Hole Diameter (mm) | 10.3124 |
| Tang Length (mm) | 23.8252 |
| Tang Offset (mm) | 15.0876 |
| Tang Thickness (mm) | 3.9624 |
| Tang Width (mm) | 19.05 |
| Width BX (IN) | 6.1875 |
| Dimension G (mm) | 11.1252 |
|---|---|
| Drive Type Main | Internal Hex |
| Height (mm) | 34.9504 |
| Mounting Hole Diameter (IN) | 0.406 |
| Tang Length (IN) | 0.938 |
| Tang Offset (IN) | 0.594 |
| Tang Thickness (IN) | 0.156 |
| Tang Width (IN) | 0.75 |
| Weight BX (LB) | 4.5895 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| UL Control Number | 453G |
| UL File Number | E6207 |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| ROHS Indicator | IND |
| UL / CULUS Specification | UL 486A/B Listed |
Additional Class Attributes
| Collar Style | V-Bottom |
|---|---|
| Contains DE-OX® | No |
| Number of Conductors | 1 |
| Number of Poles | 1 |
| Connection | Mechanical |
|---|---|
| Mounting Hole Type | Thru |
| Number of Mounting Holes | 1 |
| Number of Ports / Wireways | 1 |
Material and Finish
| Conductor Material | Copper |
|---|---|
| Wire Binding Hardware Finish | Zinc Clear Trivalent Chromate |
| Material | Copper |
|---|---|
| Wire Binding Hardware Material | Steel |
Conductor Ranges
| Conductor Range CU Stranded (Primary, run, main, line) | 3/0 Str - 4 Str |
|---|
Additional Technical Specifications
| Conductor Type | Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | No |
| NEMA Code | S-588-3 |
| Carton Quantity Description | STD PACK QTY 25 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366983279 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | 3/8 |
|---|---|
| Wire Binding Screw Size | 7/16 |
| Number of Wire Binding Screws per Port | 1 |
|---|---|
| Wire Binding Torque | 120 |
Color
| Color | Copper |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
