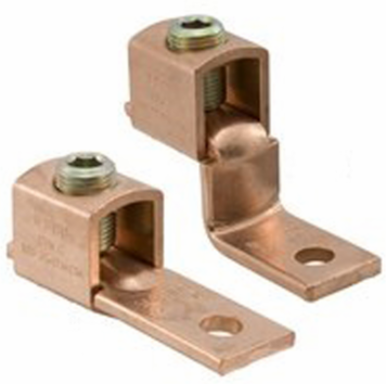

ILSCO SLU-25 Copper Mechanical Lug Offset, Conductor Range 10-14, 1 Port, 1 Hole, #6 Bolt Size, UL, CSA
- MPN: SLU-25
- UPC: 783669828825
- PPN: ILC-SLU-25
CAD
$2.91
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper Mechanical Lug Offset, Conductor Range 10-14, 1 Port, 1 Hole, #6 Bolt Size, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 0.661 in | 16.7894 mm |
|---|---|
| Weight | 0.012 lbs |
| Length | 1 in |
|---|---|
| Width | 0.313 in |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Dimension G (IN) | 0.188 |
|---|---|
| Drive Type Main | Slotted |
| Height (mm) | 16.7894 |
| Mounting Hole Diameter (IN) | 0.156 |
| Tang Length (IN) | 0.469 |
| Tang Offset (IN) | 0.193 |
| Tang Thickness (IN) | 0.072 |
| Tang Width (IN) | 0.313 |
| Weight BX (LB) | 2.42 |
| Dimension G (mm) | 4.7752 |
|---|---|
| Height BX (IN) | 2.25 |
| Mounting Bolt/Stud Size (mm) | 152.4 |
| Mounting Hole Diameter (mm) | 3.9624 |
| Tang Length (mm) | 11.9126 |
| Tang Offset (mm) | 4.9022 |
| Tang Thickness (mm) | 1.8288 |
| Tang Width (mm) | 7.9502 |
| Width BX (IN) | 5 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| UL Control Number | 453G |
| UL File Number | E6207 |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| ROHS Indicator | IND |
| UL / CULUS Specification | UL 486A/B Listed |
Additional Class Attributes
| Collar Style | V-Bottom |
|---|---|
| Contains DE-OX® | No |
| Number of Conductors | 1 |
| Number of Poles | 1 |
| Connection | Mechanical |
|---|---|
| Mounting Hole Type | Thru |
| Number of Mounting Holes | 1 |
| Number of Ports / Wireways | 1 |
Material and Finish
| Conductor Material | Copper |
|---|---|
| Wire Binding Hardware Finish | Zinc Clear Trivalent Chromate |
| Material | Copper |
|---|---|
| Wire Binding Hardware Material | Steel |
Conductor Ranges
| Conductor Range CU Solid (Primary, run, main, line) | 10 Sol - 14 Sol |
|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 10 Str - 14 Str |
|---|
Additional Technical Specifications
| Conductor Type | Stranded, Solid |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | No |
| NEMA Code | S-588-3 |
| Carton Quantity Description | STD PACK QTY 100 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366982882 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | #6 |
|---|---|
| Wire Binding Screw Size | 1/4 |
| Number of Wire Binding Screws per Port | 1 |
|---|---|
| Wire Binding Torque | 10 - 14 AWG = 35 |
Color
| Color | Copper |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
