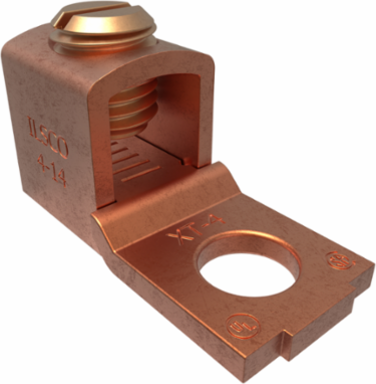

ILSCO XT-4DB Copper Mechanical Lug, Conductor Range 4-14, 1 Port, 1 Hole, 1/4 Bolt Size, Direct Bury, UL, CSA
- MPN: XT-4DB
- UPC: 783669957570
- PPN: ILC-XT-4DB
CAD
$12.04
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Copper Mechanical Lug, Conductor Range 4-14, 1 Port, 1 Hole, 1/4 Bolt Size, Direct Bury, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
- Height
- 0.575 in
- Weight
- 0.041 lbs
Length1.12 in
Width0.5 in
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Dimension G (IN)
- 0.25
- Drive Type Main
- Slotted
- Mounting Hole Diameter (IN)
- 0.265
- Tang Length (IN)
- 0.51
- Tang Offset (IN)
- 0.072
- Tang Thickness (IN)
- 0.082
- Tang Width (IN)
- 0.5
- Weight BX (LB)
- 5.03
Dimension G (mm)6.35
Height BX (IN)2.25
Mounting Hole Diameter (mm)6.731
Tang Length (mm)12.954
Tang Offset (mm)1.8288
Tang Thickness (mm)2.0828
Tang Width (mm)12.7
Width BX (IN)5
Testing Standards
- CSA File Number
- LR-29601
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- UL / CULUS Specification
- UL 486A/B Listed
CSA StandardC22.2 No. 65-03
UL Control Number453G
UL File NumberE6207
Additional Class Attributes
- Connection
- Mechanical
- Mounting Hole Type
- Thru
- Number of Mounting Holes
- 1
- Number of Ports / Wireways
- 1
Contains DE-OX®No
Number of Conductors1, 2, 4
Number of Poles1
Material and Finish
- Conductor Material
- Copper
- Wire Binding Hardware Finish
- Bright Dip
MaterialCopper
Wire Binding Hardware MaterialCopper
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 10 Sol - 14 Sol
- Wire Combinations
- (4) 16 Sol/Str, (2) 14 Sol/Str, (2) 12 Sol/Str, (2) 10 Sol/Str, (2) 8 Str
Conductor Range CU Stranded (Primary, run, main, line)4 Str - 14 Str
Additional Technical Specifications
- Conductor Type
- Solid, Stranded
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 100
Dual RatedNo
UPC Code78366995757
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 1/4
- Wire Binding Screw Size
- 3/8
Number of Wire Binding Screws per Port1
Wire Binding Torque10 - 14 AWG = 35, 4 - 6 AWG = 45, 8 AWG = 40
Color
- Color
- Copper
Environment and Temperature
- Temperature Rating
- 90°C
