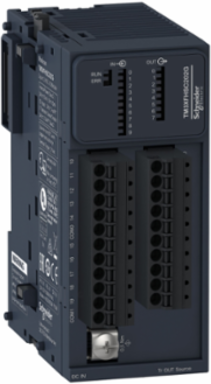

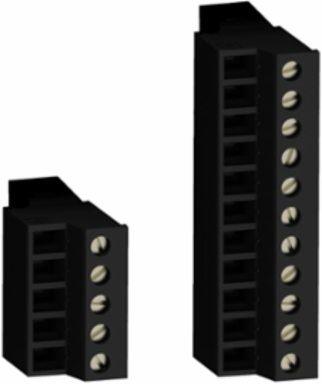

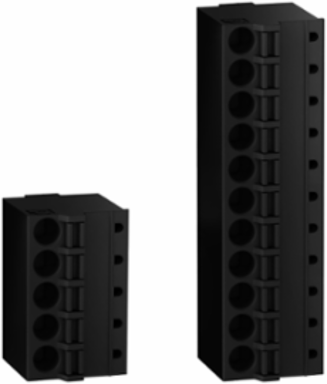

Schneider Electric TM3XHSC202G Modicon TM3 High Speed Counter Module, 10 Inputs, 8 Outputs, 200 kHz
- MPN: TM3XHSC202G
- PPN: SCH-TM3XHSC202G
- UNSPSC: 32151705
CAD
$552.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Modicon TM3 High Speed Counter Module by Schneider Electric is engineered to handle demanding automation tasks with remarkable efficiency. Featuring 10 inputs and 8 outputs, this module is capable of processing frequencies up to 200 kHz, making it ideal for applications that require rapid response times and precise counting capabilities. Designed to integrate seamlessly with Schneider Electric's Modicon systems, this module enhances your control and monitoring capabilities in industrial environments, providing reliable performance for sophisticated automation projects.
Features
- Expansion I/O modules for Modicon M221, M241, M251 and M262 controllers
- Modularity and easness of installation
- Large choice of I/O system to enhance the capabilities of Modicon M2xx plc
- Intuitive machine programming with EcoStruxure Machine Expert
- Modicon TM3 system allows Machine plc flexible, customizable I/O extension
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia, United States |
|---|---|
| Depth | 85 mm |
| Weight | 214 g |
|---|
Complementary Attributes
| Us Rated Supply Voltage | 24 V DC external supply - 15...20 %) |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Counting Mode | 2 main expert function (main counting function, frequency meter, period meter), Max 8 simple counting function |
| Local Signalling | 1 LED I/O, 1 LED RUN, 1 LED ERR |
| Resistance To Fast Transients | 2 kV alimentation cableEN/IEC 61000-4-41 kV Ethernet lineEN/IEC 61000-4-4, 1 kV serial linkEN/IEC 61000-4-4, 1 kV inputEN/IEC 61000-4-4, 1 kV transistor outputEN/IEC 61000-4-4 |
| Certificate Agency | CE, cULus, IACS E10, RCM, UKCA, EAC |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.2961208654602444, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 11 kg CO2 eq., 10.748979054624499 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Counting Frequency | 200 kHz |
| Electromagnetic Emission | conducted emissions 120...69 dBµV/m QP10-150 kHz EN/IEC 55011conducted emissions 63 dBμV/m QP1.5-30 MHz EN/IEC 55011radiated emissions 40 dBµV/m class A30-230 MHz EN/IEC 55011conducted emissions 79...63 dBμV/m QP150-1500 kHz EN/IEC 55011radiated emissions 47 dBµV/m class A230-1000 MHz EN/IEC 55011 |
| Front Installation Possible | false |
| Optical Interface Present | false |
| Product Or Component Type | module hight speed counting |
| Radio Standard Gprs | false |
| Radio Standard Umts | false |
| Reset | automatic reset |
| Resistance To Electromagnetic Fields | 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-33 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-31 V/m 2 GHz...3 GHz EN/IEC 61000-4-3 |
| Returnability | Yes |
| Shock Resistance | 15 gn 11 ms |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Ethercat | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Certified For Ul Hazardous Location Class Ii | false |
| Certified For Ul Hazardous Location Division 1 | false |
| Dc Supply Voltage | 24-24 V |
| Contactor Control Function Block | false |
| Function Block Access Control | false |
| Function Block Automatic Reset | false |
| Function Block Emergency Stop | false |
| Function Block Restart Blockage | false |
| Database Version | 2023-02 |
| Height Nominal | 90 mm |
| Discrete I/O Number | 18 |
| Supporting Protocol For Tcp/Ip | false |
| Nbr. Of Units In Pkg. | 1 |
| Appendant Operation Agent Ex Ia | false |
| Certified For Ul Hazardous Location Group A Acetylene | false |
| Certified For Ul Hazardous Location Group C Ethylene | false |
| Certified For Ul Hazardous Location Group E Metal Dusts | false |
| Certified For Ul Hazardous Location Group G Non Conductive Dust | false |
| Io Link Master Present | false |
| Rack Assembly Possible | false |
| Supporting Protocol For As Interface Safety At Work | false |
| Supporting Protocol For Interbus Safety | false |
| Functional Unit Description | To count the pulses generated by a sensor or to process signals from an incremental encoder 100% of the time for 10 years |
| Functional Unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 148.92 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Electrical Circuit Type | standard input, latch input |
| Mounting Support | top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit |
| Vibration Resistance | 1 gn 8.4-200 Hz panel3.5 mm 2-8.4 Hz DIN rail1 gn 8.4-200 Hz DIN rail, 3.5 mm 2-8.4 Hz panel |
| Carbon Footprint Of The Distribution Phase A4 | 1.1545082997099696, 1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0 kg CO2 eq., 0.0039127175253750295 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 128 kg CO2 eq., 127.95944296049423 |
| Local Publishable Date | 2026-08-06 |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1904007EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1936 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Bearing Track Assembly Possible | true |
| Current Consumption | 100 mA 5 V DC50 mA 24 V DC |
| Event Management | No eventThresholds < 10 µs |
| Network Type | DC |
| Product Availability | Stock - Normally stocked in distribution facility |
| Radio Standard Bluetooth | false |
| Radio Standard Gsm | false |
| Range Of Product | Modicon TM3 |
| Resistance To Conducted Disturbances | 10 V 0.15...80 MHz EN/IEC 61000-4-4 |
| Resistance To Electrostatic Discharge | 8 kV in air EN/IEC 61000-4-24 kV on contact EN/IEC 61000-4-2 |
| Services | HSC simple One shot/ModuloHSC main single phase One shot/Modulo/Event countingHSC main dual phase Modulo/Free-largeperiod meter Edge to Edge, Edge to Opposite |
| Software Version | v6.2.2 |
| Supporting Protocol For Can | false |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | false |
| Supporting Protocol For Profibus | false |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Total Lifecycle Carbon Footprint | 140 kg CO2 eq. |
| Certified For Ul Hazardous Location Class I | false |
| Certified For Ul Hazardous Location Class Iii | false |
| Certified For Ul Hazardous Location Division 2 | false |
| Fieldbus Connection Over Separate Bus Coupler Possible | false |
| Frequency Measurement | false |
| Function Block Affirm Pushbutton | false |
| Function Block Contactless Working Protection Installation | false |
| Function Block Operating Mode Selection | false |
| System Accessory | false |
| Data Source | extrapolated product |
| Width Nominal | 39 mm |
| Supporting Protocol For Ethernet/Ip | false |
| Wall Mounting/Direct Mounting Possible | false |
| Customs Code | 9029108000 |
| Appendant Operation Agent Ex Ib | false |
| Certified For Ul Hazardous Location Group B Hydrogen | false |
| Certified For Ul Hazardous Location Group D Propane | false |
| Certified For Ul Hazardous Location Group F Carbonaceous Dust | false |
| Function Block 2 Hand Switching | false |
| Performance Level According To En Iso 13849 1 | none |
| Radio Standard Wi Fi 802.11 | false |
| Supporting Protocol For Data Highway | false |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -20-60 °C horizontal installation, -20-60 °C horizontal installation, -20-50 °C vertical installation, -20-50 °C vertical installation-20-60 °C horizontal installation, -20-60 °C horizontal installation, -20-50 °C vertical installation |
|---|---|
| Ip Degree Of Protection | with protective cover in place, IP20 |
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 140.1629638978143 |
| Environmental Disclosure | ENVPEP1904007EN |
| Operating Altitude | 0...6561.68 ft (0...2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Storage Altitude | 0-3000 m |
| Pep Verification Date | 2024-11-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Relative Humidity | 10-95 %, without condensation in operation), 10-95 %, without condensation in storage) |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1904007EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1904007EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | module hight speed counting |
|---|
| Range Of Product | Modicon TM3 |
|---|
ETIM
| ETIM 8 | EC001601 |
|---|---|
| ETIM 10 | EC001601 |
| ETIM 9 | EC001601 |
|---|
Output Attributes
| Discrete Output Current | 300 mA fast output Q0...Q7) |
|---|---|
| Number Of Output Channels | 8 |
| Output Voltage | 24 V DC transistor output |
| Discrete Output Logic | source |
|---|---|
| Output Protection Type | against overload and short-circuits |
| Output Voltage Limits | 30 V DC |
Input Attributes
| Discrete Input Logic | sink or source |
|---|---|
| Number Of Input Channels | 10 |
| Discrete Input Voltage | 24 V DC |
|---|
