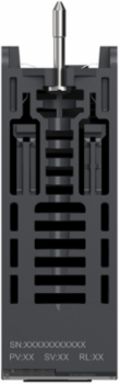

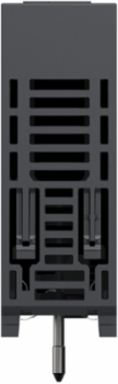

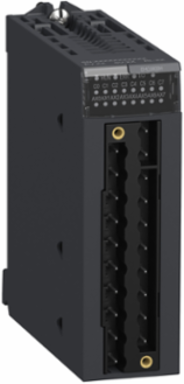

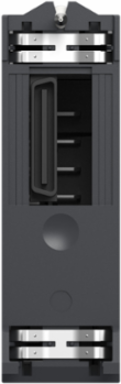

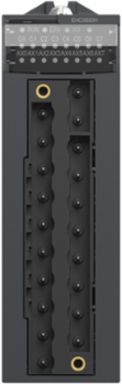

Schneider Electric BMXEHC0800H High-Speed Counter Module, 8 Channels, -25 to 70 C Operation Temperature
- MPN: BMXEHC0800H
- PPN: SCH-BMXEHC0800H
CAD
$3409.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for high-performance applications, the high-speed counter module from Schneider Electric features eight channels, allowing for efficient processing of input signals in demanding environments. With an operational temperature range of -25 to 70 C, this module is built to withstand a variety of conditions, making it a reliable choice for industrial automation tasks. Its sophisticated design ensures precision in counting and processing fast signal changes, which is essential for applications that require immediate response and accuracy. Whether you're setting up a complex control system or integrating it into existing infrastructure, this module provides the robustness and versatility needed for effective performance.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Complementary Attributes
- Maximum Counting Frequency
- 10000 Hz
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Counter Functions
- count events, up/down counter, loop (modulo) counting, frequency meter, down counting, 32-bit counter counting
- Current State 0 Guaranteed
- < 1.5 mA, < 1.5 mA
- Environmental Characteristic
- gas resistant class Gx ISA S71.04gas resistant class 3C4 IEC 60721-3-3dust resistant class 3S4 IEC 60721-3-3, sand resistant class 3S4 IEC 60721-3-3, salt resistant level 2 IEC 68252mold growth resistant class 3B2 IEC 60721-3-3, fungal spore resistant class 3B2 IEC 60721-3-3hazardous location class I division 2
- Voltage State 0 Guaranteed
- < 5 V DC, < 5 V DC< 5 V DC, < 5 V DC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0193530182, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0394092606, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 83 kg CO2 eq., 83.2725251397
- Local Publishable Date
- 2026-01-29
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Electrical Connection
- 1 connector 20 pins
- Module Format
- standard
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Specific Application
- for severe environments
- Returnability
- No
- Sustainable Packaging
- Yes
- Voltage State 1 Guaranteed
- 11...30 V DC
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 127.7208
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Current Consumption200 mA 3.3 V DC bus, 80 mA 24 V DC sensor
Current State 1 Guaranteed> 2 mA (for U >= 11V), > 2 mA (for U >= 11V)> 2 mA (for U >= 11V), > 2 mA (for U >= 11V)
Protective Treatmentconformal coating, conformal coating
Certificate AgencyCE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22IECEx zone 2/22
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.2626147879
Carbon Footprint Of The Manufacturing Phase [A1 To A3]19 kg CO2 eq., 18.9099151515
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2311046EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2438
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationIndustrial
Cycle Time5 ms
Isolation Voltage1500 V 60 s
Number Of Channels8
Product Or Component Typecounter module
Range Of ProductModicon M340 automation platform
Software Versionv5.9.4
Total Lifecycle Carbon Footprint103 kg CO2 eq.
Pep CodeENVPEP2311046EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Recyclability Potential In %3
Package Weight(Lbs)148.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 102.5038173578
- Environmental Disclosure
- ENVPEP2311046EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 10-95 % without condensation
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2311046EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2311046EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- counter module
Range Of ProductModicon M340 automation platform
ETIM
- ETIM 8
- EC001422
ETIM 9EC001422
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Compatibility
- 19.2-30 V 2-wire/3-wire proximity sensorincremental encoder with push-pull outputs, 10...30 V totem pole
- Input Type
- high speed
- Input Voltage Limits
- 24 V DC
Input Current4.5 mA
Input Voltage24 V DC type 3
Number Of Inputs2-2 single mode)3-3 special dual phase mode)
Accessories
Loading carousel layout...
Loading carousel layout...
Similar Products
Loading carousel layout...
