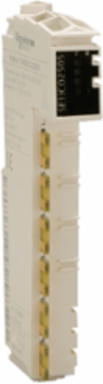

Schneider Electric TM5SE1SC10005 Modicon TM5 Counter Module, 1 Incremental HSC, 1MHz, IP20
- MPN: TM5SE1SC10005
- PPN: SCH-TM5SE1SC10005
CAD
$639.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This counter module provides 1 HSC incremental input. Its counting frequency is 1MHz per channel. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. The maximum cycle time is 2ms and counter input resolution is 32bit. It is an IP20 rated product. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Austria, Brazil, France, Italy, United States
Depth75 mm
Complementary Attributes
- Maximum Cycle Time
- 2 ms
Maximum Power Dissipation In W1.51 W
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Current Consumption
- 2 mA 5 V DC bus, 63 mA 24 V DC input/output
- Resistance To Fast Transients
- 1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 shielded cable)2 kV IEC 61000-4-4 power lines)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.013655386248670175, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.026934615911367
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 61 kg CO2 eq., 60.910953263776626
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Counting Frequency
- 1 MHz
- Encoder Type
- 1 absolute encoder
- Isolation
- 500 Vrms AC insulation between channel and bus
- Network Type
- DC
- Optical Interface Present
- false
- Product Or Component Type
- counter module
- Radio Standard Gprs
- false
- Radio Standard Umts
- false
- Resistance To Electromagnetic Fields
- 1 V/m 2...2.7 GHz IEC 61000-4-310 V/m 80...2000 MHz IEC 61000-4-3
- Returnability
- No
- Software Version
- v6.2.5-6
- Supporting Protocol For Can
- false
- Supporting Protocol For Devicenet Safety
- false
- Supporting Protocol For Foundation Fieldbus
- false
- Supporting Protocol For Knx
- false
- Supporting Protocol For Modbus
- false
- Supporting Protocol For Profibus
- false
- Supporting Protocol For Profinet Io
- false
- Supporting Protocol For Safetybus P
- false
- Supporting Protocol For Suconet
- false
- Total Lifecycle Carbon Footprint
- 62 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Certified For Ul Hazardous Location Class Ii
- false
- Certified For Ul Hazardous Location Division 1
- false
- Dc Supply Voltage
- 24-24 V
- Contactor Control Function Block
- false
- Function Block Access Control
- false
- Function Block Automatic Reset
- false
- Function Block Emergency Stop
- false
- Function Block Restart Blockage
- false
- Pep Code
- ENVPEP1511026EN
- Pep Verification Date
- 2025-12-25
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Austria, AT
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Turkey, TR
- Height Nominal
- 99 mm
- Disturbance Radiated/Conducted
- CISPR 11
- Appendant Operation Agent (Ex Ib)
- false
- Certified For Ul Hazardous Location Group B (Hydrogen)
- false
- Certified For Ul Hazardous Location Group D (Propane))
- false
- Certified For Ul Hazardous Location Group F (Carbonaceous Dust)
- false
- Function Block 2-hand Switching
- false
- Performance Level According To En Iso 13849-1
- none
- Radio Standard Wi-fi 802.11
- false
- Suitable For Multi-axis Positioning
- false
- Suitable For Single-axis Positioning
- true
- Supporting Protocol For Data-highway
- false
- Supporting Protocol For Interbus-safety
- false
- Wall Mounting/Direct Mounting Possible
- false
- Package Weight(Lbs)
- 39.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Function Of Module2 x 24 V DC sink auxiliary inputs, 24 V DC encoder power supply
Certificate AgencyGOST-R, C-tick, CSA, cULus
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.06221197119903745, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.3128094835892783
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1511026EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
Bearing Track Assembly Possibletrue
Electromagnetic CompatibilityEN/IEC 61000-4-6
Front Installation Possiblefalse
MarkingCE
Number Of Functions2
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Radio Standard Bluetoothfalse
Radio Standard Gsmfalse
Range Of ProductModicon TM5
Resistance To Electrostatic Discharge4 kV on contact IEC 61000-4-28 kV in air IEC 61000-4-2
Shock Resistance15 gn 11 ms
Supporting Protocol For Asifalse
Supporting Protocol For Devicenetfalse
Supporting Protocol For Ethercatfalse
Supporting Protocol For Interbusfalse
Supporting Protocol For Lonfalse
Supporting Protocol For Other Bus Systemsfalse
Supporting Protocol For Profinet Cbafalse
Supporting Protocol For Profisafefalse
Supporting Protocol For Sercosfalse
Sustainable PackagingNo
Vibration Resistance1 gn 8.4-150 Hz DIN rail3.5 mm 5-8.4 Hz DIN rail
Certified For Ul Hazardous Location Class Ifalse
Certified For Ul Hazardous Location Class Iiifalse
Certified For Ul Hazardous Location Division 2false
Fieldbus Connection Over Separate Bus Coupler Possiblefalse
Frequency Measurementtrue
Function Block Affirm Pushbuttonfalse
Function Block Contactless Working Protection Installationfalse
Function Block Operating Mode Selectionfalse
System Accessoryfalse
Database Version2024-01
Pcr VersionPCR-4-ed4-FR-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo manage digital or analog I/O signal 100% of the time for 10 years with dissipation power of 1.51W.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh132.276
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal12.5 mm
Appendant Operation Agent (Ex Ia)false
Certified For Ul Hazardous Location Group A (Acetylene)false
Certified For Ul Hazardous Location Group C (Ethylene))false
Certified For Ul Hazardous Location Group E (Metal Dusts)false
Certified For Ul Hazardous Location Group G (Non Conductive Dust)false
Io-link Master Presentfalse
Rack-assembly Possiblefalse
Suitable For Multi-axis Controlfalse
Suitable For Single-axis Controllertrue
Supporting Protocol For As-interface Safety At Workfalse
Supporting Protocol For Ethernet/Ipfalse
Supporting Protocol For Tcp/Ipfalse
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code9029108000
Environment Attributes Main
- Ambient Air Temperature For Operation
- 0-55 °C without derating horizontal installation), 0-60 °C with derating factor horizontal installation), 0-50 °C vertical installation)
- Ip Degree Of Protection
- IP20IEC 61131-2, IP20
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1511026EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Relative Humidity
- 5-95 % without condensation
- Pep Code
- ENVPEP1511026EN
- Pcr Version
- PCR-4-ed4-FR-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Product Compatibilitylogic controller, motion controller
Reach Free ShvcYes
China Rohs RegulationX
Carbon Footprint62.32656472072498
Environmental DisclosureENVPEP1511026EN
Operating Altitude0...6561.68 ft (0...2000 m)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Storage Altitude0-3000 m
Pep Verification Date2025-12-25
Psr VersionPSR-0005-ed3-EN-2023 06 06
General Attributes
- Product Or Component Type
- counter module
Range Of ProductModicon TM5
ETIM
- ETIM 8
- EC001601
ETIM 9EC001601
Surge Protection And Filtering Attributes
- Surge Withstand
- 0.5 kV differential mode IEC 61000-4-51 kV common mode IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Counter Inputs Resolution
- 32 bits
- Discrete Input Logic
- sink
- Discrete Input Voltage
- 24 V DC
- Input Resistance
- 7.19 kOhm
Discrete Input Current3.3 mA 24 V
Discrete Input Number1
Input Compatibility1 absolute encoder (5 V)
