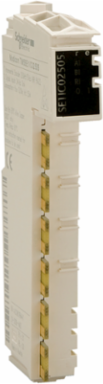

Schneider Electric TM5SE2IC01024 Modicon TM5 Counter Module, 2 Inputs, 100 kHz, IP20, 0.025 kg
Schneider Electric TM5SE2IC01024 Modicon TM5 Counter Module, 2 Inputs, 100 kHz, IP20, 0.025 kg
- MPN: TM5SE2IC01024
- PPN: SCH-TM5SE2IC01024
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$651.97/ EA
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The counter module provides 2 HSC incremental encoder inputs. Its counting frequency is 100kHz per channel. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. The maximum cycle time is 2ms and counter inputs resolution is 16bit/32bit. It is an IP20 rated product. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Specifications
Environment
- Product Certifications
- GOST-R || CSA || C-Tick || cULus
- Standards
- UL 508 || CSA C22.2 No 142 || CSA C22.2 No 213 || IEC 61131-2
- Ambient Air Temperature For Operation
- 0-55 °C without derating horizontal installation) || 0-60 °C with derating factor horizontal installation) || 0-50 °C vertical installation)
- Vibration Resistance
- 1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
- Disturbance Radiated/Conducted
- CISPR 11
- Pollution Degree
- 2 IEC 60664
- Ambient Air Temperature For Storage
- -25-70 °C
- Resistance To Electrostatic Discharge
- 4 kV on contact IEC 61000-4-2 || 8 kV in air IEC 61000-4-2
- Operating Altitude
- 0...2000 m
Resistance To Electromagnetic Fields1 V/m 2...2.7 GHz IEC 61000-4-3 || 10 V/m 80...2000 MHz IEC 61000-4-3
Storage Altitude0-3000 m
Ip Degree Of ProtectionIP20IEC 61131-2
Shock Resistance15 gn 11 ms
Electromagnetic CompatibilityEN/IEC 61000-4-6
Surge Withstand0.5 kV differential mode IEC 61000-4-5 || 1 kV common mode IEC 61000-4-5
Relative Humidity5-95 % without condensation
Resistance To Fast Transients1 kV IEC 61000-4-4 I/O) || 1 kV IEC 61000-4-4 shielded cable) || 2 kV IEC 61000-4-4 power lines)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1511026EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1511026EN
Complementary
- Maximum Cycle Time
- 2 ms
- Marking
- CE
- Counter Inputs Resolution
- 16 bits/32 bits
- Input Compatibility
- 2 incremental encoders (24 V)
- Maximum Power Dissipation In W
- 1.51 W
- Isolation
- 500 Vrms AC insulation between channel and bus
- Range Compatibility
- Modicon LMC058 || Modicon M258
Discrete Input Voltage24 V DC
Net Weight0.025 kg
Current Consumption2 mA 5 V DC bus || 63 mA 24 V DC input/output
Input Resistance18.4 kOhm
Discrete Input Logicsink
Discrete Input Current1.3 mA 24 V
Product Compatibilitylogic controller || motion controller
Specifications
- Range Of Product
- Modicon TM5
- Counting Frequency
- 100 kHz
- Discrete Input Number
- 2
- Function Of Module
- 2 x 24 V DC auxiliary inputs || 24 V DC encoder power supply
Encoder Type2 incremental encoders
Product Or Component Typecounter module
Product Specific Applicationperiod measurement || frequency generator || frequency meter || downcounting || upcounting || axis following with encoder
