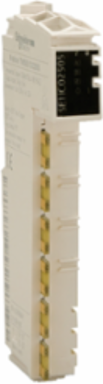

Schneider Electric TM5SE1IC02505 Modicon TM5 Counter Module, 1 HSC Incremental, 250 kHz Counting Frequency

MPN: TM5SE1IC02505
PPN: SCH-TM5SE1IC02505
UNSPSC: 32151703

$1325.12

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This counter module provides 1 HSC incremental input. Its counting frequency is 250kHz per channel. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. The maximum cycle time is 2ms and counter input resolution is 16bit/32bit. It is an IP20 rated product. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Features

Modicon TM5 system provides flexible/scalable configurations of remote/distributed IO islands to Modicon controllers
Fully developped for Packaging, Material Working , Material Handling and Machine Control Solutions
Modicon TM5 system offers a wide variety of IO enabling to meet desired configuration, while reducing costs
Modicon TM5 is characterized by easy cabling and maintenance

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Austria
Depth	75 mm

Weight	40 g

Complementary Attributes

Maximum Cycle Time	2 ms

Maximum Power Dissipation In W	1.51 W

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Current Consumption	2 mA 5 V DC bus, 63 mA 24 V DC input/output
Resistance To Fast Transients	1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 shielded cable)2 kV IEC 61000-4-4 power lines)
Carbon Footprint Of The Distribution Phase A4	0.014005524357610438, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.027625247088581543, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	61 kg CO2 eq., 60.910953263776626
Local Publishable Date	2026-01-12
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Electromagnetic Compatibility	EN/IEC 61000-4-6
Isolation	500 Vrms AC insulation between channel and bus
Number Of Functions	2
Product Or Component Type	counter module
Resistance To Electromagnetic Fields	1 V/m 2...2.7 GHz IEC 61000-4-310 V/m 80...2000 MHz IEC 61000-4-3
Returnability	No
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	62 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Height Nominal	99 mm
Disturbance Radiated/Conducted	CISPR 11
Customs Code	9029108000
Functional Unit Description	To manage digital or analog I/O signal 100% of the time for 10 years with dissipation power of 1.51W.
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	132.276

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Function Of Module	2 x 24 V DC RS422 sink auxiliary inputs, 24 V DC encoder power supply
Certificate Agency	cULus, C-tick, GOST-R, CSA
Carbon Footprint Of The End Of Life Phase C1 To C4	0.1 kg CO2 eq., 0.06380714994773072
Carbon Footprint Of The Manufacturing Phase A1 To A3	1 kg CO2 eq., 1.3464712652197728
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Field Service Division	IDIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1511026EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Advanced
Market Segmentation	Industrial
Counting Frequency	250 kHz
Encoder Type	1 incremental encoder
Marking	CE
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Modicon TM5
Resistance To Electrostatic Discharge	4 kV on contact IEC 61000-4-28 kV in air IEC 61000-4-2
Shock Resistance	15 gn 11 ms
Sustainable Packaging	No
Vibration Resistance	1 gn 8.4-150 Hz DIN rail3.5 mm 5-8.4 Hz DIN rail
Dc Supply Voltage	24-24 V
Data Source	extrapolated product
Width Nominal	12.5 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	0-55 °C without derating horizontal installation), 0-60 °C with derating factor horizontal installation), 0-50 °C vertical installation)
Product Compatibility	motion controller, logic controller
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI1511026EN
Eu Rohs Directive	Compliant
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Storage Altitude	0-3000 m
Pep Verification Date	2025-12-25
Psr Version	PSR-0005-ed3-EN-2023 06 06

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	62.36286245039032
Environmental Disclosure	ENVPEP1511026EN
Ip Degree Of Protection	IP20IEC 61131-2
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Relative Humidity	5-95 % without condensation
Pep Code	ENVPEP1511026EN
Pcr Version	PCR-4-ed4-FR-2021 09 06
Type Of Verification For The Pep	Independent internal review
