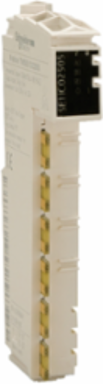

Schneider Electric TM5SE1IC01024 Modicon TM5 Counter Module, 100 kHz, 1 Incremental Encoder Input, IP20
- MPN: TM5SE1IC01024
- PPN: SCH-TM5SE1IC01024
CAD
$410.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This counter module provides 1 incremental encoder input. Its counting frequency is 100kHz per channel. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. The maximum cycle time is 2ms and counter input resolution is 16bit/32bit. It is an IP20 rated product. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Austria, Brazil, France
Depth75 mm
Complementary Attributes
- Maximum Cycle Time
- 2 ms
Maximum Power Dissipation In W1.41 W
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Current Consumption
- 2 mA 5 V DC bus, 58 mA 24 V DC input/output
- Product Specific Application
- downcounting, frequency generator, upcounting, period measurement, frequency meter, axis following with encoder
- Resistance To Electrostatic Discharge
- 4 kV on contact IEC 61000-4-2, 8 kV in air IEC 61000-4-2
- Vibration Resistance
- 1 gn 8.4-150 Hz DIN rail, 3.5 mm 5-8.4 Hz DIN rail
- Carbon Footprint Of The Distribution Phase [A4]
- 0.013305248139729916, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.026243984734152466, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 57 kg CO2 eq., 56.8771152992881
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1511026EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Counting Frequency
- 100 kHz
- Encoder Type
- 1 incremental encoder
- Marking
- CE
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Modicon TM5
- Shock Resistance
- 15 gn 11 ms
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1511026EN
- Pep Verification Date
- 2025-12-25
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Width Nominal
- 12.5 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Function Of Module2 x 24 V DC auxiliary inputs, 24 V DC encoder power supply
Resistance To Electromagnetic Fields1 V/m 2...2.7 GHz IEC 61000-4-3, 10 V/m 80...2000 MHz IEC 61000-4-3
Resistance To Fast Transients1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 shielded cable), 2 kV IEC 61000-4-4 power lines)
Certificate AgencyCSA, C-tick, GOST-R, cULus
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.06061679245034418
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.279147701958784
Local Data StatusPublishable
Return IndicatorN
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Electromagnetic CompatibilityEN/IEC 61000-4-6
Isolation500 Vrms AC insulation between channel and bus
Number Of Functions2
Product Or Component Typecounter module
ReturnabilityNo
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint58 kg CO2 eq.
Dc Supply Voltage24-24 V
Database Version2024-01
Pcr VersionPCR-4-ed4-FR-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo manage digital or analog I/O signal 100% of the time for 10 years with dissipation power of 1.51W.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Austria, AT
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Turkey, TR
Height Nominal99 mm
Disturbance Radiated/ConductedCISPR 11
Package Weight(Lbs)38.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- 0-55 °C without derating horizontal installation), 0-60 °C with derating factor horizontal installation), 0-50 °C vertical installation)
- Product Compatibility
- logic controller, motion controller
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1511026EN
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Storage Altitude
- 0-3000 m
- Pep Verification Date
- 2025-12-25
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint58.25642902657111
Environmental DisclosureENVPEP1511026EN
Ip Degree Of ProtectionIP20IEC 61131-2
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity5-95 % without condensation
Pep CodeENVPEP1511026EN
Pcr VersionPCR-4-ed4-FR-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- counter module
Range Of ProductModicon TM5
ETIM
- ETIM 8
- EC001601
ETIM 9EC001601
Surge Protection And Filtering Attributes
- Surge Withstand
- 0.5 kV differential mode IEC 61000-4-5, 1 kV common mode IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Counter Inputs Resolution
- 16 bits/32 bits
- Discrete Input Logic
- sink
- Discrete Input Voltage
- 24 V DC
- Input Resistance
- 7.19 kOhm
Discrete Input Current3.3 mA 24 V
Discrete Input Number1
