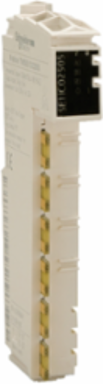

Schneider Electric TM5SE1MISC20005 Counter Module 4 MHz Encoder Emulation, 2 Input, IP20, 0.025 kg
- MPN: TM5SE1MISC20005
- PPN: SCH-TM5SE1MISC20005
CAD
$945.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric Counter Module is engineered for versatile functionality with its 4 MHz encoder emulation and two input channels. This compact module is designed to seamlessly integrate into your automation systems, providing robust performance and reliability for various applications. With an IP20 rating, it ensures effective protection against foreign objects, making it suitable for use in controlled environments. Weighing just 0.025 kg, this module exemplifies efficiency without compromising on quality, positioning itself as a valuable addition to any industrial setup needing precise counting capabilities.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Austria, Brazil
Depth75 mm
Complementary Attributes
- Maximum Cycle Time
- 2 ms
Maximum Power Dissipation In W1.51 W
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Current Consumption
- 2 mA 5 V DC bus, 63 mA 24 V DC input/output
- Resistance To Fast Transients
- 1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 shielded cable)2 kV IEC 61000-4-4 power lines)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.01614136682214603, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.03183809726959023, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 61 kg CO2 eq., 60.91095326377661
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Electromagnetic Compatibility
- EN/IEC 61000-4-6
- Isolation
- 500 Vrms AC insulation between channel and bus
- Number Of Functions
- 1
- Product Or Component Type
- counter module
- Resistance To Electromagnetic Fields
- 1 V/m 2...2.7 GHz IEC 61000-4-310 V/m 80...2000 MHz IEC 61000-4-3
- Returnability
- No
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 63 kg CO2 eq.
- Dc Supply Voltage
- 24-24 V
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-FR-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To manage digital or analog I/O signal 100% of the time for 10 years with dissipation power of 1.51W.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Austria, AT
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Turkey, TR
- Height Nominal
- 99 mm
- Disturbance Radiated/Conducted
- CISPR 11
- Package Weight(Lbs)
- 39.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Function Of Module2 x 24 V DC RS422 sink auxiliary inputs, 24 V DC encoder power supply
Certificate AgencycULus, C-tick, GOST-R, CSA
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.07353774031475965
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.551808133165788
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1511026EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationIndustrial
Counting Frequency4 MHz
Encoder Type1 incremental encoder
MarkingCE
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductModicon TM5
Resistance To Electrostatic Discharge4 kV on contact IEC 61000-4-28 kV in air IEC 61000-4-2
Shock Resistance15 gn 11 ms
Sustainable PackagingNo
Vibration Resistance1 gn 8.4-150 Hz DIN rail3.5 mm 5-8.4 Hz DIN rail
Pep CodeENVPEP1511026EN
Pep Verification Date2025-12-25
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal12.5 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code9029108000
Environment Attributes Main
- Ambient Air Temperature For Operation
- 0-55 °C without derating horizontal installation), 0-60 °C with derating factor horizontal installation), 0-50 °C vertical installation)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI1511026EN
- Eu Rohs Directive
- Under investigation
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Free Of Svhc
- Yes
- Relative Humidity
- 5-95 % without condensation
- Pep Code
- ENVPEP1511026EN
- Pcr Version
- PCR-4-ed4-FR-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Reach Free ShvcYes
Carbon Footprint62.5842786013489
Environmental DisclosureENVPEP1511026EN
Ip Degree Of ProtectionIP20IEC 61131-2
Packaging Made With Recycled CardboardNo
Product Compatibilitymotion controller
Reach RegulationFree of Substances of Very High Concern above the threshold
Storage Altitude0-3000 m
Pep Verification Date2025-12-25
Psr VersionPSR-0005-ed3-EN-2023 06 06
General Attributes
- Product Or Component Type
- counter module
Range Of ProductModicon TM5
ETIM
- ETIM 8
- EC001601
ETIM 9EC001601
Surge Protection And Filtering Attributes
- Surge Withstand
- 0.5 kV differential mode IEC 61000-4-51 kV common mode IEC 61000-4-5
Input Attributes
- Input Filtering
- <= 200 ms, <= 200 ms
- Discrete Input Current
- 24 V
- Discrete Input Number
- 2
Counter Inputs Resolution16 bits/32 bits
Discrete Input Logicsink
Discrete Input Voltage24 V DC
