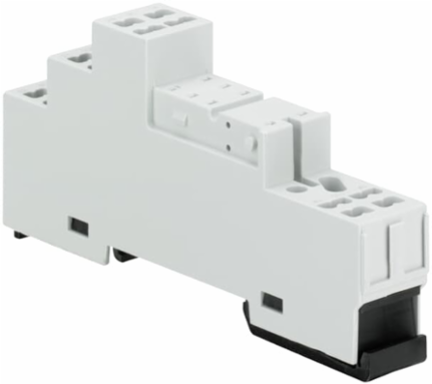

ABB 1SVR405650R0200 CR-PLC Logical Socket for 1c/o/2c/o CR-P Relays, 45.2 mm Height, 16 mm Width
- MPN: 1SVR405650R0200
- UPC: 662019828442
- PPN: ABB-1SVR405650R0200
- UNSPSC: 39122335
CAD
$13.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The CR-PLC socket is from the CR-P (pcb) relay range. The logical socket is suitable for CR-P relays with 1 or 2 c/o (SPDT) output contacts. The socket has spring connection terminals. Pluggable function modules, holder and marker are available as accessories.
Specifications
Dimensions
- Product Net Width
- 16 mm
- Product Net Depth / Length
- 97 mm
Product Net Height45.2 mm
Product Net Weight0.042 kg
Technical
- Function
- Accessory for interface relays CR-P
- Sub-Function 2
- Logical socket for pcb relay 1 c/o or 2 c/o
- Output
- none
- Rated Operational Current AC-12 (Ie)
- (230 V) 2 A
- Mounting Position
- 1
Sub-FunctionSocket for PCB relays
Rated Operational Voltage250 V
Terminal TypeSpring Terminals
Rated Insulation Voltage (Ui)5 V
StandardsCAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61984UL 508
Classifications
- Object Classification Code
- K
- eClass
- V11.0 : 27371603
ETIM 9EC001456 - Relay socket
Environmental
- Ambient Air Temperature
- Operation -40 ... +70 °CStorage -40 ... +70 °C
- RoHS Status
- Following EU Directive 2011/65/EU
Maximum Operating Altitude Permissible2000 m
Technical UL/CSA
- Connecting Capacity Main Circuit UL/CSA
- Flexible with Ferrule 2x 16 AWGRigid 2x 24-16 AWGStranded 2 x 24-16 AWG
Flammability According to UL94V-0
Ordering
- Minimum Order Quantity
- 10 piece
Customs Tariff Number85366990
