ABB

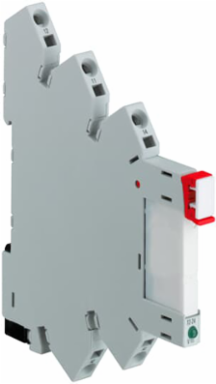

ABB 1SVR405521R5200 CR-S048/060VADC1SZ Relay Socket, 48-60V AC/DC, 250V AC, 6A, Spring Terminals

CR-S048/060VADC1SZ Relay Socket, 48-60V AC/DC, 250V AC, 6A, Spring Terminals
  • MPN: 1SVR405521R5200
  • PPN: ABB-1SVR405521R5200
  • UNSPSC: 39122335

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$18.72/ EA

Description

CR-S048/060VADC1SZ Socket 1c/o, A1-A2=48-60VAC/DC, 250VAC spring terminals

Specifications

Dimensions

Product Net Width
6.2 mm
Product Net Depth / Length
94.7 mm
Product Net Height76.6 mm
Product Net Weight0.025 kg

Technical

Function
Accessory for interface relays CR-S
Rated Control Supply Voltage (Us)
48 ... 60 V AC/DC
Terminal Type
Spring Terminals
Rated Insulation Voltage (Ui)
250 V
Connecting Capacity
Flexible 2.5 mm²Rigid 2.5 mm²
Wire Stripping Length
7 mm
Mounting on DIN Rail
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Sub-FunctionSocket
Rated Operational Voltage250 V AC
Rated Operational Current AC-12 (Ie)(230 V) 6 A
Degree of ProtectionIP20Terminals IP20
Tightening Torque0.5 N·m
Mounting Position1
StandardsCAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61984UL 508

Classifications

Object Classification Code
K
eClass
V11.0 : 27371603
E-Number (Sweden)
4001395
ETIM 9EC001456 - Relay socket
E-Number (Finland)2712365

Environmental

Ambient Air Temperature
Operation -40 ... +70 °CStorage -40 ... +85 °C
RoHS Status
Following EU Directive 2011/65/EU
Maximum Operating Altitude PermissibleWithout Derating 2000 m

Technical UL/CSA

Connecting Capacity UL/CSA
Flexible 14 AWGRigid 14 AWG
Connecting Capacity Main Circuit UL/CSA
Flexible with Ferrule 20 ... 14 AWGRigid 2x 20-14 AWGStranded 20 ... 14 AWG
Tightening Torque UL/CSA4.42 in·lb
Flammability According to UL94V-0

Ordering

Minimum Order Quantity
10 piece
Customs Tariff Number85369010
