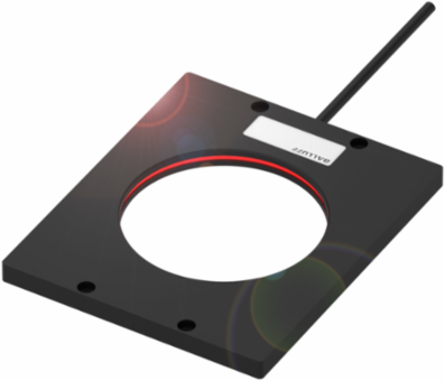

Balluff BAE LX-VS-DR090 Dark Field Light, 617 nm Wavelength, 2250 Lux, Ø 90 mm Illumination Area
Balluff BAE LX-VS-DR090 Dark Field Light, 617 nm Wavelength, 2250 Lux, Ø 90 mm Illumination Area
- MPN: BAE LX-VS-DR090
- PPN: BAL-BAE00AM
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1054.67/ EA
Description
Illuminate your workspace with the Balluff Dark Field Light, designed to provide exceptional visibility with its 617 nm wavelength and an impressive illuminance of 2250 Lux at a distance of 0.1 m. This robust LED light features a generous illumination area of Ø 90 mm, making it ideal for various applications where precision and clarity are essential. Crafted from durable aluminum with an anodized black finish and PMMA, it is built to withstand ambient temperatures ranging from -10 to 55 °C, ensuring reliable performance in diverse environments. With a compact design measuring 130 x 9.5 x 155 mm and an IP40 rating, this dark field light not only meets stringent safety standards but also integrates seamlessly into your setup with its 4-pin M12x1 male connector.
Specifications
- Wavelength
- 617 nm
- Current Draw Max.
- 416 mA
- Light Type
- LED Red light
- Dimensions
- 130 x 9.5 x 155 mm
- Ingress Protection
- IP40
- Material
- Aluminum anodized black; PMMA
- Country of Origin
- Germany
Illuminance2250 Lux
Rated Operating Voltage24 V DC
Illumination AreaØ 90 mm
Operating Temperature Range-10 to 55 °C
ConnectionCable with connector, M12x1 Male, 4-pin, 0.3 m
ComplianceCE, UKCA, WEEE
VersionDark field light
