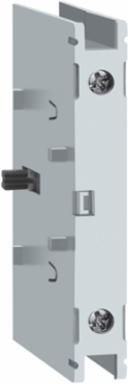

Schneider Electric VLS1P100R2S TeSys VLS Disconnect Switch, 100A, Size 2, DIN Rail, IP20
- MPN: VLS1P100R2S
- PPN: SCH-VLS1P100R2S
CAD
$80.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This fourth pole adder can be added to a VLS3P100R2 door mount switch. This fourth pole adder for DIN rail mounted devices can be mounted on the right or left hand side. This simultaneous closing adder pole has one normally open contact The operational voltage of this fourth pole adder module is 600 Vac 50/60 Hz. This fourth pole adder module has a 100 A current rating. Fourth pole adder pole is 3.94 inches tall, 0.91 inches wide and 1.73 inches deep. It weighs 0.24 lbs. This fourth pole adder block is cULus Listed and meets IEC 60947-3 requirements.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, Italy
Depth43.9 mm
Physical Attributes
- Color
- Gray
Complementary Attributes
- Rated Operational Power In W
- 55 kW 400 V AC-23A)45 kW 500 V AC-23A), 45 kW 690 V AC-23A)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mechanical Robustness
- vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6, shocks 11 ms Ea 15 gn) IEC 60068-2-27
- Certificate Agency
- cULus, GL
- Connections - Terminals
- power circuit screw clamp terminals 50-50 mm² solid, power circuit screw clamp terminals 70-70 mm² flexible - without cable end
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contact Operation
- simultaneous
- Device Short Name
- VLS1P
- Energy Efficiency Optimized
- False
- Intermittent Duty Class
- class 120 - 60 %
- Mechanical Durability
- 30000 cycles
- Network Frequency
- 50/60 Hz
- Number Of Poles
- 1P
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- TeSys
- Suitability For Isolation
- yes
- Tightening Torque
- power circuit 5-6 N.m screw clamp terminals
- Height Nominal
- 100 mm
- [Icm] Rated Short-circuit Making Capacity
- 3550 A 690 V
- [Ith] Conventional Free Air Thermal Current
- 100 A (at 55 °C)
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Rated Conditional Short-circuit Current
- 50 kA 400 V 100 A gG
- Package Weight(Lbs)
- 130.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mounting Locationright, left
[Ie] Rated Operational Current100 A AC-22A Ue: 500 V, 100 A AC-22A Ue: 690 V, 100 A Ue: 600 V UL98100 A AC-21A Ue: 400 V, 100 A AC-21A Ue: 500 V, 100 A AC-21A Ue: 690 V, 100 A AC-22A Ue: 400 V, 100 A AC-23A Ue: 400 V, 80 A AC-23A Ue: 500 V, 47 A AC-23A Ue: 690 V
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2541
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility CodeVLS
Contacts Type And Composition1 NO
Electrical Durability30000 cycles AC-21
Fire Resistance960 °C IEC 60695-2-11
Making Capacity150 A 690 V AC-21A300 A 690 V AC-22A1000 A 690 V AC-23A
Mounting SupportDIN rail
Network TypeAC
Performance Levelhigh performance
Product Or Component Typeadditional pole
ReturnabilityYes
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal23 mm
[Icw] Rated Short-time Withstand Current2500 A 690 V 1 s
[Ithe] Conventional Enclosed Thermal Current100 A
[Uimp] Rated Impulse Withstand Voltage8 kV
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-25-55 °C, -25-55 °C
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- additional pole
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
