Schneider Electric VLS1P040R1S lectric VLS1P040R1 TeSys VLS Disconnect Switch, 40A, Size 1, DIN Rail Mounted
Schneider Electric VLS1P040R1S lectric VLS1P040R1 TeSys VLS Disconnect Switch, 40A, Size 1, DIN Rail Mounted
- MPN: VLS1P040R1S
- PPN: SCH-VLS1P040R1S
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$56.11/ EA
Description

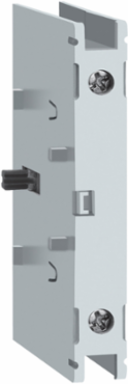

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This fourth pole adder can be added to a VLS3P016R1, VLS3P025R1, VLS3P032R1 or VLS3P040R1 DIN rail mount switch. This fourth pole adder for DIN rail mounted devices can be mounted on the right or left hand side. This simultaneous closing adder pole has one normally open contact The operational voltage of this fourth pole adder module is 600 Vac 50/60 Hz. This fourth pole adder module has a 40 A current rating. The screw clamp terminals will accept 18 AWG to 6 AWG wire. Fourth pole adder is 3.07 inches tall, 0.47 inches wide and 1.72 inches deep. It weighs 0.09 lbs. This fourth pole adder block is cULus Listed and meets IEC 60947-3 requirements.
Specifications
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Complementary
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Intermittent Duty Class
- class 120 - 60 %
- Mounting Support
- DIN rail
- Net Weight
- 0.04 kg
- Making Capacity
- 60 A 690 V AC-21A || 120 A 690 V AC-22A || 400 A 690 V AC-23A
- Connections - Terminals
- power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 16-16 mm² flexible - without cable end
- Electrical Durability
- 100000 cycles AC-21A
- Mechanical Durability
- 100000 cycles
- Width
- 12 mm
- Depth
- 43.6 mm
- Rated Operational Power In W
- 18.5 kW 400 V AC-23A) || 18.5 kW 500 V AC-23A) || 22 kW 690 V AC-23A)
- [Icw] Rated Short-Time Withstand Current
- 800 A 690 V 1 s
Height78 mm
[Ith] Conventional Free Air Thermal Current40 A (at 55 °C)
[Ithe] Conventional Enclosed Thermal Current40 A
[Uimp] Rated Impulse Withstand Voltage8 kV
Mounting Locationleft || right
[Icm] Rated Short-Circuit Making Capacity1128 A 690 V
[Ie] Rated Operational Current40 A Ue: 600 V UL 508 || 40 A AC-21A Ue: 400 V || 40 A AC-21A Ue: 500 V || 40 A AC-21A Ue: 690 V || 40 A AC-22A Ue: 400 V || 40 A AC-22A Ue: 500 V || 40 A AC-22A Ue: 690 V || 40 A AC-23A Ue: 400 V || 25 A AC-23A Ue: 500 V || 25 A AC-23A Ue: 690 V
Colourgrey
Tightening Torquepower circuit 1.8-2 N.m screw clamp terminals
Breaking Capacity60 A 690 V AC-21A) || 120 A 690 V AC-22A) || 320 A 690 V AC-23A)
Rated Conditional Short-Circuit Current50 kA 400 V 40 A gG
Specifications
- Network Frequency
- 50/60 Hz
- Range Compatibility
- TeSys TeSys VARIO LS VLS3P
- Performance Level
- high performance
- Contacts Type And Composition
- 1 NO
- Contact Operation
- simultaneous
- Device Short Name
- VLS1P
Network TypeAC
Product Or Component Typeadditional pole
RangeTeSys
Suitability For Isolationyes
Poles Description1P
Environment
- Product Certifications
- cULus || GL
- Standards
- UL 508 || CSA C22.2 No 14 || IEC 60947-3
- Mechanical Robustness
- vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27
Ambient Air Temperature For Operation-25-55 °C
Ip Degree Of ProtectionIP20 IEC 60529
Fire Resistance960 °C IEC 60695-2-11
