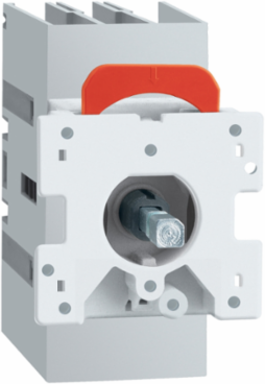

TeSys VLS Disconnect Switch, 25A, 15HP at 480VAC, Size 1, Door Mount
TeSys VLS Disconnect Switch, 25A, 15HP at 480VAC, Size 1, Door Mount
Schneider Electric

Schneider Electric VLS3P025D1 TeSys VLS Disconnect Switch, 25A, 15HP at 480VAC, Size 1, Door Mount

  • MPN: VLS3P025D1
  • PPN: SCH-VLS3P025D1
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $118.97

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    TeSys VLS Disconnect Switch, 25A, 15HP at 480VAC, Size 1, Door Mount

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Czechia, Italy

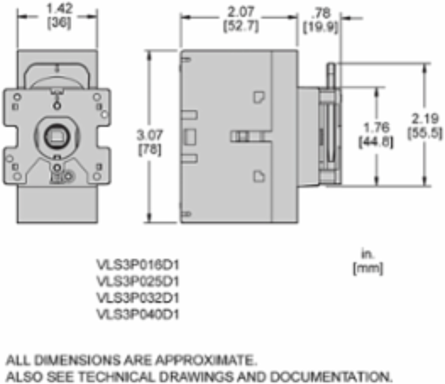

    Depth78 mm

    Physical Attributes

    Color
    Gray

    Complementary Attributes

    Maximum Horse Power Rating
    7.5 hp 200/208 V AC, 7.5 hp 240 V AC, 15 hp 480 V AC, 20 hp 600 V AC, 1.5 hp 120 V AC, 3 hp 240 V AC
    Rated Operational Power In W11 kW 400 V AC-23A), 15 kW 500 V AC-23A), 22 kW 690 V AC-23A)

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Making Capacity
    250 A 690 V AC-23A, 37.5 A 690 V AC-21A, 75 A 690 V AC-22A
    Certificate Agency
    cULus, GL
    [Ue] Rated Operational Voltage
    600 V AC 50/60 Hz UL 508, 690 V AC 50/60 Hz
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    No
    Field Service Division
    PPIBS
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Tier Id
    2
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Compatibility Code
    VLS
    Device Short Name
    VLS3P
    Energy Efficiency Optimized
    False
    Intermittent Duty Class
    class 120 - 60 %
    Mounting Support
    door
    Network Type
    AC
    Performance Level
    high performance
    Product Name
    TeSys VARIO LS
    Range
    TeSys
    Sustainable Packaging
    Yes
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Width Nominal
    45 mm
    [Icw] Rated Short-time Withstand Current
    800 A 690 V 1 s
    [Ithe] Conventional Enclosed Thermal Current
    25 A
    Rated Conditional Short-circuit Current
    50 kA 400 V 25 A gG
    Package Weight(Lbs)
    191.000 g
    Warranty (In Months)
    18
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    Market SegmentationCommercial, Industrial
    Mechanical Robustnessvibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6, shocks 11 ms Ea 15 gn) IEC 60068-2-27
    [Ie] Rated Operational Current25 A AC-22A Ue: 500 V, 25 A AC-22A Ue: 690 V, 25 A AC-23A Ue: 500 V, 25 A AC-23A Ue: 690 V25 A Ue: 600 V UL 508, 25 A AC-21A Ue: 400 V, 25 A AC-21A Ue: 500 V, 25 A AC-21A Ue: 690 V, 25 A AC-22A Ue: 400 V, 25 A AC-23A Ue: 400 V
    Connections - Terminalspower circuit screw clamp terminals 10-10 mm² solid, power circuit screw clamp terminals 16-16 mm² flexible - without cable end
    Local Publishable Date2026-04-04
    Stocking FlagN
    Device TypeLV equipment - LV switch - disconnector
    TraceabilityNo
    Average Life Duration15 year(s)
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date2541
    China Rohs In ScopeNo
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Awg GaugeAWG 18...AWG 6 copper
    Contacts Type And Composition3 NO
    Electrical Durability100000 cycles AC-21A
    Fire Resistance960 °C IEC 60695-2-11
    Mechanical Durability100000 cycles
    Network Frequency50/60 Hz
    Number Of Poles3P
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typeswitch body
    ReturnabilityYes
    Tightening Torquepower circuit 1.8-2 N.m screw clamp terminals
    Height Nominal73 mm
    [Icm] Rated Short-circuit Making Capacity1128 A 690 V
    [Ith] Conventional Free Air Thermal Current25 A (at 55 °C)
    [Uimp] Rated Impulse Withstand Voltage8 kV
    Nbr. Of Units In Pkg.1
    Take-backNo

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Ip Degree Of Protection
    IP20 conforming to IEC 60529
    Packaging Without Single Use Plastic
    Yes
    Reach Free Of Svhc
    Yes
    Ambient Air Temperature For Operation-25-55 °C, -25-55 °C
    Reach Free ShvcYes
    Toxic Heavy Metal FreeYes
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Product Compatibilityfuse RK5 30 A maximum: 5 kA at 600 V AC
    Reach RegulationFree of Substances of Very High Concern above the threshold

    General Attributes

    Product Or Component Type
    switch body

    ETIM

    ETIM 8
    EC000216
    ETIM 9EC000216
