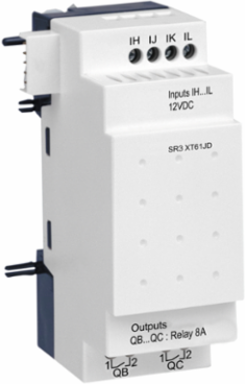

Telemecanique Sensors SR3XT61JD Discrete I/O Extension Module, 6 I/O, 12V DC, IP20/IP40
Telemecanique Sensors SR3XT61JD Discrete I/O Extension Module, 6 I/O, 12V DC, IP20/IP40
- MPN: SR3XT61JD
- PPN: SCH-SR3XT61JD
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$95.20/ EA
Description
This product is part of Smart Relay Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This discrete I/O extension module features 6 I/Os and 120 with ladder programming control scheme lines. It is a module with rated supply voltage of 12V DC and cycle time of 6ms to 90ms. It offers 4 resistive discrete inputs with voltage of 12V DC and 2 relay outputs with voltage ranges from 24V to 250V AC and 5V to 30V DC. It is an IP20 and IP40 rated product. It weighs 0.125kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-5, EN/IEC 61000-4-12 and EN/IEC 61000-4-4 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.
Specifications
Environment
- Product Certifications
- C-Tick || UL || GL || CSA || GOST
- Disturbance Radiated/Conducted
- class B EN 55022-11 group 1
- Environmental Characteristic
- EMC directive IEC 61000-6-2 || EMC directive IEC 61000-6-3 || EMC directive IEC 61000-6-4 || EMC directive IEC 61131-2 zone B || low voltage directive IEC 61131-2
- Pollution Degree
- 2 IEC 61131-2
- Relative Humidity
- 95-95 % without condensation or dripping water
- Operating Altitude
- 2000 m
StandardsIEC 61000-4-11 || IEC 61000-4-3 || IEC 61000-4-12 || IEC 60068-2-27 Ea || IEC 60068-2-6 Fc || IEC 61000-4-2 level 3 || IEC 61000-4-4 level 3 || IEC 61000-4-5 || IEC 61000-4-6 level 3
Ambient Air Temperature For Operation-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Ip Degree Of ProtectionIP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
Ambient Air Temperature For Storage-40-70 °C
Maximum Altitude Transport3048 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2011013EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI2011013EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Contacts Type And Composition
- NO relay output
- Discrete Input Type
- resistive
- Output Thermal Current
- 8 A for all 2 outputs relay output
- Number Or Control Scheme Lines
- 120-120 ladder
- Clock Drift
- 12 min/year 0-55 °C
- Current State 1 Guaranteed
- >= 2 mA I1...IA and IH...IR discrete input circuit) || >= 0.5 mA IB...IG used as discrete input circuit)
- Net Weight
- 0.125 kg
- Voltage State 0 Guaranteed
- <= 3 V IB...IG used as discrete input circuit || <= 2.4 V I1...IA and IH...IR discrete input circuit
- Electrical Durability
- AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1 || AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1
- Voltage State 1 Guaranteed
- >= 7 V IB...IG used as discrete input circuit || >= 5.6 V I1...IA and IH...IR discrete input circuit
- Current State 0 Guaranteed
- <= 0.2 mA IB...IG used as discrete input circuit) || <= 0.9 mA I1...IA and IH...IR discrete input circuit)
- Overvoltage Category
- III IEC 60664-1
- Tightening Torque
- 0.5 N.m
- Operating Rate In Hz
- 0.1 Hz at Ie)relay output || 10 Hz no load)relay output
- Discrete Input Number
- 4 IEC 61131-2 Type 1
- Reverse Polarity Protection
- with
- Checks
- program memory on each power up
Input Impedance14 kOhm IB...IG used as discrete input circuit || 2.7 kOhm I1...IA and IH...IR discrete input circuit
Number Of Outputs2 relay
Discrete Input Voltage12 V DC
Backup Time10 years 25 °C
Discrete Input Current4 mA
Response Time10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output
[Uimp] Rated Impulse Withstand Voltage4 kV EN/IEC 60947-1 and EN/IEC 60664-1
Output Voltage Limits24...250 V AC relay output) || 5...30 V DC relay output)
Connections - Terminalsscrew terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid
Input Compatibility3-wire proximity sensors PNP discrete input
Supply Voltage Limits10.4-14.4 V
Mechanical Durability10000000 cycles relay output
Switching Capacity In Ma>= 10 mA 12 V relay output)
Counting Frequency1 kHz discrete input
Cycle Time6-90 ms
[Us] Rated Supply Voltage12 V DC
Specifications
- Range Of Product
- Zelio Logic
Product Or Component Typediscrete I/O extension module
