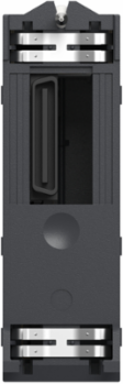

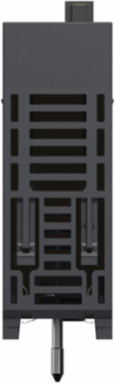

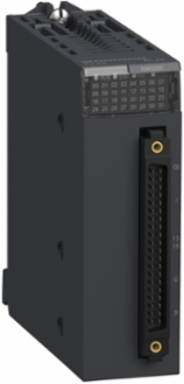

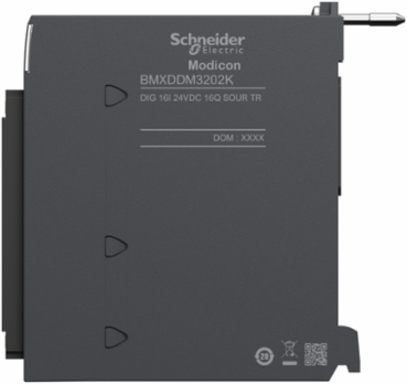

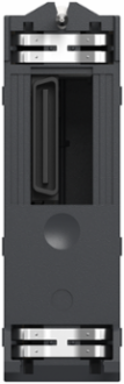

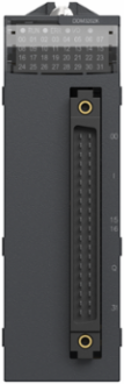

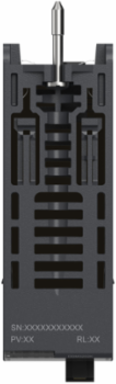

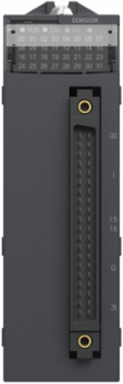

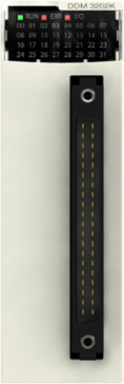

Schneider Electric BMXDDM3202K Discrete I/O Module, 16 Inputs, 16 Outputs, 24V DC Positive, IP20

  • MPN: BMXDDM3202K
  • PPN: SCH-BMXDDM3202K
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1250.94

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete I/O module has 16 input channels, 16 solid state output channels. It is a discrete I/O module with a discrete input/output voltage of 24V DC, an output current of 0.1A, a maximum power dissipation of 4W and current consumption of 104mA at 24V DC, 166mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It offers 432904 hours of MTBF. It is an IP20 rated product. It weighs 0.11kg. It is suitable for medium to large process applications. This product is certified by Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France

    Complementary Attributes

    Maximum Voltage Drop
    <1.5 V at state 1, <1.5 V at state 1<1.5 V at state 1, <1.5 V at state 1
    Maximum Current Per Module
    3.2 A
    Dc Maximum Filtering Time7 ms
    Maximum Overload Time15 ms

    Important Information Attributes

    Persona Type Ids
    EU, OM8, SI
    Current Consumption
    <= 104 mA 24 V DC, <= 104 mA 24 V DC, <= 104 mA 24 V DC, <= 166 mA 3.3 V DC, <= 166 mA 3.3 V DC, <= 166 mA 3.3 V DC<= 104 mA 24 V DC, <= 104 mA 24 V DC, <= 104 mA 24 V DC, <= 166 mA 3.3 V DC, <= 166 mA 3.3 V DC
    Insulation Resistance
    > 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
    Protection Type
    1 external fuse per group of input channel 0.5 A fast blow, overvoltage protection on output, reverse polarity protection on input, reverse polarity protection on output
    Carbon Footprint Of The Distribution Phase [A4]
    0.0175223273, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.0356813576, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    21 kg CO2 eq., 20.5516634815
    Local Publishable Date
    2026-01-23
    Stocking Flag
    N
    Device Type
    PLC System - PLC Component
    Traceability
    Yes
    Average Life Duration
    20 year(s)
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    Yes
    Tier Id
    2
    Function Option Id
    STANDARD
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    Dc Maximum Filtering Time
    7 ms
    Mtbf Reliability
    430000 H
    Product Or Component Type
    discrete I/O module
    Range Of Product
    Modicon X80
    Reverse Polarity Protection
    reverse mounted diode
    Sustainable Packaging
    Yes
    Total Lifecycle Carbon Footprint
    38 kg CO2 eq.
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
    Functional-unit Unit
    Unit
    Energy Consumption On Product Lifetime, In Kwh
    31.5215
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
    Dielectric Strength1500 V AC 50/60 Hz 1 minute, output/ground, 1500 V AC 50/60 Hz 1 minute, output/internal logic, 1500 V AC 50/60 Hz 1 minute, primary/secondary, 500 V DC 1 minute, between group of inputs and outputs
    Load Impedance Ohmic<= 220 Ohm, <= 220 Ohm
    Voltage Detection Threshold< 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC preactuator OK, > 18 V DC preactuator OK, > 18 V DC preactuator OK, > 18 V DC preactuator OK, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK< 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC preactuator fault, < 14 V DC sensor fault, > 18 V DC preactuator OK, > 18 V DC preactuator OK
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.2377728485
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]17 kg CO2 eq., 17.1211393939
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2311046EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date2438
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier2
    Function OptionStandard
    Market SegmentationIndustrial
    Current Per Channel0.125 A
    Dc Typical Filtering Time4 ms
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective Treatmentstandard version
    ReturnabilityYes
    Software Versionv5.9.4
    Switching Frequency0.5/LI² Hz
    Pep CodeENVPEP2311046EN
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
    Recyclability Potential, In %3
    Package Weight(Lbs)136.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Directives
    2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI2311046EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP2311046EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint37.9637794088
    Environmental DisclosureENVPEP2311046EN
    Ip Degree Of ProtectionIP20
    Packaging Without Single Use PlasticYes
    Relative Humidity5-95 % 55-55 °C without condensation
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    discrete I/O module
    Range Of ProductModicon X80

    ETIM

    ETIM 8
    EC001419
    ETIM 9EC001419

    Output Attributes

    Paralleling Of Outputs
    yes : 3 maximum
    Response Time On Output1.2 ms

    Surge Protection And Filtering Attributes

    Dc Typical Filtering Time
    4 ms

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Discrete Input Number
    16
    Input Impedance9600 Ohm

    Accessories
