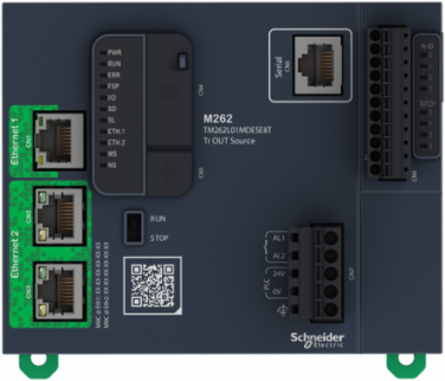

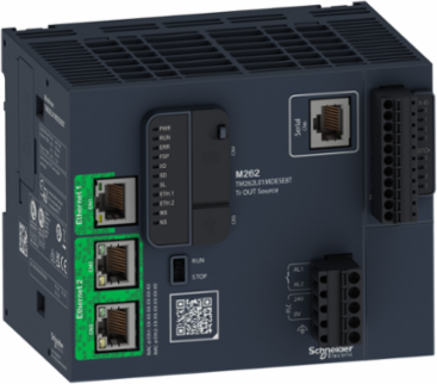

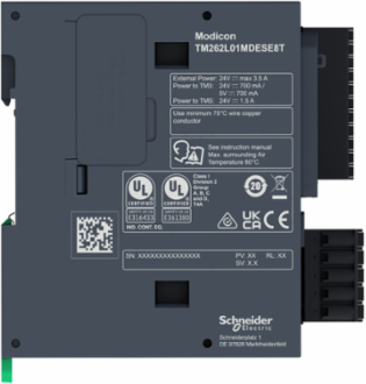

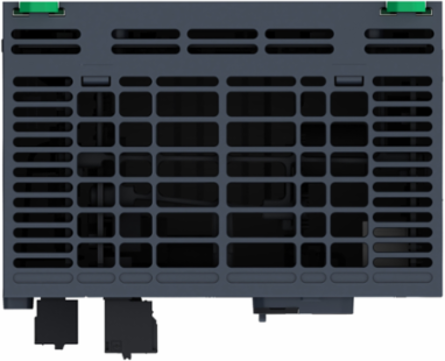

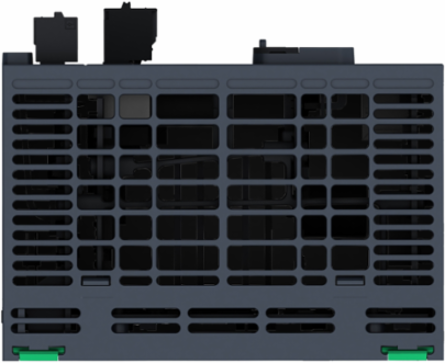

Schneider Electric TM262L01MDESE8T Modicon M262 PAC Controller, 24V DC, 0.655 kg, IP20
- MPN: TM262L01MDESE8T
- PPN: SCH-TM262L01MDESE8T
CAD
$1391.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Modicon M262 distributed PAC module is part of the EcoStructure Automation Expert hardware controller range. It is an optimised dPAC controller that supports Modicon TM3 I/O catalog. The controller carries up to 448 discrete I/O channels, 112 analog I/O channels and 14 (7 local + 7 remote) Modicon TM3 bus expansion modules. Modicon M262 dPAC is the controller for medium size machines and distributed processes. It embeds both OPC UA client and server to ease its vertical and horizontal integration in the architectures. It is powered with a non-isolated 24V DC power supply, has a built-in overload protection, embeds a dual-core processor and a 256MB memory capacity, and reaches a 5ns per instruction performance. This logic controller has two communication buses (Ethernet TCP/IP and Serial), one I/O bus, and one I/O port. It weighs 0.655kg (1.444lb). Certified with CE, cULus HazLoc, RCM. Conform to IEC/EN 61131-2, UL 61010-1, UL 61010-2-201, ANSI/ISA 12.12.01-2007, CSA C22.2 No.213. This controller supports Modicon TM3 I/O expansion modules. Modicon M262 logic controller installs on 35mm DIN rail with Clip-on locks.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia
Depth90 mm
Communications & Management Attributes
- Communication Port Protocol
- EtherNet/IP scannerModbus TCP client/server, Modbus TCP IO scanner, Modbus SL client/server
Communication ServiceOPC UA server (Encrypt), HTTPs Methods (API), NTP client
Complementary Attributes
- Integrated Connection Type
- Ethernet 1 RJ45 10/100BASE-T, Ethernet 2 2 RJ45 100/1000BASE-Tserial link RJ45 RS232/RS485, TM3 IO bus
- Maximum Cable Distance Between Devices
- shielded cable <30 m RS485 linkshielded cable <15 m RS232
Maximum Number Of Connected DevicesEtherNet/IP: 64, Modbus TCP: 64Modbus TCP/EtherNet/IP: 96
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Clock Drift
- <= 10 s/month 25-25 °C, <= 10 s/month 25-25 °C<= 10 s/month 25-25 °C, <= 10 s/month 25-25 °C
- Electromagnetic Emission
- conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011, radiated emissions 40 dBµV/m30-230 kHz IEC 55011conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011, radiated emissions230-1000 MHz IEC 55011
- Local Signalling
- 1 LED (green/red) for PWR, 1 LED (green/red) for RUN, 1 LED (green/red) for ERROR (fault), 1 LED (green/red) for stop forced, 1 LED (green/red) for I/O error (I/O)1 LED (green/orange) for SD card activity, 1 LED (green/orange) for SL activity, 1 LED (green/red) for ETH1 state, 1 LED (green/red) for ETH2 state, 1 LED (green/red) for EIP MS, 1 LED (green/red) for EIP NS
- Resistance To Conducted Disturbances
- 10 V 0.15...80 MHz IEC 61000-4-43 V 0.1...80 MHz, 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)
- Vibration Resistance
- 1 gn 8.4-200 Hz panel mounting3.5 mm 2-8.4 Hz symmetrical rail1 gn 8.4-200 Hz symmetrical rail, 3.5 mm 2-8.4 Hz panel mounting
- Maximum Number Of I/O Expansion Module
- 7 TM3 IO module (local I/O-Architecture), 7 TM3 IO module (remote I/O-Architecture)
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4306905797, 0.4 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 19 kg CO2 eq., 18.8591002415
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1904006EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2229
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Data Backed Up
- 1 GB built-in flash memory backup of user programs
- Overvoltage Protection
- with
- Inrush Current
- 40 A
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- EcoStruxure Automation Expert
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz IEC 61000-4-33 V/m 1.4 GHz...2 GHz IEC 61000-4-31 V/m 2 GHz...3 GHz IEC 61000-4-3
- Returnability
- Yes
- Software Version
- EIME v5.8.1
- Sustainable Packaging
- Yes
- Transmission Rate
- 57.6 kbit/s 15-15 m RS48557.6 kbit/s 3-3 m RS23210/100 Mbit/s Ethernet110/100/1000 Mbit/s Ethernet2
- Pep Code
- ENVPEP1904006EN
- Pep Verification Date
- 2021-10-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- For logic control of multiple input and output arrangements (TM262L) and for motion control of up to 16 synchronized axes, embedding a safety control application capable of attaining SIL3 (TM262M) 100% of the time for 10 years.
- Energy Consumption On Product Lifetime In Kwh
- 2426.52
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- Width Nominal
- 125 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 3019.3
- Customs Code
- 8537109170
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electrical Connectionremovable spring terminal block for inputs and outputs, removable spring terminal block for connecting the 24 V DC power supply
Insulationbetween supply and internal logic 500 V AC, non-insulated between supply and ground

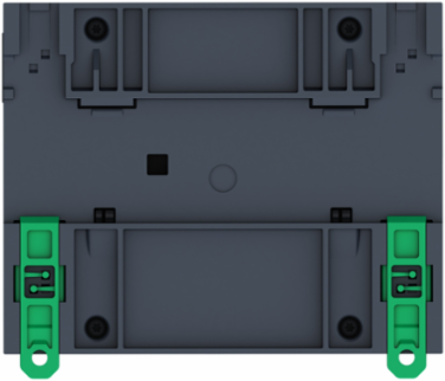

Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Resistance To Fast Transients2 kV IEC 61000-4-4 power lines)1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link), 1 kV IEC 61000-4-4 input), 1 kV IEC 61000-4-4 transistor output)
Certificate AgencyCE, cULus, cULus HazLoc Class I Division 2 CSA 22-2 No 213, RCM
Carbon Footprint Of The Distribution Phase [A4]0.1077331522, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0087052784
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 189 kg CO2 eq., 1188.8920289855
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC CPU
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Execution Time For 1 Kinstruction0.005 ms
Immunity To Microbreaks0.01 ms
Power Consumption In W82 W
Product Or Component TypedPAC module
Realtime Clockwith
Resistance To Electrostatic Discharge4 kV on contact IEC 61000-4-28 kV on air IEC 61000-4-2
Shock Resistance15 gn 11 ms
Supply Voltage Limits20.4-28.8 V DC
Total Lifecycle Carbon Footprint1 208 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: Indonesia
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal100 mm
[Us] Rated Supply Voltage24 V DC - 15...20 %
Package Weight(Lbs)836.000 g
Warranty (In Months)18
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]3019.3
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-60 °C horizontal installation), -20-60 °C horizontal installation), -20-50 °C vertical installation), -20-50 °C vertical installation), -20-45 °C flat mounting), -20-45 °C flat mounting)-20-60 °C horizontal installation), -20-60 °C horizontal installation), -20-50 °C vertical installation), -20-45 °C flat mounting)
- Relative Humidity
- 5-95 %, without condensation in operation), 5-95 %, without condensation in storage)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1904006EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Storage Altitude
- 0-3000 m
- Pep Verification Date
- 2021-10-01
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint1208.2982582373
Environmental DisclosureENVPEP1904006EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1904006EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- dPAC module
Range Of ProductEcoStruxure Automation Expert
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV power lines (DC) common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 0.5 kV relay output differential mode IEC 61000-4-5, 1 kV input common mode IEC 61000-4-5, 1 kV transistor output common mode IEC 61000-4-5
