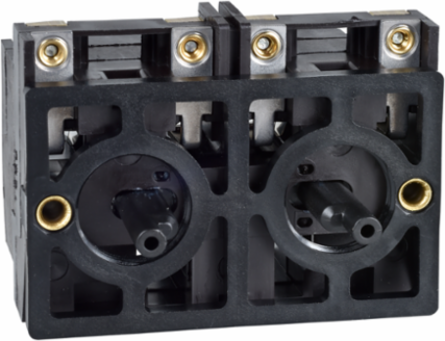

Schneider Electric XESD1291 Harmony XAC Double Contact Block 2 Speed, 2NO+1 CO, IP20 Protection
- MPN: XESD1291
- PPN: SCH-XESD1291
CAD
$202.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XAC, contact block uses screw-clamp terminals and has 2 x NO + 1 changeover contact SPDT single pole double throw. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XACM and XACB pendant control stations and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It has clear labelling of the contact wiring and terminals names on the side of the block. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Documentation & Downloads
Specifications
Key Specifications
- Mounting Of Block
- front mounting
- Contact Block Type
- double
- Contact Block Application
- 2-speed
- Contacts Type And Composition
- 2 NO + 1 C/O
- Mechanical Interlocking
- with mechanical interlocking
- Type Of Operator
- 2 spring return
- Product Compatibility
- XACB
Range Of ProductHarmony XAC
Product Or Component Typecontact block
Component NameXESD
Contact Operationsnap action || staggered
Poles Description2-pole
Electrical Circuit Typepower circuit
Complementary
- Terminal Identifier
- (13-14)NO || (11-12)NC
- Terminals Description Iso N°1
- (13-14)NO || B || (23-24)NO || (51-52-54)OC
- [Ithe] Conventional Enclosed Thermal Current
- 12 A
- Net Weight
- 0.19 kg
- Electrical Durability
- 300000 cycles AC-3, 2200 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 300000 cycles AC-3, 2200 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 300000 cycles AC-4, 2200 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 300000 cycles AC-4, 2200 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 500000 cycles AC-3, 1500 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 500000 cycles AC-4, 1500 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 800000 cycles AC-3, 1500 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 800000 cycles AC-4, 1500 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A
- [Ui] Rated Insulation Voltage
- 600 VCSA
- Rated Power In Hp
- 2 hp 240 V, CSA || 3 hp 600 V, CSA || 5 hp 400 V, CSA
- Rated Operational Power In W
- 2200 W AC-3 240 V IEC 60947-3 appendix A || 2200 W AC-4 400 V IEC 60947-3 appendix A
Terminals Description Iso N°2B || (43-44)NO || (61-62-64)OC || (33-34)NO
Horizontal Fixing Centres40 mm
Short-Circuit Protection10 A fuse protection cartridge aM
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Connections - Terminalsscrew clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
Mechanical Durability500000 cycles || 1000000 cycles
Operating Force17 N
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 100 gn IEC 60068-2-27
- Ambient Air Temperature For Storage
- -40-70 °C
StandardsIEC 60947-3 || CSA C22.2 No 14 || EN 60947-3
Vibration Resistance15 gn 10-500 Hz)IEC 60068-2-6
Electrical Shock Protection Classclass II IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
