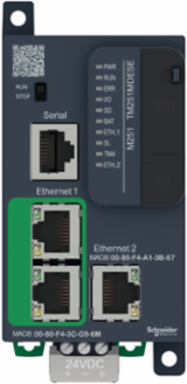

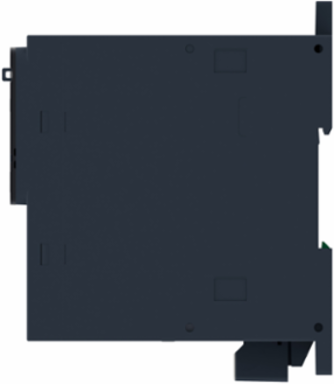

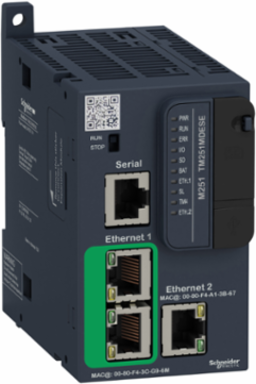

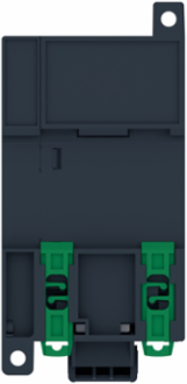

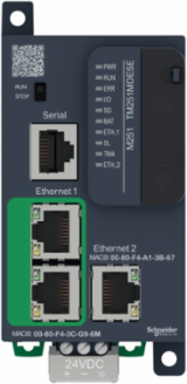

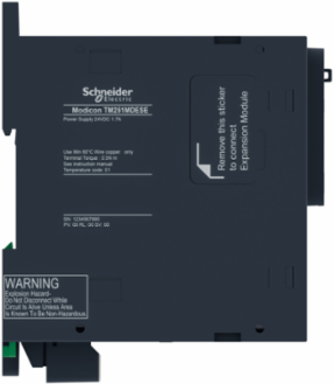

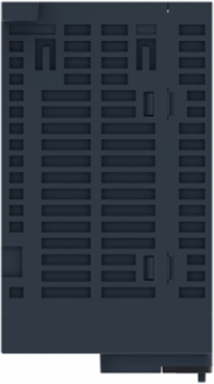

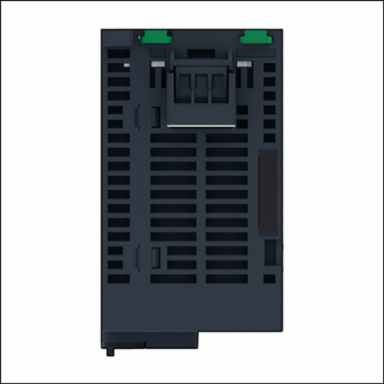

Schneider Electric TM251MDESE Modicon M251 dPAC Controller, 0.85kg, 64MB RAM, 488 Discrete I/O Channels
- MPN: TM251MDESE
- PPN: SCH-TM251MDESE
CAD
$834.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Modicon M251 dPAC is part of the EcoStructure Automation Expert hardware controller range. It is an optimised dPAC controller that supports Modicon TM3 I/O catalog. The controller carries up to 488 discrete I/O channels, 114 analog I/O channels and 14 (7 local + 7 remote) Modicon TM3 expansion modules. It is a cost-optimized, low-footprint distributed controller based on the machine-specialized Modicon M251 PAC platform. It includes a 1GB/s Ethernet port, a dual port Ethernet field bus and supports Modbus/TCP, OPC UA and auto discovery. The controler is compatible with most Modicon TM3 I/O. It weighs 0.85kg (1.9lb). EcoStruxure Automation Expert is a new category of software defined automation, enabling next generation integrated architectures and Industry 4.0 solutions. It complies with IEC/EN 61131-2 (Edition 2 2007), UL508 (UL61010-2-201), ANSI/ISA 12.12.01-2007, CSA C22.2 No. 213, No. 142, E61131-2 and IACS E10 standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Philippines
Depth90 mm
Communications & Management Attributes
- Communication Service
- Modbus TCP client, Modbus TCP server, OPC UA server, NTP client
Complementary Attributes
- Integrated Connection Type
- USB port mini B USB 2.0, non isolated serial link serial RJ45 RS232/RS485, dual-port Ethernet 1 2 RJ45, Ethernet port Ethernet 2 RJ45
Important Information Attributes
- Clock Drift
- <= 60 s/month -10-50 °C, <= 60 s/month -10-50 °C<= 60 s/month -10-50 °C, <= 60 s/month -10-50 °C
- Electromagnetic Emission
- conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 61000-6-4, conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 61000-6-4, radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 61000-6-4, conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 61000-6-4, radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz IEC 61000-6-4
- Mounting Support
- top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz EN/IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz EN/IEC 61000-4-3, 1 V/m 2 GHz...3 GHz EN/IEC 61000-4-3
- Resistance To Fast Transients
- 2 kV EN/IEC 61000-4-4 power lines), 1 kV EN/IEC 61000-4-4 Ethernet line), 1 kV EN/IEC 61000-4-4 serial link)
- Certificate Agency
- cULus, CSA, RCM, CE, Achilles, UKCA
- Carbon Footprint Of The Distribution Phase [A4]
- 1.9799277850166308, 2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.02014583954585999, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 676 kg CO2 eq., 676.3289711229976
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC CPU
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Electrical Connection
- removable screw terminal block power supply pitch 3.81 mm)
- Marking
- CE
- Port Ethernet
- Ethernet 10BASE-T/100BASE-TX - 2 copper cable
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Modicon M251
- Returnability
- Yes
- Software Version
- v6.2.2
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To perform control for applications, Increase flexibility, while saving space for modular and distributed architectures 100% of the time for 10 years.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime, In Kwh
- 946.08
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; China, CN
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; China, CN
- Height Nominal
- 90 mm
- [Us] Rated Supply Voltage
- 24 V DC
- Package Weight(Lbs)
- 372.000 g
- Warranty (In Months)
- 18
Data Storage Equipment<= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)<= 16 GB SD card optional), <= 16 GB SD card optional), <= 16 GB SD card optional)
Local Signalling1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (red) for I/O error (I/O), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL, 1 LED (red) for bus fault on TM4 (TM4)
Resistance To Conducted Disturbances10 V 80...1000 MHz EN/IEC 61000-4-3, 3 V 1.4 GHz...2 GHz EN/IEC 61000-4-3, 1 V 2 GHz...3 GHz EN/IEC 61000-4-3
Resistance To Electrostatic Discharge8 kV in air EN/IEC 61000-4-2, 4 kV on contact EN/IEC 61000-4-2
Vibration Resistance3.5 mm 5-8.4 Hz symmetrical rail, 1 gn 8.4-150 Hz symmetrical rail, 3 gn 8.7-150 Hz panel mounting
Maximum Number Of I/O Expansion Module7 (local I/O-Architecture), 14 (remote I/O-Architecture)
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.7 kg CO2 eq., 0.7043969702190856
Carbon Footprint Of The Manufacturing Phase [A1 To A3]17 kg CO2 eq., 16.85464764538549
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1401009EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2015
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Data Backed Up128 MB built-in flash memory backup of user programs
Immunity To Microbreaks10 ms
Memory Capacity64 MB system memory RAM
Power Consumption In W45-45 W with max number of I/O expansion module)
Product Or Component Typeprocessor module
Realtime Clockwith
Shock Resistance15 gn 11 ms
Supply Voltage Limits19.2-28.8 V
Total Lifecycle Carbon Footprint696 kg CO2 eq.
Pep CodeENVPEP1401009EN
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; China, CN
Recyclability Potential, In %10
Width Nominal54 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation), -10-55 °C horizontal installation)-10-35 °C vertical installation), -10-35 °C vertical installation), -10-55 °C horizontal installation)
- Relative Humidity
- 10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1401009EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Storage Altitude
- 0-3000 m
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint695.8880893631647
Environmental DisclosureENVPEP1401009EN
Ip Degree Of ProtectionIP20 with protective cover in place
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1401009EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- processor module
Range Of ProductModicon M251
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV shielded cable common mode EN/IEC 61000-4-5, 1 kV power lines common mode EN/IEC 61000-4-5, 0.5 kV power lines differential mode EN/IEC 61000-4-5
Batteries & Runtime Attributes
- Battery Type
- BR2032 lithium non-rechargeable 4 year(s)
