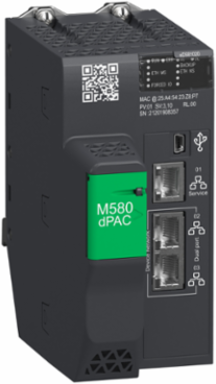

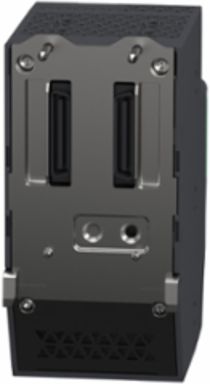

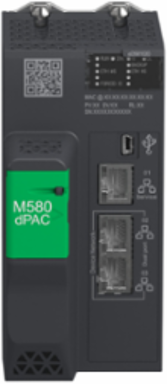

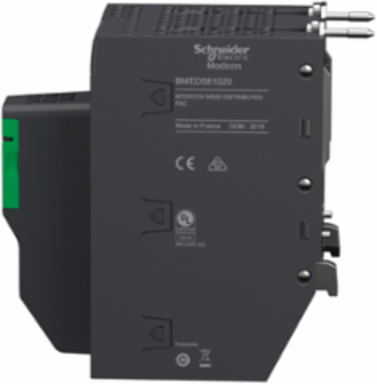

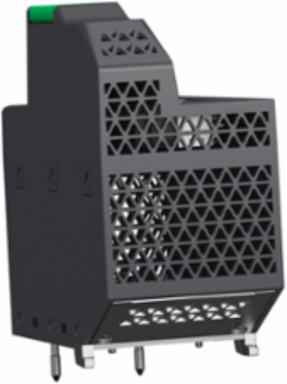

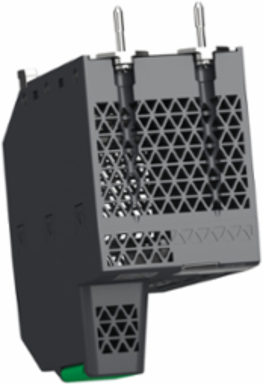

Schneider Electric BMED581020 Modicon M580 dPAC Controller, 1024 Discrete I/O, 64MB RAM
- MPN: BMED581020
- PPN: SCH-BMED581020
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

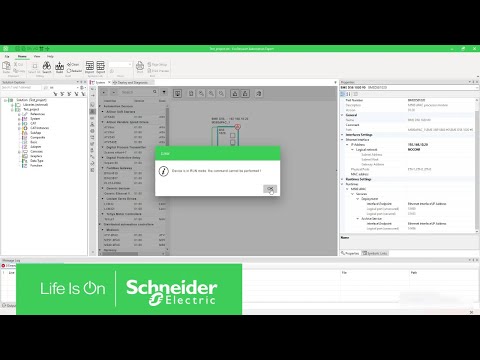

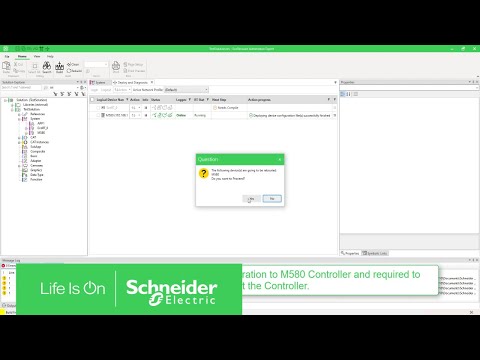

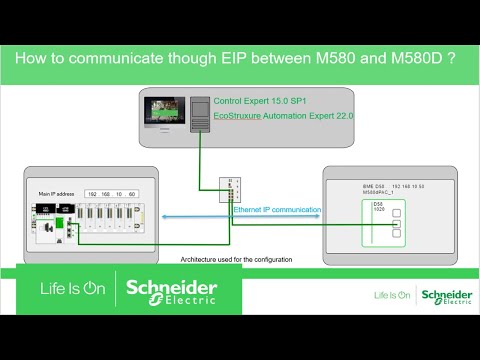

The Modicon M580 dPAC is part of the EcoStructure Automation Expert hardware controller range. It is a high performance dPAC controller that supports the Modicon X80 I/O catalog. The controller supports up to 1024 discrete I/O channels, 256 analogue I/O channels and 4 local racks of Modicon X80 I/O. It is a high-performance, IEC 61499 compliant field controller based on the widely successful Modicon M580 ePAC. It includes 64MB ECC RAM for programs and data and supports Modbus/TCP, Ethernet/IP and OPC UA and auto discovery. The controler is compatible with most Modicon X80 racks, power supplies and I/O. It weighs 0.85kg (1.9lb). EcoStruxure Automation Expert is a new category of software defined automation, enabling next generation integrated architectures and Industry 4.0 solutions. It complies with IEC/EN 61131-2 and IEC/EN/UL/CSA 61010-2-201, IEC/EN 61000-6-5, IEC/EN 61850-3, EN 50155/IEC 60571, CE ATEX (2014/34/EU), 2014/35/EU, 2014/30/EU and 2006/42/EC standards.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Complementary Attributes
- Integrated Connection Type
- 1 Ethernet TCP/IP service port, 2 Ethernet TCP/IP device network
Important Information Attributes
- Status Led
- 1 LED (Green) processor running (RUN), 1 LED (Red) processor or system fault (ERR), 1 LED (Red) I/O module fault (I/O), 1 LED (Green) download in progress (DL), 1 LED (Red) I/O values overrided by user (FORCED IO), 1 LED (green/red) ETH MS (Ethernet port configuration status), 1 LED (green/red) Eth NS (Ethernet network status)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1161232394, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0032897535
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 181 kg CO2 eq., 180.84
- Local Publishable Date
- 2026-02-07
- Stocking Flag
- N
- Device Type
- PLC System - PLC CPU
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1312016EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2049
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Current Consumption
- 295 mA 24 V DC
- Marking
- CE
- Mtbf Reliability
- 600000 H
- Number Of Racks
- 4
- Product Or Component Type
- processor module
- Returnability
- Yes
- Software Version
- EIME v5.8.1
- Sustainable Packaging
- No
- Vibration Resistance
- 3 gn
- Database Version
- 2020-12
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: France
- Energy Model - Use [B6]
- Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH
- Analogue I/O Processor Capacity
- 64 I/O
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Air Pollution (M3) Operational Energy Use [B6]
- 12617
- Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
- 180.84
- Net Use Of Fresh Water (M3) Operational Energy Use [B6]
- 2165.2
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 4440.7
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 693.07
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 693.07
Certificate AgencyCE, UL, CSA, EAC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3801443662, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]66 kg CO2 eq., 65.9471830986
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Use Carbon Footprint180.84
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Product Kit IdentifierN
Environmental Characteristichazardous location class I division 2
Memory Descriptionintegrated RAM, 64 MB program and data
Number Of Distributed Equipment64
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductModicon M580
Shock Resistance30 gn
Supplyinternal power supply via rack
Total Lifecycle Carbon Footprint247 kg CO2 eq.
Pep CodeENVPEP1312016EN
Pep Verification Date2022-12-01
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionThe Modicon M580 ePAC module provides cutting-edge features and high-end performances for small to large process automation for 10 years with a 100% use rate. Typical electrical power is 7,08 W (295 mA at 24 V DC)
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh558.1872
Energy Model - Installation [A5]Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH
Energy Model - End Of Life [C1-c4]Electricity grid mix; AC; consumption mix, at consumer; 230V; FR / Electricity mix; AC; consumption mix, at consumer; 120V; US / Electricity grid mix; AC; consumption mix, at consumer; 230V; CH
Discrete I/O Processor Capacity1024 I/O
Package Weight(Lbs)875.000 g
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]2114.6
Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]3.5152
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]199
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]5133.8
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]4440.7
Water Pollution (M3) Operational Energy Use [B6]8919.5
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Operating Altitude
- 0...6561.68 ft (0...2000 m), 2000...5000 m with derating factor
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-60 °C
- Environmental Disclosure
- ENVPEP1312016EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Pep Verification Date
- 2022-12-01
- Type Of Verification For The Pep
- Independent external review
Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility, 2006/42/EC - machinery
Take BackNo
China Rohs RegulationX
Carbon Footprint247.2867404577
Circularity ProfileENVEOLI1312016EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1312016EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Product Or Component Type
- processor module
Range Of ProductModicon M580
ETIM
- ETIM 8
- EC000236
