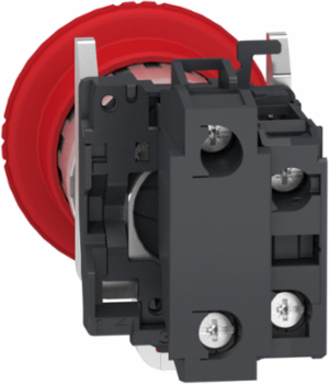

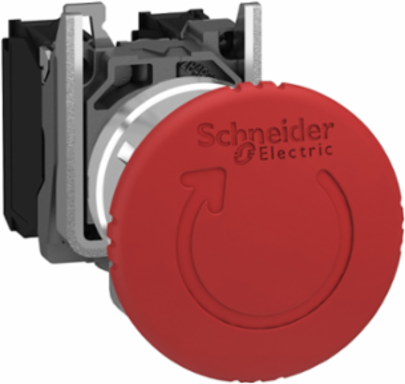

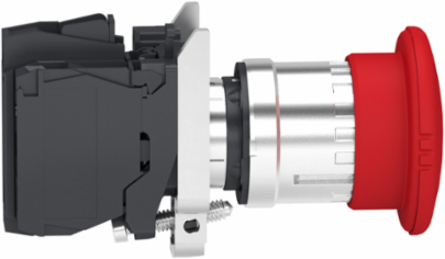

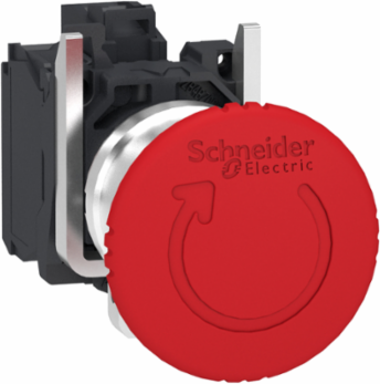

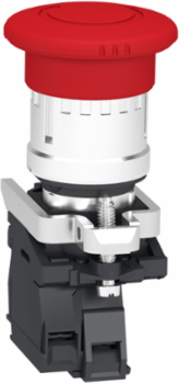

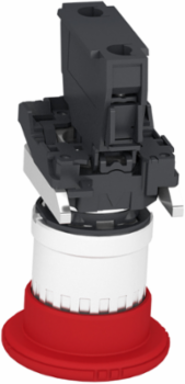

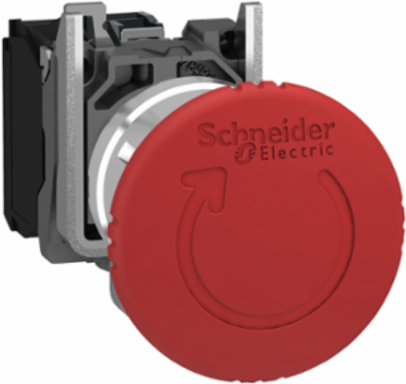

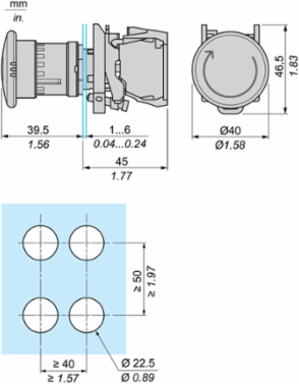

Schneider Electric XB4BS84462 Emergency stop switching off, Harmony XB4, metal, red mushroom 40mm, 22mm, trigger latching turn to release, 2NC with monitoring
Schneider Electric XB4BS84462 Emergency stop switching off, Harmony XB4, metal, red mushroom 40mm, 22mm, trigger latching turn to release, 2NC with monitoring
- MPN: XB4BS84462
- PPN: SCH-XB4BS84462
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$184.51/ EA
Description
This product is part of the Harmony XB4 range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights. This red Emergency stop pushbutton comes with a mushroom head. It operates with a turn to release mechanism. This mushroom headed pushbutton provides an ergonomic interface for controlling/stopping machines. It comes with 1 NC and 1 NC monitoring contact with slow break operation. It is clearly distinguishable visually at a distance due to a clear color and a prominent mushroom shape. It has a chromium plated metal bezal and has a 40mm diameter mushroom head. It is an IP66, IP67, IP69 and IP69K rated product and comes with CE, CCC, UKCA, EAC, UL and CSA certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use.
Specifications
Physical Attributes
- Cap Operator Or Lens Color
- red
Conformance Attributes
- Product Certifications
- CSA, BV, UL Listed, LROS (Lloyds register of shipping), DNV, CE, CCC, CB Scheme, UKCA, EAC
StandardsIEC 60947-1, IEC 60947-5-1, IEC 60947-5-5, IEC 60204-1, IEC 60947-5-4, IEC 60364-5-53, ISO 13850, UL 60947-5-1, CSA C22.2 No 60947-5-1, JIS C8201-1, JIS C8201-5-1, GB/T 14048.5, BS EN 60947-5-1, GOST IEC 60947-5-1
Complementary Attributes
- Ie Rated Operational Current
- 1.5 A 240 V, AC-15, B300 IEC 60947-5-1, 3 A 120 V, AC-15, B300 IEC 60947-5-1, 0.11 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
- Ui Rated Insulation Voltage
- 300 V 3)IEC 60947-1
Uimp Rated Impulse Withstand Voltage4 kV IEC 60947-1, 4 kV 86/188/EEC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contacts Material
- silver alloy (AgNi), silver alloy (AgSnO2)
- Electrical Durability
- 300000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 3 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 300000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 300000 cycles, DC-13, 0.3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 300000 cycles, DC-13, 1 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Operating Travel
- 1.5 mm NC changing electrical state), 4.3 mm total travel)
- Shape Of Screw Head
- cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Vibration Resistance
- 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
- Ie Rated Operational Current
- 1.5 A 240 V, AC-15, B300 IEC 60947-5-1, 3 A 120 V, AC-15, B300 IEC 60947-5-1, 0.11 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0 kg CO2 eq., 0.018553
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 2 kg CO2 eq., 1.6865
- Local Data Status
- Publishable
- Global Commercial Status
- Commercialised
- Return Indicator
- Y
- Stock Policy
- 2
- Legacy Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2201004EN
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 16 %
- Compatibility Code
- XB4
- Customizable
- no
- Electrical Shock Protection Class
- class I conforming to IEC 60536
- Fixing Mode
- by fixing collar 1 N.m +/- 0.2 N.m)
- Mechanical Durability
- 300000 cycles
- Operating Force
- 47 N
- Positive Opening
- with IEC 60947-5-1 appendix K
- Product Repair Index
- A
- Range Of Product
- Harmony XB4
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Software Version
- EIME v5.9.3
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Type Of Operator
- trigger action and mechanical latching
- Cap Operator Or Lens Color
- red
- Ith Conventional Free Air Thermal Current
- 6 A IEC 60947-5-1
- Warranty In Months
- 18
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Emergency stop push button which helps to shut off machinery in an emergency situation when there is a risk of injury or the workflow requires stopping. Product meets the international standards as EN/IEC 60947-1 and EN/IEC 60204 -1 during 20 years.
- Reference Lifetime In Y2
- 20
- Energy Model Installation A5 2
- Electricity mix; AC; 120V; US
- Energy Model End Of Life C1 C4 2
- Electricity mix; AC; 120V; US
- Offer Owner Code
- 190786
- Width Nominal
- 40 mm
- Hazardous Waste Disposed Of Kg Manufacturing A1 A3 2
- 2.9648
- Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2
- 24.03
- Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle2
- 0.1858
- Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2
- 23.234
- Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 2
- 0.2399
- Air Pollution M3 End Of Life C1 C4 2
- 1.5406
- Water Pollution M3 Manufacturing A1 A3 2
- 143.72
- Water Pollution M3 End Of Life C1 C4 2
- 1.7509
- Global Warming Kg Equivalent Co2 Manufacturing A1 A3 2
- 1.6865
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Contacts Usagestandard contacts, monitoring contactstandard contacts
Electrical Reliabilityλ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 3.4 mA in clean environment IEC 60947-5-4
Product Or Component Typeemergency switching off push-button, emergency stop push-button
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Connections Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.34 mm² without cable end IEC 60947-1
Carbon Footprint Of The Distribution Phase A40.020605, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.00069116, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2026-01-12
Pre Comm Date2021-12-06
Stocking FlagY
Manufacturing Carbon Footprint1.6865
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2201
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Average Percentage Of Recycled Metal Content20 %
Bezel Materialchromium plated metal
Contact Operationslow-break
Device Short NameXB4
Fixing Collar Materialzamak
Head Typestandard
Mounting Diameter22.5 mm
Operator Profilered mushroom Ø 40 mm, unmarked
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTH
Resetturn to release
Sale Per Indivisible Quantity1
Short Circuit Protection6 A cartridge fuse gG IEC 60947-5-1
Sustainable PackagingNo
Total Lifecycle Carbon Footprint2 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Repair Index Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Carbon Footprint Kg Co2 Eq Total Life Cycle1.7264
Pep CodeENVPEP2201004_V1-EN
Pep Verification Date2022-01-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourcereferent product
Product Weight In G2159.7
Energy Model Manufacturing A1 A3 2Energy model used: Pisek, Czech Republic
Energy Model Use B6 2Electricity mix; AC; 120V; US
Recyclability Potential In 259
Height Nominal47 mm
Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 218.395
Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle224.524
Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 224.216
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle223.728
Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle20.2399
Air Pollution M3 Manufacturing A1 A3 2650.65
Water Pollution M3 Total Life Cycle2148.96
Water Pollution M3 Distribution A4 23.3884
Global Warming Kg Equivalent Co2 Total Life Cycle21.7264
Environment Attributes Main
- Ip Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4X UL 50E
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-70 °C
- Circularity Profile
- ENVEOLI2201004EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2022-01-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Take BackNej
Recycled Metal Content At Cr Level20 %
Toxic Heavy Metal FreeYes
Carbon Footprint1.7264
Ambient Air Temperature For Storage-40-70 °C
Environmental DisclosureENVPEP2201004_V1-EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP2201004_V1-EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- emergency switching off push-button, emergency stop push-button
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC002034
ETIM 9EC002034
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 85 mm
Overview Attributes
- Device Presentation
- complete product
