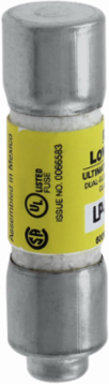

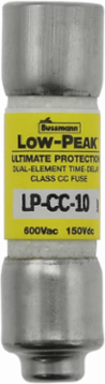

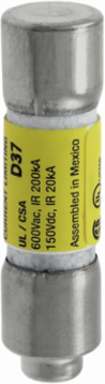

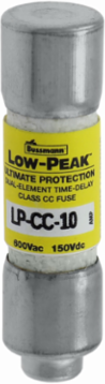

Bussmann LP-CC-10 Current-Limiting Time-Delay Fuse, 10 A, Dual, Ferrule End x Ferrule End, 200 kAIC at 600 V
- MPN: LP-CC-10
- UPC: 051712180245
- PPN: BUS-LP-CC-10
CAD
$17.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Current-Limiting Time-Delay Fuse, 10 A, Dual, Ferrule End x Ferrule End, 200 kAIC at 600 V
Features
- The Bussmann LP-CC-10 is a Class CC Low-Peak™ fuse, widely regarded as the ultimate protection for branch circuits. It is a "Current-Limiting" fuse, meaning it reacts in less than half a cycle to "clamp" short-circuit energy before it reaches its destructive peak. This superior protection is essential for preventing damage to sensitive contactors and solid-state relays in Canadian industrial control panels.
- Equipped with Time-Delay characteristics, this 10-Amp fuse is specifically designed to handle the heavy momentary surges of small motor starts and control transformer inrush. It provides a 12-second time-delay at 200% of its rated current, preventing "nuisance blowing" during normal equipment startup while still offering high-speed protection against dangerous faults.
- As a Class CC fuse, the LP-CC-10 features a unique physical rejection tip. This ensures it can only be installed in a dedicated Class CC fuse holder (like the Bussmann CHCC series), preventing the accidental installation of standard "midget" fuses that lack the high interrupting rating and current-limiting capabilities required by code for branch circuit protection.
- The LP-CC-10 is fully rated for 600V AC and has a massive 200,000 Amp Interrupting Rating (AIR). This allows it to be used safely in almost any Canadian industrial or commercial power system, regardless of the available fault current at the service entrance, ensuring your installation remains safe and fully compliant with the Canadian Electrical Code (CEC).
- The Bussmann LP-CC-10 is CSA Certified (Class 1422-02) and UL Listed. Its "Type 2" (No Damage) coordination ensures that downstream components remain operational even after a fault event, which is a key requirement for maintaining high-uptime manufacturing facilities and passing rigorous electrical inspections across Canada.
Documentation & Downloads
Specifications
Additional
- Amperage
- 10 A
- Interrupt Rating
- 200 kAIC at 600 Vac, 20 kA at 150 Vdc
- Type
- Current-limiting time-delay fuse
- Number of Elements
- Dual
- Product Width
- 0.41 in
- Product Weight
- 0.15 lb
- Connection
- Ferrule end x ferrule end
- Special Features
- Rejection style
Voltage Rating600 Vac, 150 Vdc
Response Time12 sec at 200%
ClassClass CC
Product Length1.5 in
Product Height0.41 in
MaterialMelamine tube
Fuse IndicatorNon-indicating
ComplianceCE Marked, RoHS, UL Listed, CSA Certified
